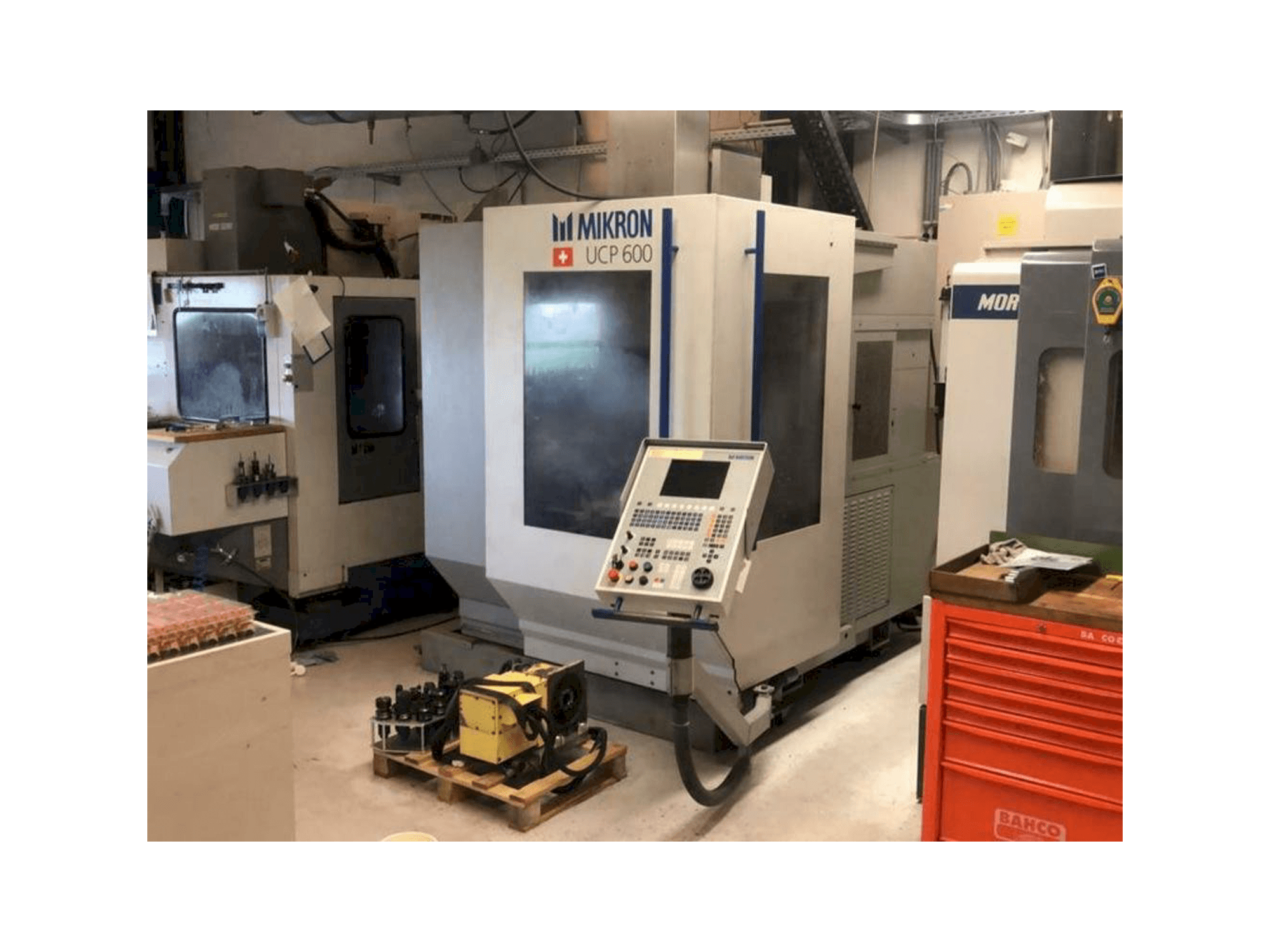

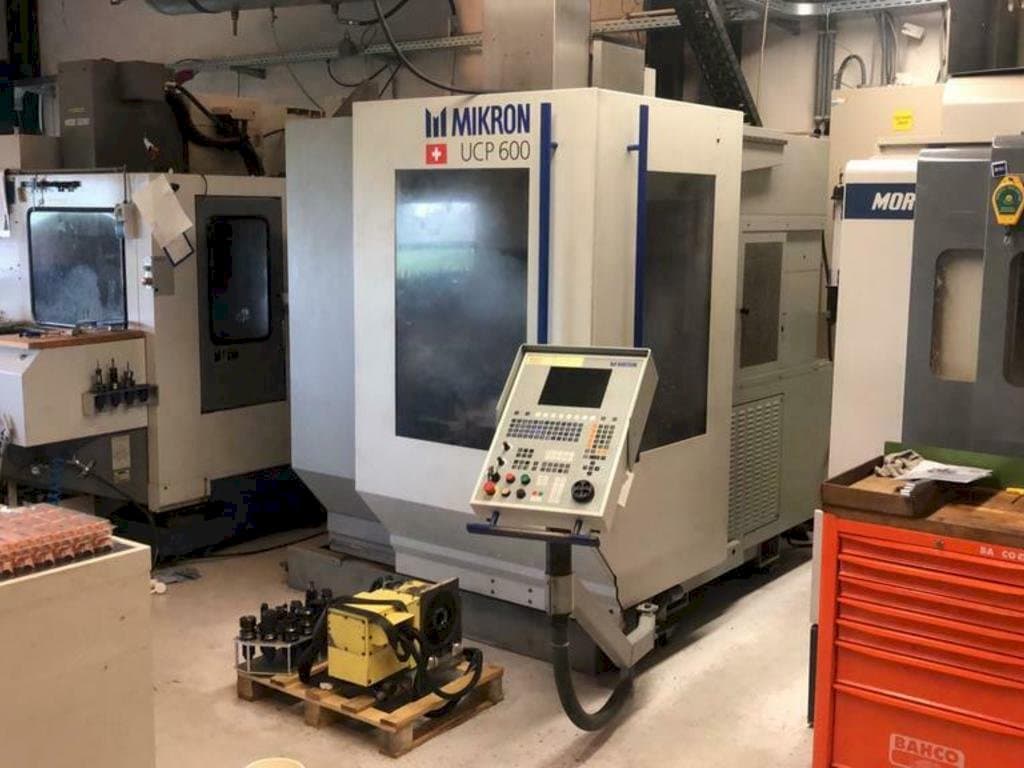

Mikron UCP600 Vertical Machine Center

Show in original language

This Mikron UCP600 Vertical Machine Center was manufactured in the year 2000. It has 13964 spindle hours. It operates through a Heidenhain 430 control. The 5 axis machine has a spindle speed up to 12000 rpm. It is under power for inspection, the machine moves smoothly and without noise, the spindle sounds like a new one, also at high speed. Additional tooling available.

Overview

brand: MIKRON
year: 2000
MODEL: UCP600
production hours: 13964
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON UCP600

General Data

Machine weight: 7500 kg

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 13 kW

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 850 mm
Outer width: 530 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axis simultaneous range 400x400x300
- - Chip transport, glass scales / encoders on all axes
- - Fast, high-precision machine, due to the construction method (epoxy granite cube frame where all rails are far apart and the rulers), it is possible to work tightly at a high speed throughout the day
- - Steptec spindle 12,000rpm sk40 13kw, spindle and electrical cabinet cooled
- - 30 tool positions
- - New tool holders included (piece or 25)
- - Machine is under power for inspection
- - Machine moves smoothly and without noise
- - Spindle sounds like a new one
- - Mills beautifully tight

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
