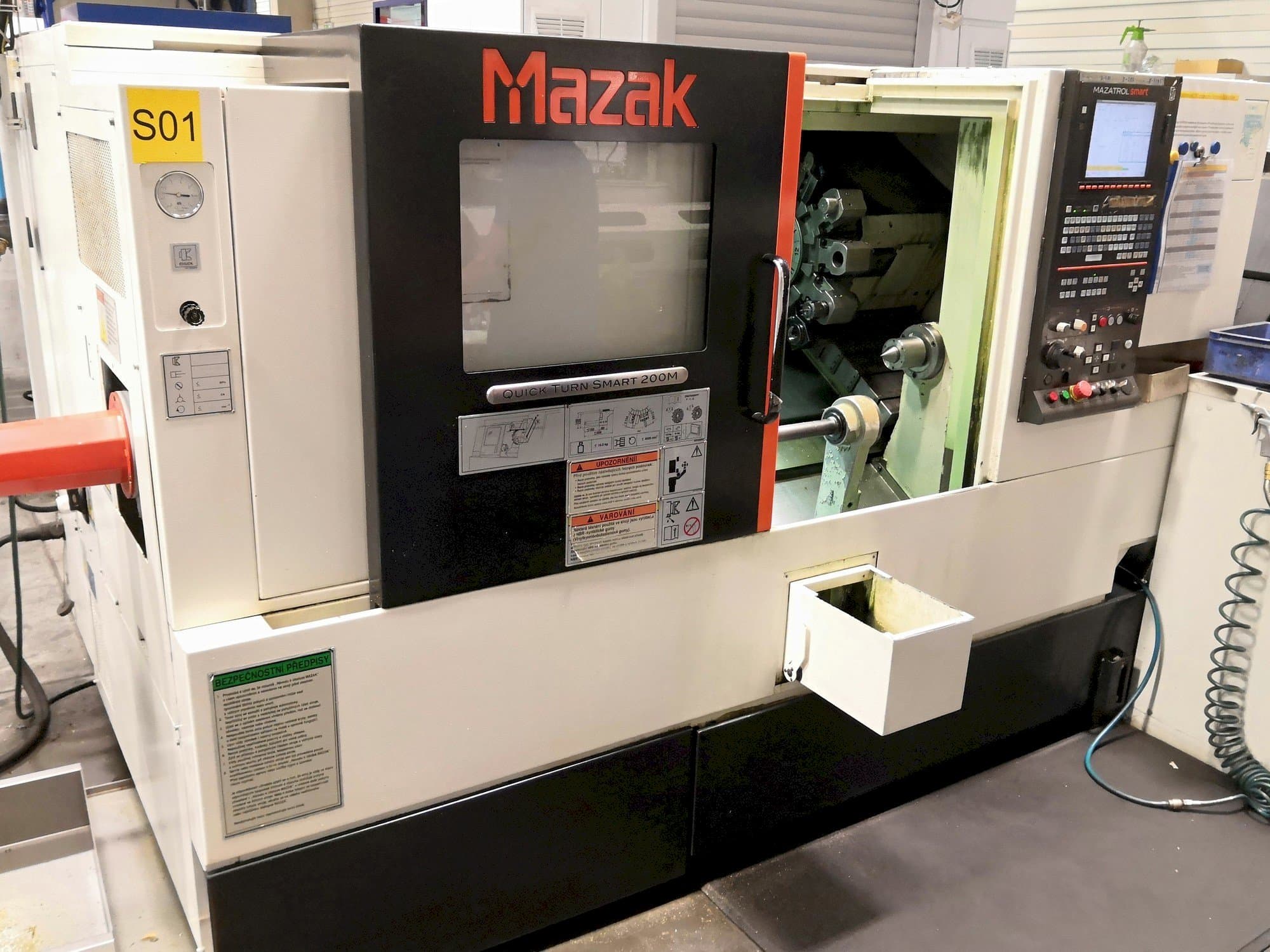

Front view of Mazak Quick Turn Smart 200M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Quick Turn Smart 200M

Photo Gallery

Mazak - Quick Turn Smart 200MCZ-TUR-MAZ-2011-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Quick Turn Smart 200M lathe

Show in original language

This Mazak Quick Turn Smart 200M lathe was built in the year 2011 and has 59398 hours, of which 15388 are cutting hours. It is equipped with a Mazak Mazatrol Smart control unit and has 3 axis. The machine has a spindle speed of 5000 rpm.

Overview

brand: Mazak
year: 2011
MODEL: Quick Turn Smart 200M
production hours: 59398
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak Quick Turn Smart 200M

General Data

Machine weight: 4610 kg

Control Unit

Model: MAZATROL SMART
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Spindle motor power: (30min/cont.) 18.5/15 kW
Spindle bore: 76 mm
Number of axis: 3

Movement

X-AXIS Movement: 225 mm
Z-AXIS Movement: 605 mm

Additional Equipment

- Barfeed Magazine SPACESAVER SS2500; Ø 6-80 mm, Max L= 1525 mm
- Set of tool holders (3pcs driven type, 6x fixed, 9x knife)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 660 mm, over cross-slide 343 mm
- - Max. Machining diameter 360 mm
- - Max. Machining length 532 mm
- - Bar capacity 65 mm
- - Rotary tool motor power (10 min) 5. 5 kw
- - Collet chuck kitagawa qcrl60a6
- - Chuck size 200 mm
- - Swarf conveyor, coolant, tailstock
- - Chuck kitagawa bb208 (w/o jaws)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
