Mazak - Quick Turn Smart 200 MGR-TUR-MAZ-2014-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Mazak Quick Turn Smart 200 M Lathe

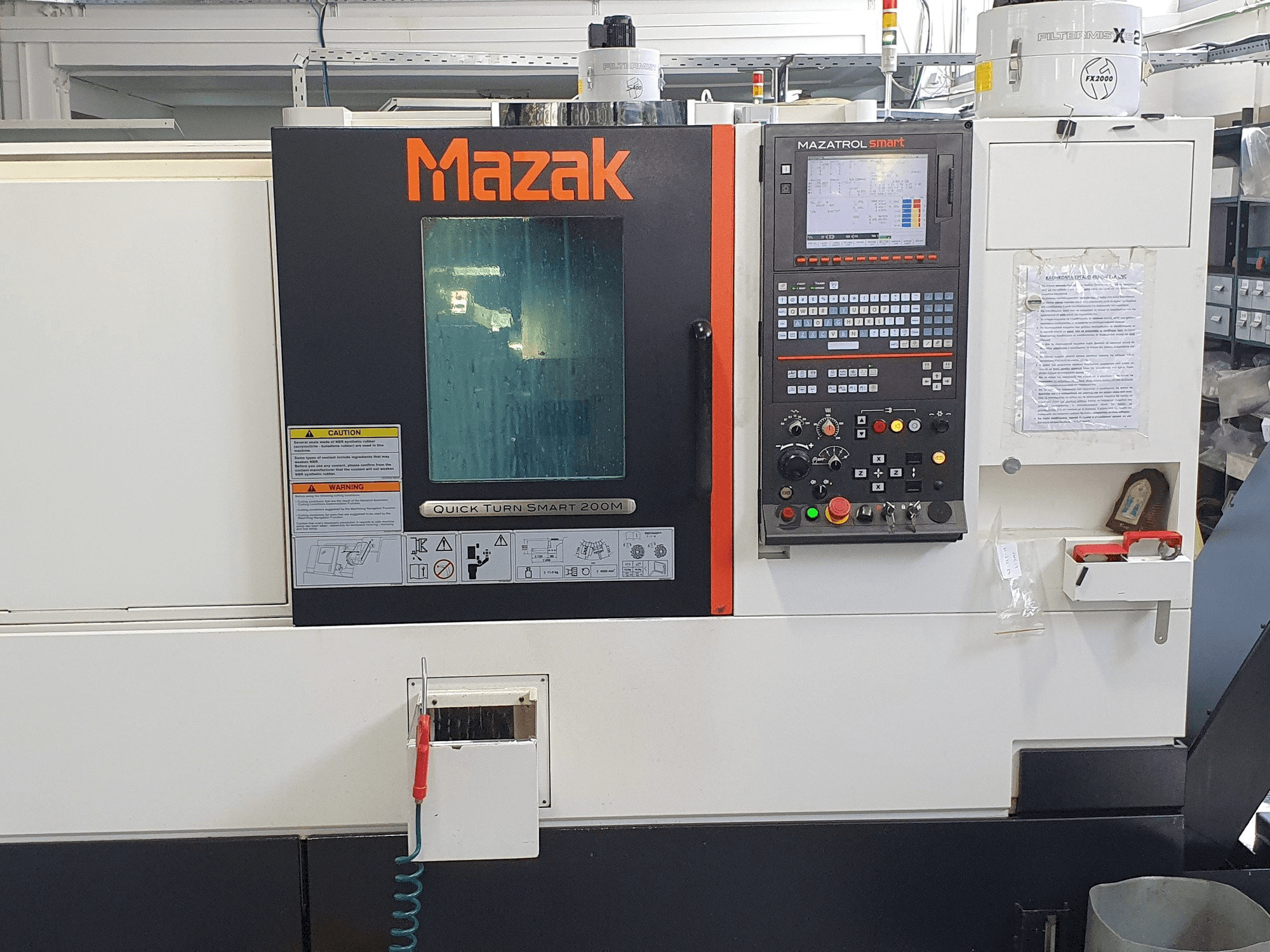

This Mazak Quick Turn Smart 200 M Lathe was built in Europe in the year 2014. It has been working for 23405 hours. It is equipped with a Mazatrol SMART control unit. This machine can work with a spindle speed range of 35 – 6000 rpm. The machine is a full equipped with options: kitagawa chuck, tool eye (automatic measurement), parts catcher, chip conveyor, synchronise tapping, milling operation in all positions, tailstock hydraulic, optional the machine has 4 live driven tools (for face and for diameter), all the diameter of protection plain tubes, navigation monitoring display, PCMCIA port, IC Port, interface for Mazatrol data transfer, and documentation. The Machine includes 8 standard toolholders and 4 driven live toolholders.
Overview
- brand: Mazak
- year: 2014
- MODEL: Quick Turn Smart 200 M
- production hours: 23405
- application type: Turning
- Location: Greece
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak Quick Turn Smart 200 M
General Data
- Measurements width: 2630 mm
- Measurements depth: 1680 mm
- Measurements height: 1850 mm
- Machine weight: 5050 kg
Control Unit
- Model: SMART
- Brand: MAZATROL
Main drive
- Spindle speed range: 35 - 6000 1/MIN
- Spindle motor power: 18,5 kW
- Spindle bore: 76 mm
Media
- Power consumption: 35 kVA
- Chip conveyor: Yes
Additional Equipment
- - includes 8 standard tool holders
- - 4 driven live tool holders
Additional Information
- Technical Machine Benefits:
- - Max. Swing diameter 660 mm
- - Max. Machining diameter 360 mm
- - Max. Machining length 500mm
- - Max. Bar material diameter 65 mm
- - Max. Torque 350 nm
- - Spindle nose a2 – 6 ''
- - Spindle indexing increments 0,001 °
- - Turret tool capacity 12
- - Rotary tools: spindle speed 120-5000 rpm, power 3,7 kw
- - Cutting feed rate: x/z-axis0 - 5. 000 mm/min, c-axis1 - 2. 000 °/min
- Qualitative Machine Benefits:
- - Cutting feed rate: x/z-axis0 - 5. 000 mm/min, c-axis1 - 2. 000 °/min
- - Tailstock: tailstock quill stroke150 mm, tailstock centermk 5, tailstock travel 400 mm
- - The machine is a full equiped with options: kitagawa chuck, tool eye (automatic measurement), parts catcher,
- - Synchronize tapping, milling operation in all positions, tailstock hydraulic, optional the machine has 4 live driven tools (for face and for diameter)
- - All the diameter of protection plain tubes
- - Navigation monitoring display
- - Pcmcia port, ic port
- - Interface for mazatrol data transfer
- - Documentation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
