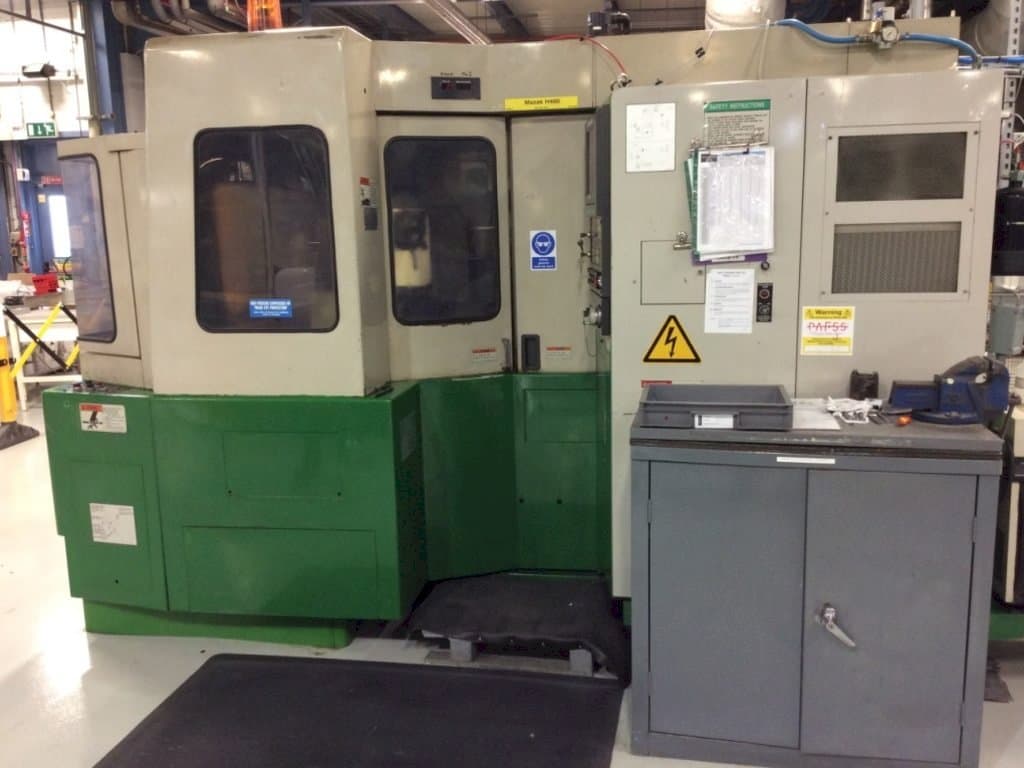

Front view of Mazak Mazatech H400 machine

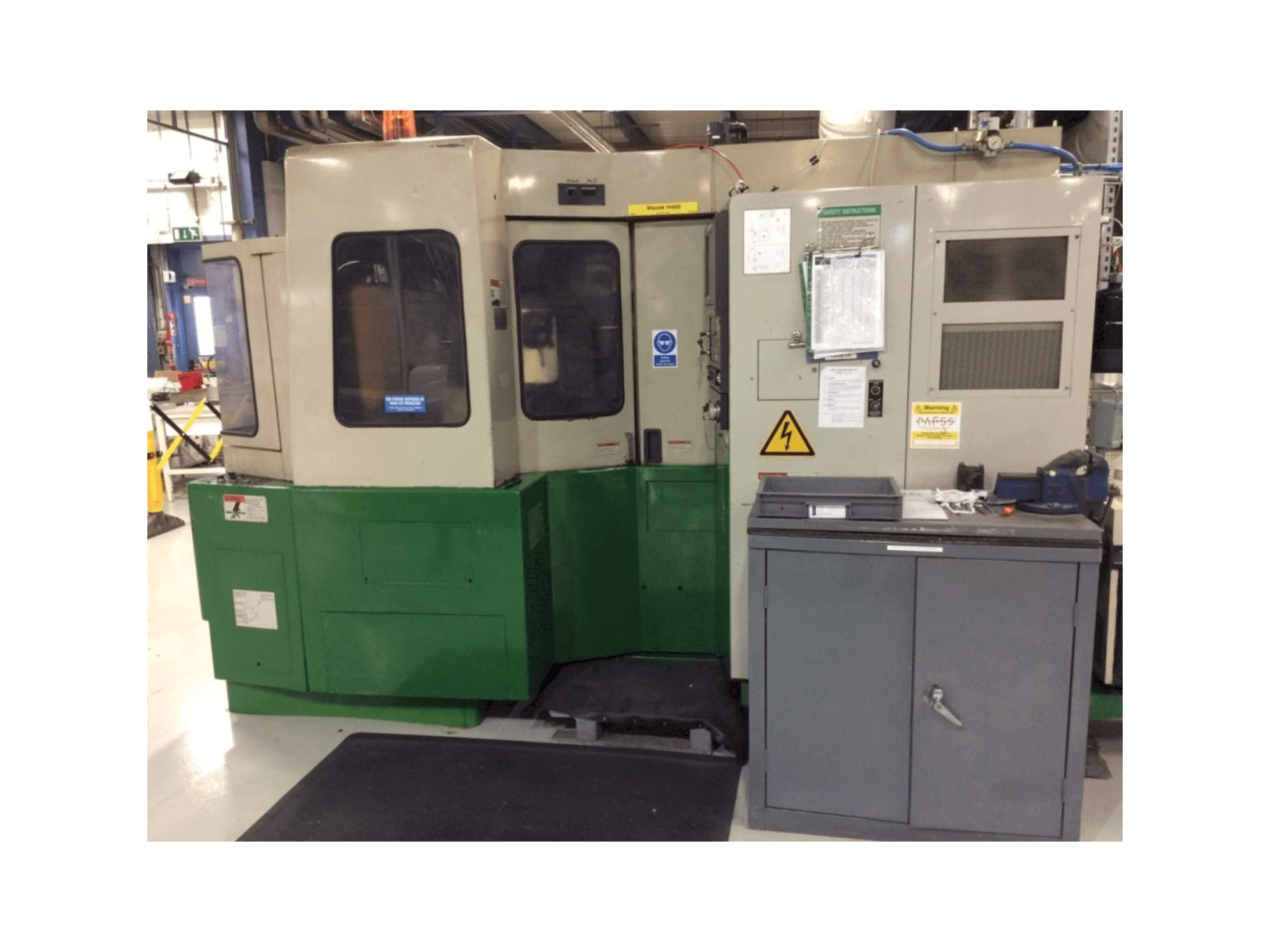

Front view of Mazak Mazatech H400 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Mazak - Mazatech H400IE-MIL-MAZ-1990-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Mazak Mazatech H400 Horizontal Machining Center was made in Japan in 1990. It is equipped with a Mazak Mazatrol M-32 control unit. This Mazak can operate with a spindle speed up to 10000 rpm. It includes 2 x tombstones, and a selection of tool holders.

Overview

  • brand: Mazak
  • year: 1990
  • MODEL: Mazatech H400
  • application type: Milling
  • Location: Ireland
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: MAZATROL

Technical Information - Mazak Mazatech H400

General Data

  • Measurements width: 4000 mm
  • Measurements depth: 2700 mm
  • Measurements height: 2300 mm
  • Machine weight: 7200 kg

Control Unit

  • Model: Mazatrol M-32
  • CNC main language: English
  • CNC language customizable: Yes
  • Brand: MAZATROL

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN

Movement

  • X-AXIS Movement: 560 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 510 mm

Workpiece

  • Workpiece x: 610 mm
  • Workpiece y: 600 mm
  • Workpiece weight: 400 kg

Table

  • Outer length: 400 mm
  • Outer width: 400 mm

Tools

  • Slots in storage: 40
  • Max weight: 12 kg
  • Max tool diameter: 150 mm
  • Max tool length: 320 mm

Media

  • Main electronic connection: 400 V
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - 2 x Tombstones
    • - Selection of Tool Holders

    Additional Information

      Machine history

      • End product: Medical device parts
      • Industries: Medical device

      Machine Benefits

      • Technical Machine Benefits:
        • - Twin pallet horizontal machining centre
        • - 40 tool atc
        • - Spindle to table center: 100 - 610mm
        • - Spindle nose to table top: 30 - 540mm
        • - Spindle motor: 15hp
        • - Pallet size: 400 x 400mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
