Mazak - LASER-PATH NEW SUPER TURBO X48EE-LAS-MAZ-1990-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Mazak LASER-PATH NEW SUPER TURBO X48 Laser Cutting Machine

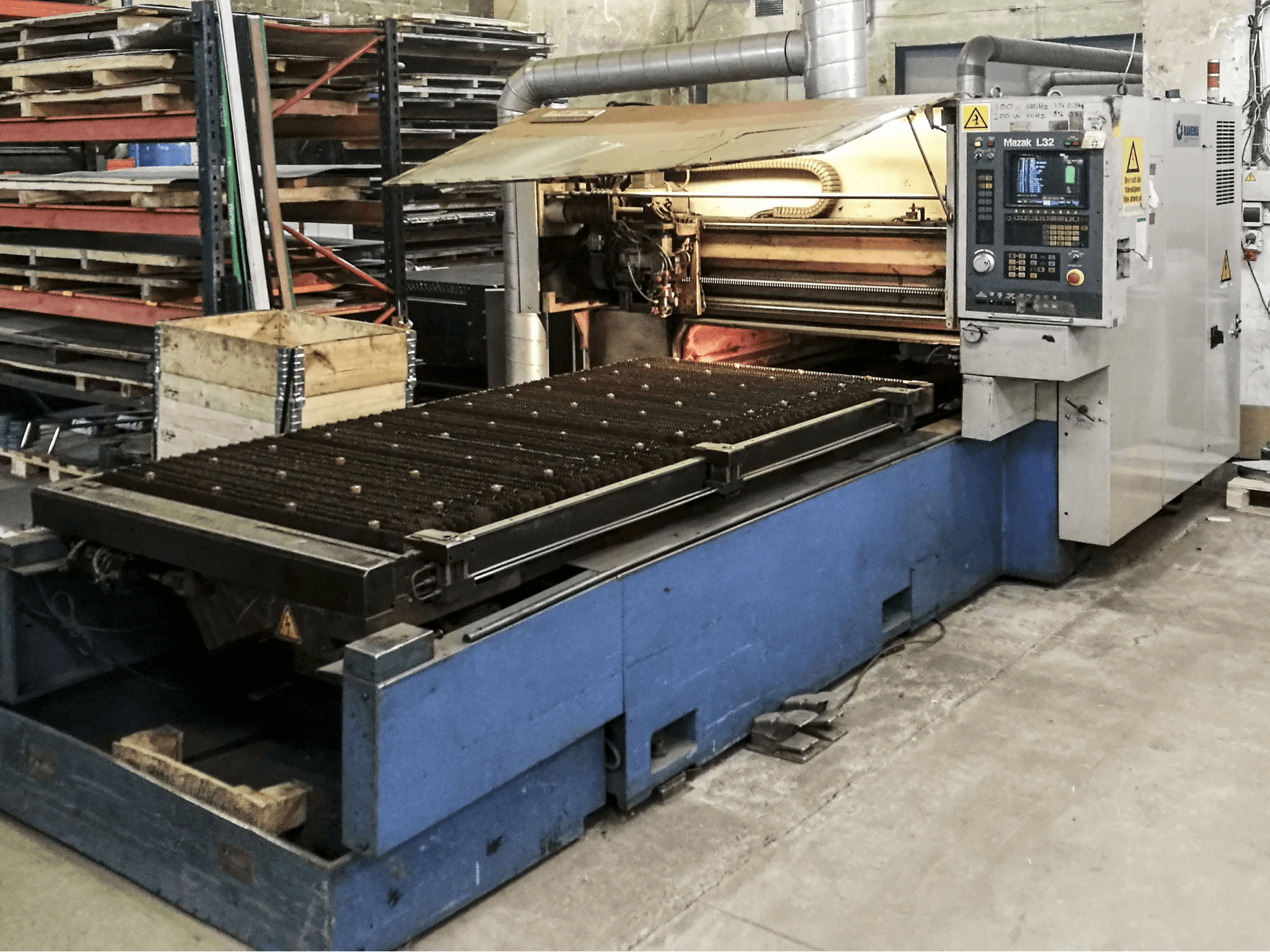

This Mazak LASER-PATH NEW SUPER TURBO X48 Laser Cutting Machine from 1990 was manufactured in Japan and has been operative for 46770 production hours since then. This model is equipped with a Mazak L-32 Control unit and a Panasonic CO2 laser with 1.5 kW laser power. The machine has mainly worked with mild steel sheets of up to 12 mm of thickness during the past and incorporates a chiller in the delivery.
Overview
- brand: Mazak
- year: 1990
- MODEL: LASER-PATH NEW SUPER TURBO X48
- production hours: 46770
- application type: Cutting
- Location: Estonia
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: MAZATROL
Technical Information - Mazak LASER-PATH NEW SUPER TURBO X48
General Data
- Measurements width: 2600 mm
- Measurements depth: 5555 mm
- Measurements height: 2400 mm
- Machine weight: 8500 kg
Control Unit
- Model: L-32
- Brand: MAZATROL
Main drive
- Laserpower: 1.5 kW
- Laser type: CO2
- Laser brand: Panasonic
Movement
- X-AXIS Movement: 2630 mm
- Y-AXIS Movement: 1270 mm
- Z-AXIS Movement: 100 mm
Workpiece
- Workpiece x: 2500 mm
- Workpiece y: 1250 mm
- Workpiece weight: 300 kg
Max Material thickness
- Steel: 12 mm
- Stainless steel: 5 mm
- Aluminum: 5 mm
Media
- Main electronic connection: 230 / 460 V
- Power consumption: 22 kVA
- Chip conveyor: Yes
Additional Equipment
- - Chiller
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
