Mazak - Integrex 400 YES-TUR-MAZ-1999-00001

Name: Mazak Integrex 400 Y
Brand: Mazak
SKU: ES-TUR-MAZ-1999-00001
Price: 52000 EUR
Availability: InStock

52,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Integrex 400 Y Lathe For Sale | gindumac.com

Show in original language

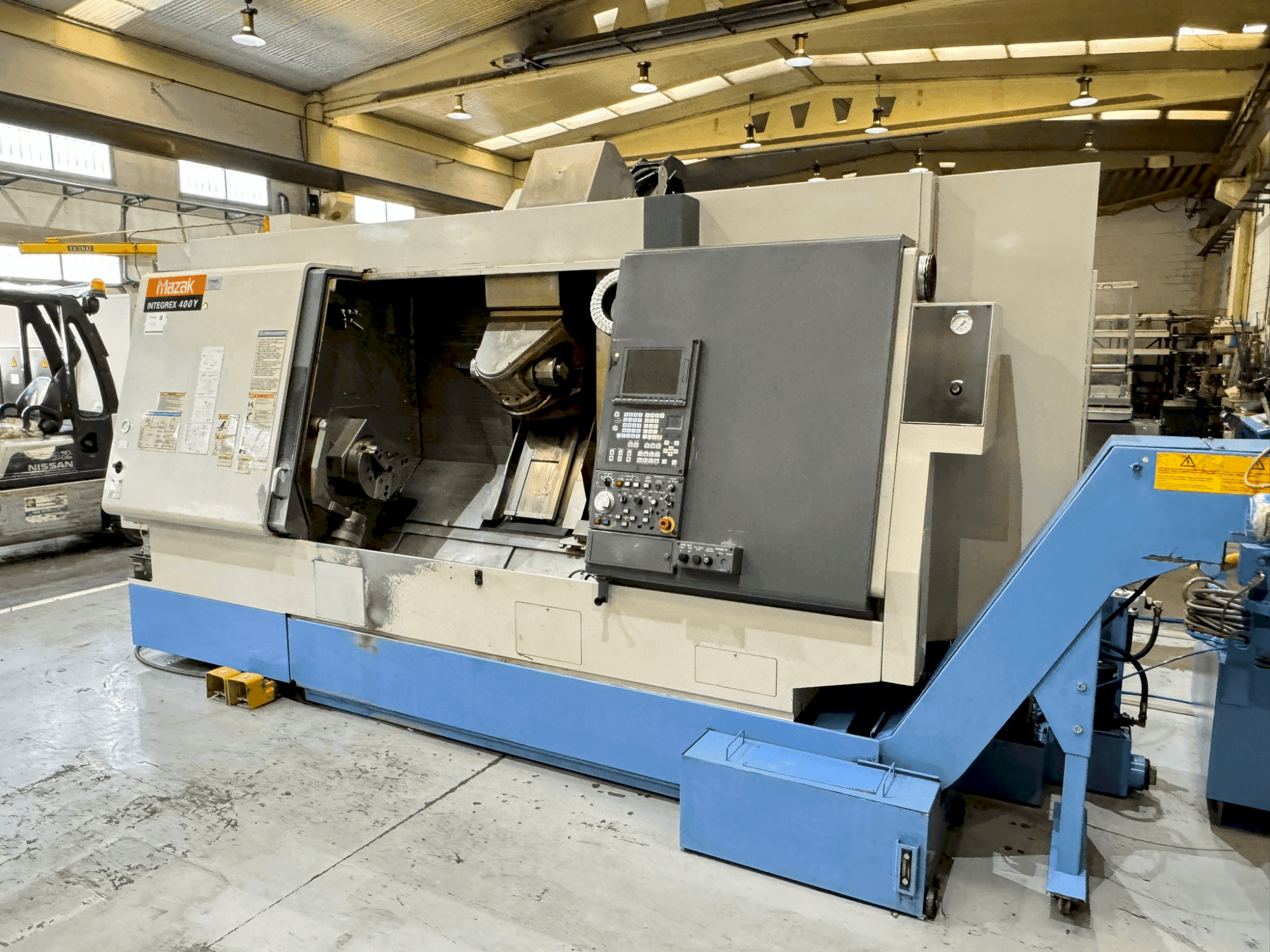

This 5-axis Mazak Integrex 400 Y lathe was manufactured in 1999. It features a CNC Mazatrol Fusion 640 MT, a maximum swing and machining diameter of 610 mm, and a machining length of 1.524 mm. The main spindle offers speeds up to 3,000 rpm with a power of 22-30 kW. Includes a tool magazine with 40 positions, driven tools speed up to 8,000 rpm, and a chip conveyor. Reach out for further details regarding this lathe.

Overview

brand: Mazak
year: 1999
MODEL: Integrex 400 Y
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400 Y

General Data

Measurements depth: 5200 mm
Measurements height: 2800 mm
Machine weight: 9850 kg

Control Unit

Model: MAZATROL FUSION 640 MT
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 35 – 3000 rpm 1/MIN
Spindle motor power: 22-30 kW
Tool taper: HSK 63 Nm
Number of axis: 5

Movement

X-AXIS Movement: 580 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 105 mm
Y-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 1605 mm
Z-AXIS Rapid traverse: 30 m/min
W-Axis Movement: 1545 mm
W-Axis Rapid traverse: 6 m/min
C-AXIS Rapid traverse: 400 rpm

Turret

Number of turrets: 1

Tools

Number of index: 40

Media

Chip conveyor: Yes

Additional Equipment

- Power entering 3 jaw chuck Ø304 mm
- Tool pre-setter
- Auto coolant pressure: 40 Bar
- Hydraulic steady rest SMW Autoblok SLU-3-1-MSHydraulic steady rest capacity: 20-165 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose: asa 2-8
- - Main spindle maximum torque: 1195 nm
- - Driven tools speed: 15-8,000 rpm // driven tools power: 15 kw
- - Max. Swing: 610 mm
- - Max. Machining diameter: 610 mm
- - Max. Machining length: 1524 mm
- - Bar diameter: 88 mm
- - Tool holder size: 25 mm
- - Boring bar holder size: 40 mm
- - Machine power: 48 kva

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
