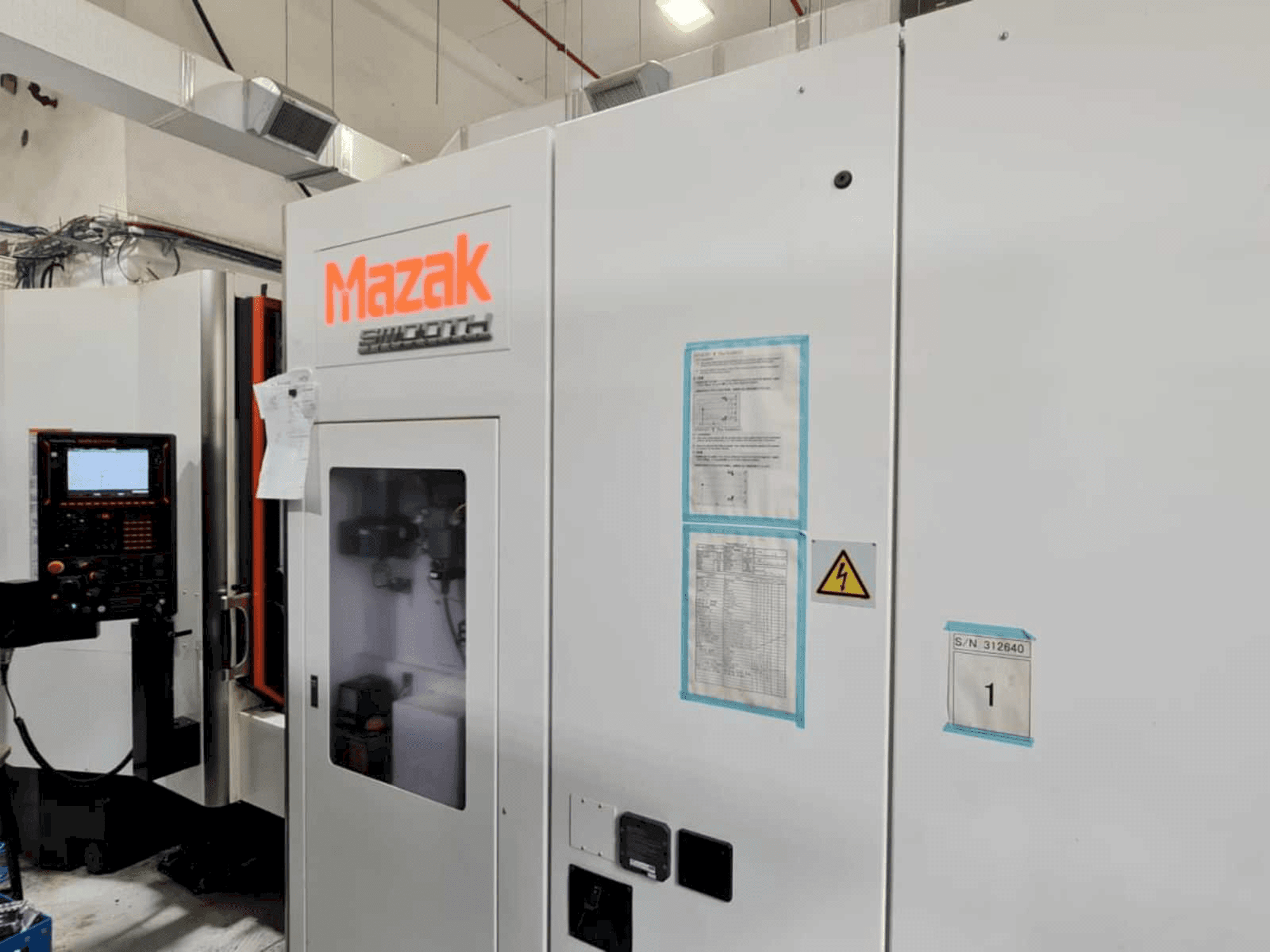

Mazak HCN-4000

Photo Gallery

Mazak - HCN-4000IL-MIL-MAZ-2020-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak HCN-4000 Horizontal Machining center

Show in original language

This Mazak HCN-4000 Horizontal Machining center was manufactured in the year 2020 in Japan and has 10152 production hours, of which 6135 are cutting hours. It is equipped with a Mazatrol SMOOTH control unit and has 4 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: Mazak
year: 2020
MODEL: HCN-4000
production hours: 10152
application type: Milling
Location: Israel
machine type: Horizontal Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak HCN-4000

General Data

Measurements width: 2400 mm
Measurements depth: 5454mm
Measurements height: 2713 mm
Machine weight: 10200 kg

Control Unit

Model: SMOOTHC
Brand: MAZATROL

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 640 mm
Z-AXIS Movement: 640 mm

Workpiece

Workpiece drm: 630 mm x 900 mm

Table

Outer length: 400 mm
Outer width: 400 mm
Table load: 400 kg

Media

Main electronic connection: 400 V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 60 atc
- - Tool shank: no. 40
- - Distance from table top to spindle nose: 70~710 mm
- - Distance between pallet top to spindle center: 80~720 mm
- - Flood coolant system
- - Work light
- - One set of adjusting tools
- - Main spindle motor ac 18. 5kw(25hp)
- - 40 tool drum magazine (random memory)
- - Safety cover for 2 pallet changer
Qualitative Machine Benefits:
- - Chip-conveyor side dispo. (consep-1)n/a6pc
- - Smooth synchronized tapping
- - Hi-press coolant thru sys (15kg(213psi))
- - Manual pulse generator(wired/detachable)
- - Auto tool length measur. & break. Detect.
- - B)cylindrical interpolation (rqr. Ncrt)
- - Signal tower (3 colors lights,square)
- - 60 tool drum magazine (random memory)
- - Nc rotary table(3,600,000 positions)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
