➤ Used Matsuura RA-4G For sale | gindumac.com

Show in original language

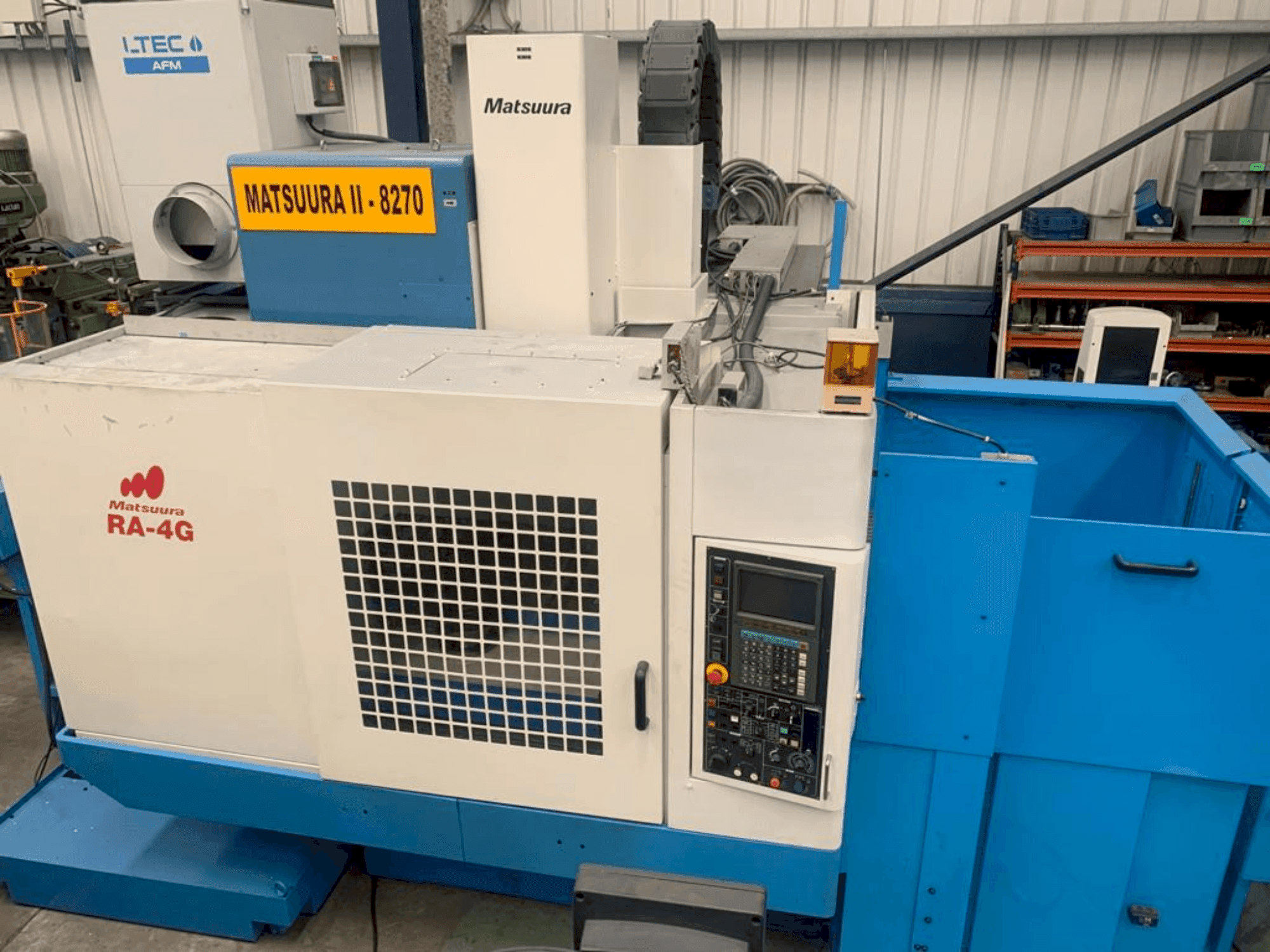

This 3-axis Matsuura RA-4G Machining Center was manufactured in 1998. It features a YASNAC control, with X-axis travel of 1020 mm, Y-axis travel of 550 mm, and Z-axis travel of 510 mm. The machine supports a maximum pallet load of 500 kg and offers a spindle speed range of 30-8000 rpm, enhanced by internal and high-pressure cooling systems. Ideal for robust machining needs, the Matsuura RA-4G machine we have for sale. Contact us for further details.

Overview

brand: Matsuura
year: 1998
MODEL: RA-4G
application type: Milling
Location: Spain
machine type: Vertical Machining Centre

Technical Information - Matsuura RA-4G

Main drive

Spindle speed range: 30-8000 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1000 mm
Outer width: 490 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 660 mm
Table load: 500 kg

Media

Internal cooling: Yes

Additional Equipment

- High-pressure cooling pump

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between the centre of the table and the column guides : 285-835 mm
- - Distance between the centre of the spindle and the column guides : 560 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
