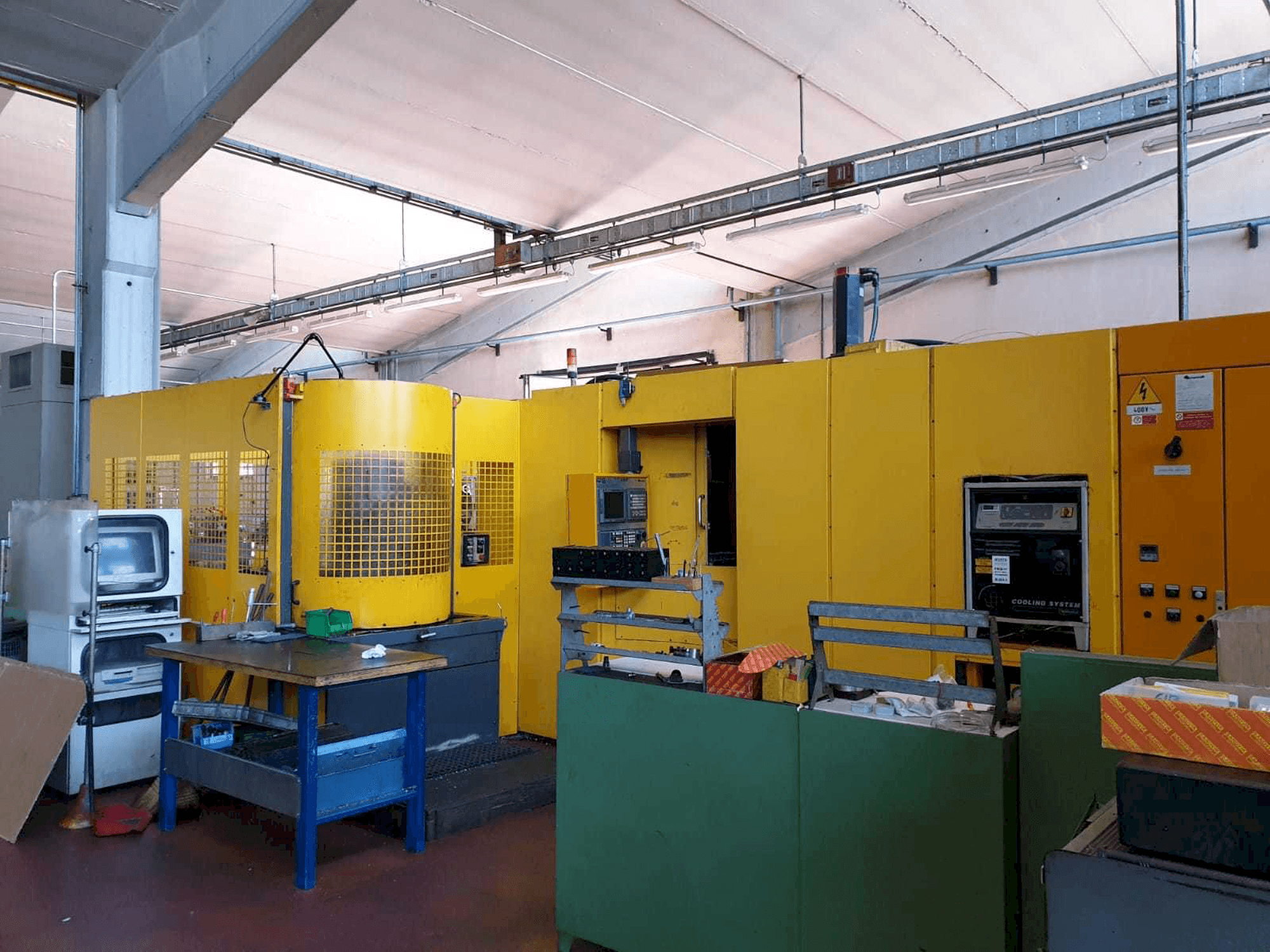

Front view of Mandelli Thunder 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mandelli Thunder 500

Photo Gallery

Mandelli - Thunder 500IT-MIL-MAN-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mandelli Thunder 500 Horizontal Machining Center

Show in original language

This Mandelli Thunder 500 Horizontal Machining Center from 1998 was built in Italy. It is equipped with a FANUC Series 16i-MA control unit. It works with a spindle speed up to 14000 rpm and a spindle power of 25 kW.

Overview

brand: Mandelli
year: 1998
MODEL: Thunder 500
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Mandelli Thunder 500

General Data

Measurements width: 8626 mm
Measurements depth: 2400 mm
Measurements height: 4610 mm
Machine weight: 18000 KG

Control Unit

Model: Series 16i-M
Brand: FANUC

Main drive

Spindle speed range: 14000 1/MIN
Spindle motor power: 25 kW

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece weight: 600 kg

Media

Main electronic connection: 400 V
Power consumption: 40 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Min air compress: 6bar
Rapid traverse 60,000 mm/min
Diameter of ball screws: 50mm
Ball screws pitch: 30mm
Coolatn capacity: 18 liters
High pressure pump for in/out cooling at 25bar
Machine plate dimensions: 500x500. / 500x630

Machine History

Material type

Aluminium

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
