➤ Used Makino EDNC43 Erosion Machine

Show in original language

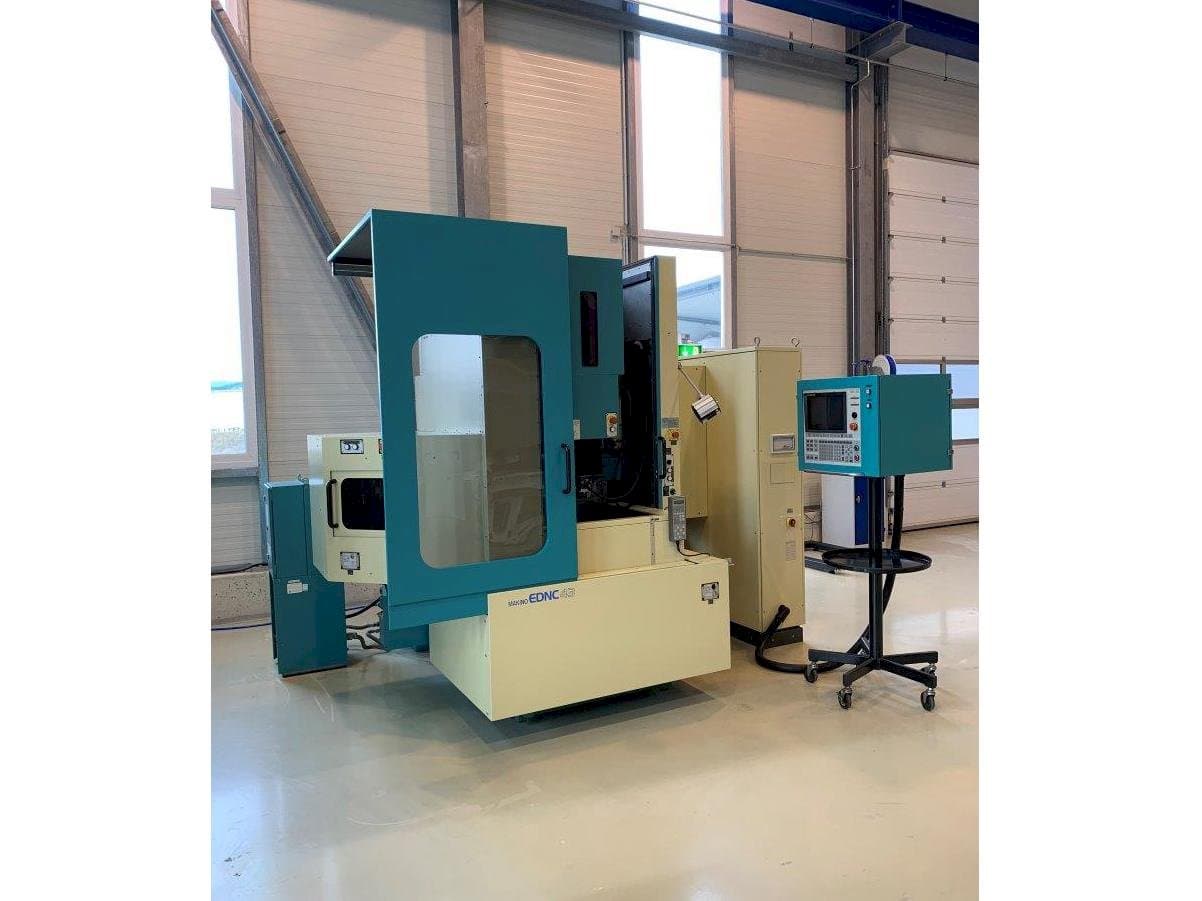

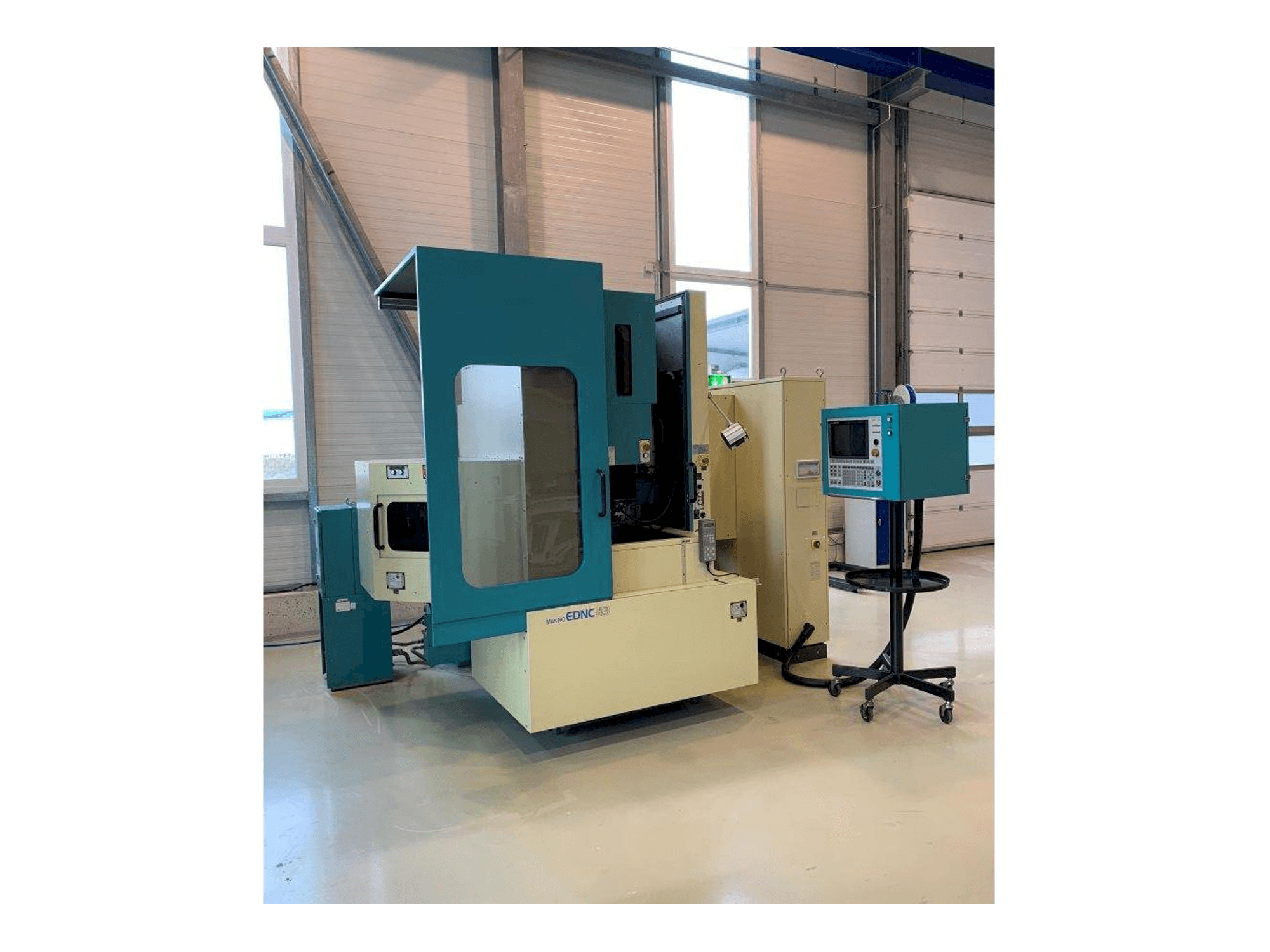

This Makino EDNC43 Erosion Machine was built in the year 1996. It is equipped with a Makino MGF 20 control unit. The machine has a rotation spindle of 1000 rpm.

Overview

brand: Makino
year: 1996
MODEL: EDNC43
application type: EDM
Location: Austria
machine type: Die-Sinking EDM Machine
control unit brand: MAKINO

Technical Information - Makino EDNC43

Control Unit

Model: MGF 20
Brand: MAKINO

Main drive

Spindle speed range: 1000 1/MIN

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 350 mm

Table

Outer length: 700 mm
Outer width: 500 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Cooling unit thermostatically controlled

Technical Machine Benefits

Generator mgf 20 with 60 amps
Color screen 14 inch
Manual control panel with short functions
Tool changer atc 8
Electrode clamping system erowa
C-axis ma - head
Rotation spindle 1000 revolutions
Working tank 850 x 650 x 400
Fire extinguishing system
Dielectric unit incl. Filter unit

Extra Information

The electrode holders and the clamping magnet are not part of the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
