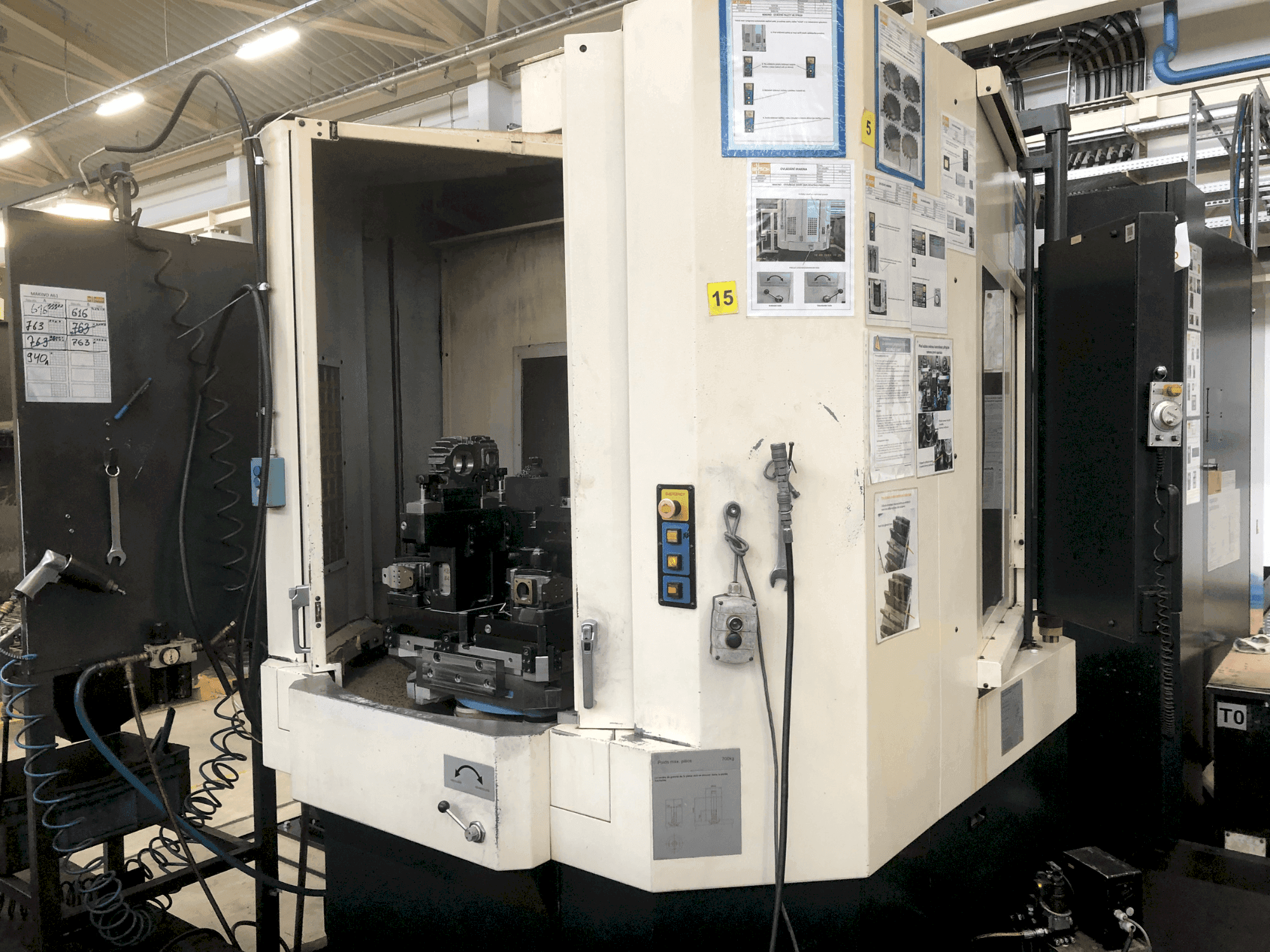

This 4-axis Makino A61-5XR was manufactured in 2005. This horizontal machining centre is equipped with a Fanuc / Pro5 control, has a table size of 500 x 500 mm, and a stroke of 730 x 650 x 730 mm. It features table indexing at 1° and an ATC with 134 positions, handling a maximum workpiece weight of 700 kg. Contact us for further details regarding this machine.
Overview
- brand: Makino
- year: 2005
- MODEL: A61-5XR
- application type: Milling
- Location: Czech Republic
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - Makino A61-5XR
Control Unit
- Control Brand: FANUC
- Control Model: Pro5
Dimensions
- Machine Depth: 2286 mm
- Machine Height: 2921 mm
- Machine Weight: 9500 kg
- Table Length: 500 mm
- Table Width: 500 mm
Movement
- B-axis Max: 150°
- B-axis Min: -60°
- C-axis: 360°
- Number of Axes: 4
- X-axis Travel: 730 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 730 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Machine Specific Data
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
