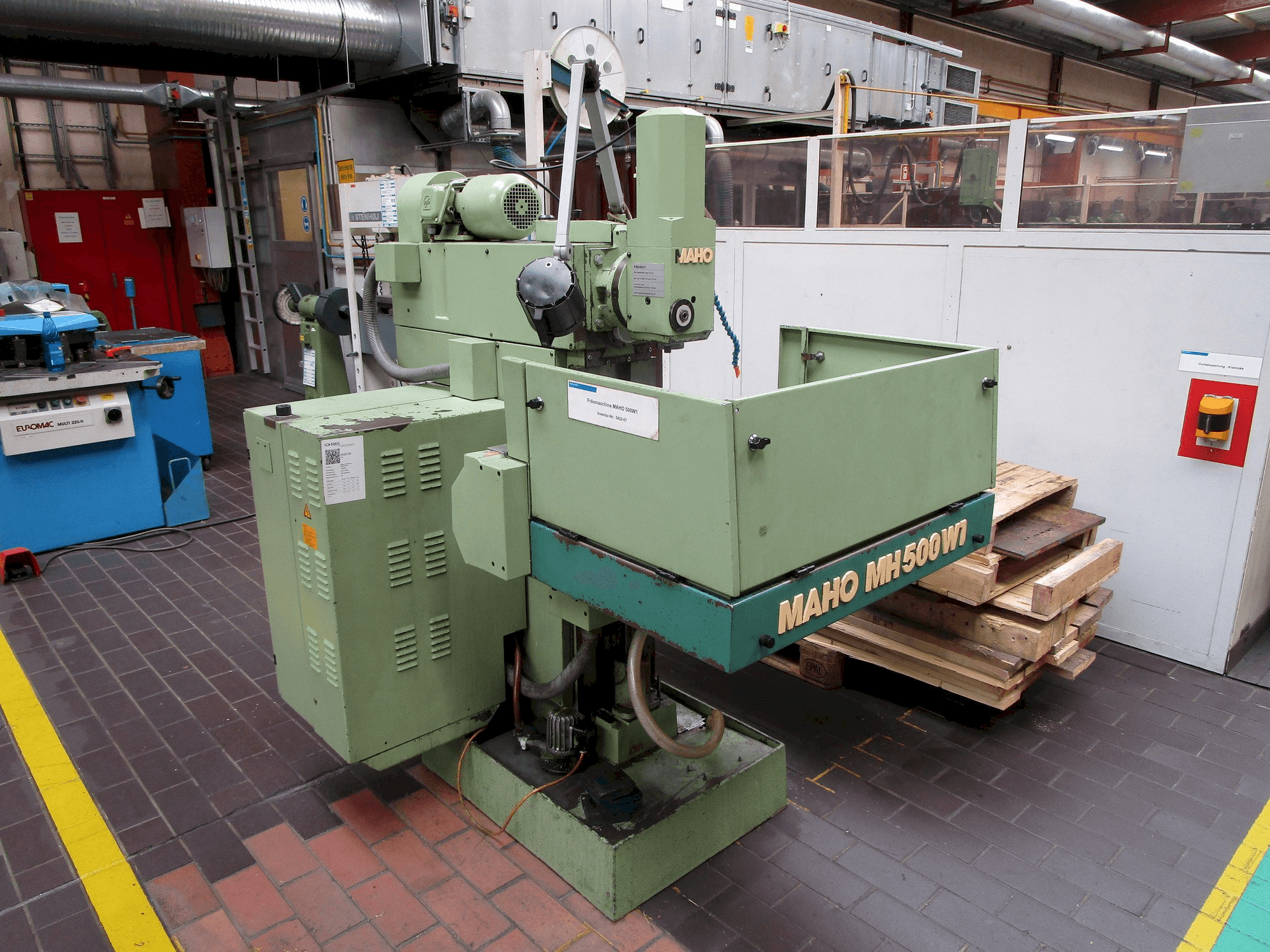

Maho MH 500 W1 Milling Machine

Show in original language

This Maho MH 500 W1 Milling Machine was built in Germany in 1988 and has been working for approximately 35000 hours. This machine is able of performing with a spindle speed up to 4000 rpm.

Overview

brand: MAHO
year: 1988
MODEL: MH 500 W1
production hours: 35000
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold

Technical Information - MAHO MH 500 W1

General Data

Measurements width: 2050 mm
Measurements depth: 1430 mm
Measurements height: 1812 mm
Machine weight: 1650 kg

Main drive

Spindle speed range: 63-4000 1/MIN

Movement

X-AXIS Movement: 500 mm
X-AXIS Working Feed: 600 mm/min
Y-AXIS Movement: 380 mm
Y-AXIS Working Feed: 600 mm/min
Z-AXIS Movement: 355 mm
Z-AXIS Working Feed: 600 mm/min

Tools

Type of tool holder: 40 ISO

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 8 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clamping surface 254 x 354 mm
- - Number of guiding grooves: 1

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
