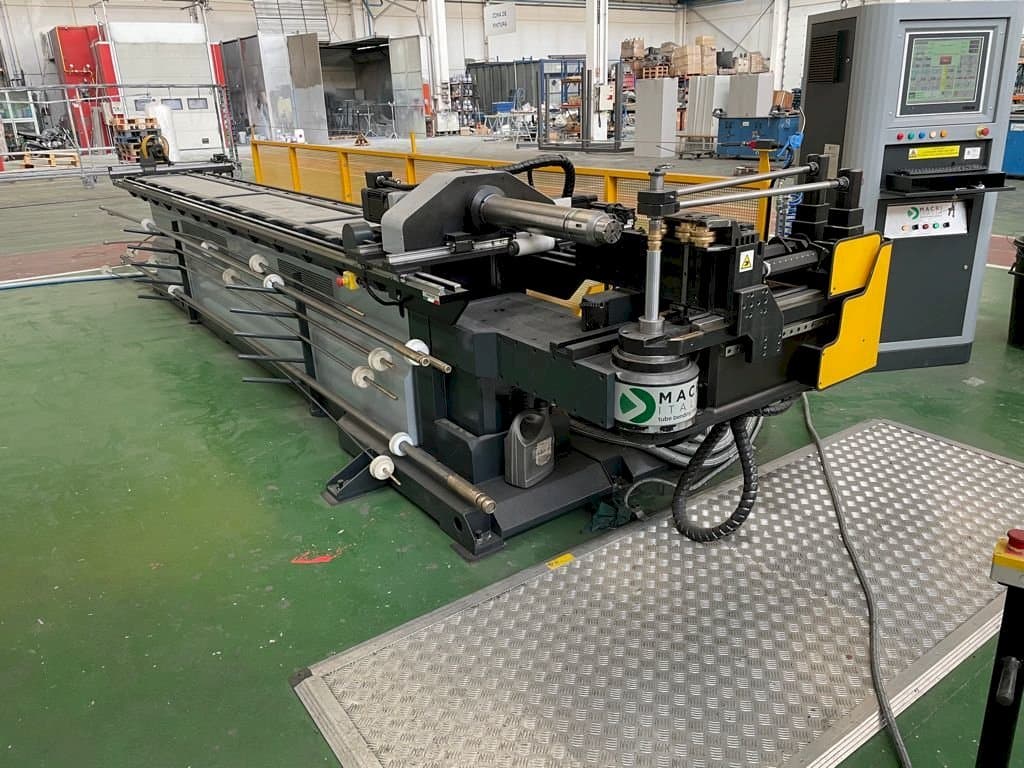

Front view of Macri Italia Provar 65 UD-6 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MACRI Provar 65 UD-6

Photo Gallery

MACRI - Provar 65 UD-6ES-BEN-MAC-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Macri Italia Provar 65 UD-6

Show in original language

This Macri Italia Provar 65 UD-6 Bending Machine was made in 2018. This 6 axis machine has very little working hours. It is operated through a numerical touch screen control unit, managed by Industrial PC in WINDOWS 7 environment, 3D anti-collision software with automatic correction of the piece and calculation of the elasticity of the material. It stands out for its working length 3600 m/m and bar passage through the trolley 65 m/m. This machine is like new.

Overview

brand: MACRI
year: 2018
MODEL: Provar 65 UD-6
application type: Bending
Location: Spain
machine type: Roll Bending Machine

Technical Information - MACRI Provar 65 UD-6

General Data

Machine weight: 4800 kg

Main drive

Bending length: 3.600 m/m MM
Number of axis: 6

Media

Main electronic connection: 400 V / 50 Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very little use, machine is like new
Tft colour tft touchscreen 17"
Rs232 serial ports 1
Ethernet ports 1
Usb ports (1 front) 3
Tube Ø 60x2 fe: minimum bending radius 10 times tube diameter.
For tubes of larger diameters, the minimum bending radius increases by a logical number of times.

Technical Machine Benefits

Maximum diameter to be bent (steel 450 n/mm2) Ø 65x5 m/m
Maximum diameter to be bent (stainless steel 700 n/mm2) Ø 60x3 m/m
Maximum bending diameter (steel 450 n/mm2) 50x2 m/m
Bar passage through the trolley 65 m/m
Maximum modulus of resistance 14 ́2 cm3
Maximum bending centre radius with rollers (1) 340 m/m
Stroke of the accompanying rail 400 m/m
Height from bending centre to bottom of headstock 430 m/m
X-axis accuracy +/- 0 ́1 m/m ; y-axis accuracy +/- 0 ́1º ; x-axis accuracy +/- 0 ́1 º
X-axis speed (with generation bending) 650 mm/sec. -; y-axis speed 80 o/sec. ; z-axis speed 360 o/sec.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
