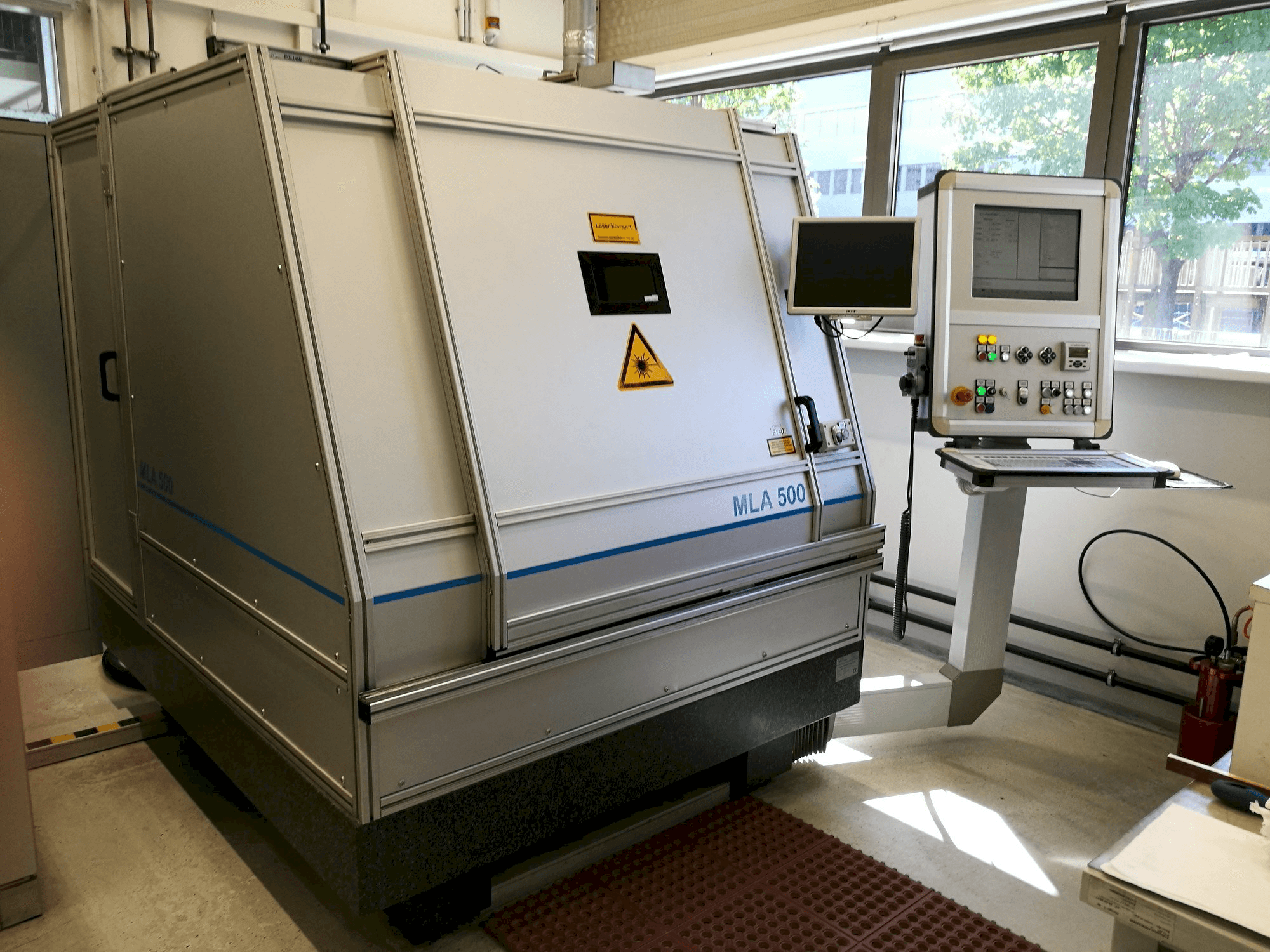

Front view of LLT APPLIKATION MLA 500 machine
Front view of LLT APPLIKATION MLA 500 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

LLT APPLIKATION - MLA 500AT-LAS-LLT-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This LLT APPLIKATION MLA 500 Laser Cutting Machine was built in Germany in the year 2008. It has been working for approximately 40760 hours since then. It is operated with a ProCom control unit. This machine can operate with a laser power of 150 w.

Overview

  • brand: LLT APPLIKATION
  • year: 2008
  • MODEL: MLA 500
  • production hours: 40760
  • application type: Cutting
  • Location: Austria
  • machine type: CO2 Laser Cutting Machine

Technical Information - LLT APPLIKATION MLA 500

    Main drive

    • Laserpower: 150 Watt KW

    Movement

    • X-AXIS Movement: 300 mm
    • Y-AXIS Movement: 500 mm
    • Z-AXIS Movement: 400 mm
    • C-AXIS Movement: +-9999 degrees MM

    Media

    • Power consumption: 15kVA 9kVA

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Wavelength: 1064nm
        • - Laser type: nd-yag solid state laser pulsed
        • - Beam diameter: 6mm (approx. 0. 15mm focus point)
        • - Pulse frequency: 0. 1 - 1000 hz
        • - Pulse duration: 0. 1 - 20 ms
        • - Cooling water consumption: max. 20 l/min at max. 20°c
        • - 4 axes

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
