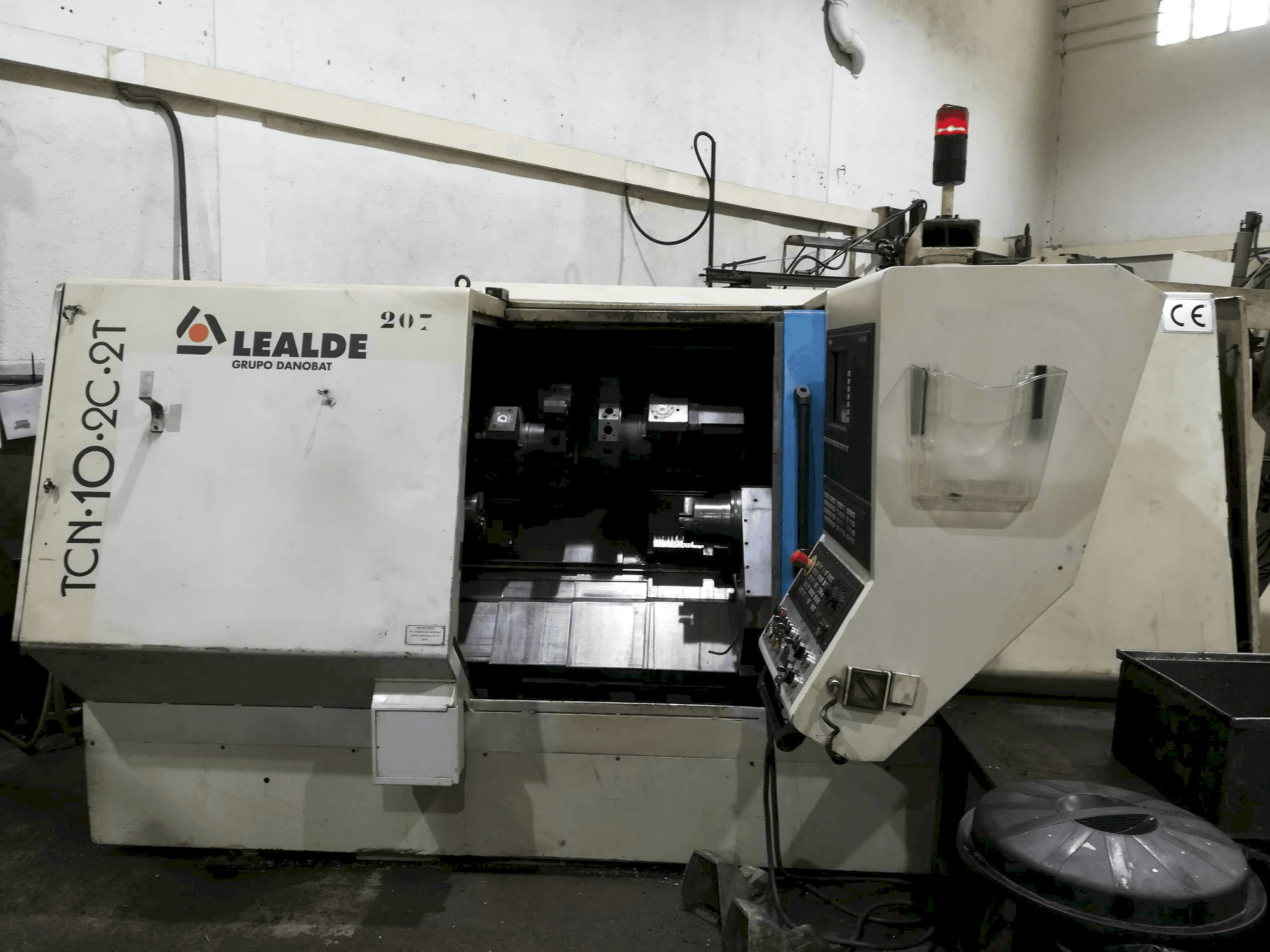

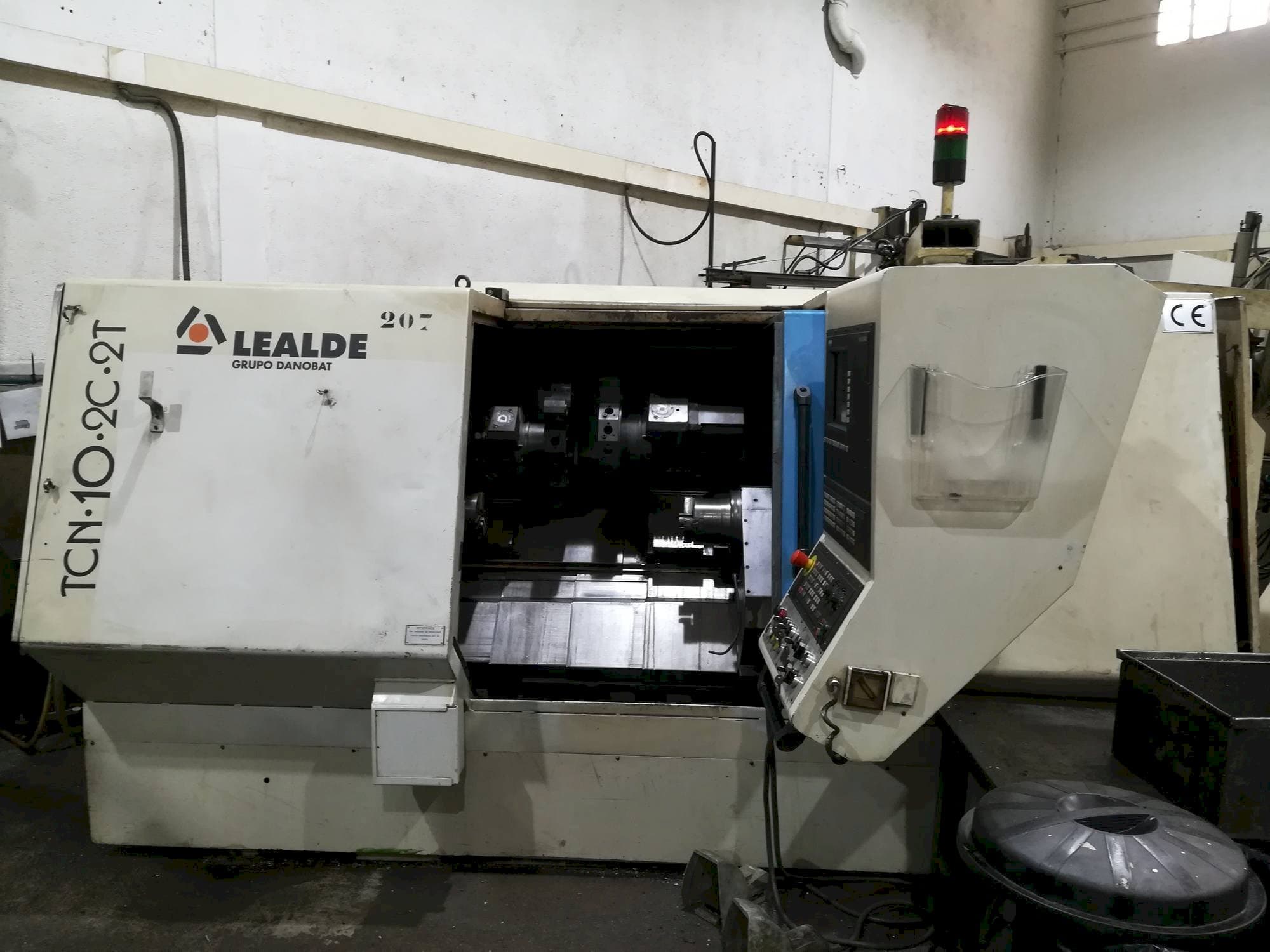

Front view of Lealde TCN 10 2C 2T machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Lealde TCN 10 2C 2T

Photo Gallery

Lealde - TCN 10 2C 2TES-TUR-LEA-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Lealde TCN 10 2C 2T Lathe

Show in original language

This Lealde TCN 10 2C 2T Lathe was built in 1996 in Spain. Operated through a SIEMENS SINUMERIK 840C Control unit, this machine can work with a spindle speed up to 4000 rpm.

Overview

brand: Lealde
year: 1996
MODEL: TCN 10 2C 2T
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Lealde TCN 10 2C 2T

General Data

Machine weight: 3100 kg

Control Unit

Model: SINUMERIK 840C
Brand: SIEMENS

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 15 Kw

Movement

X-AXIS Working Feed: 20000mm/min
Y-AXIS Working Feed: 20000mm/min

Additional Equipment

- Set of jaws

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum distance between main shaft nose and tailstock point 520 mm
- - Main shaft torque 190 nm
- - Max. Permissible diameter on longitudinal guides 450mm
- - Maximum permissible diameter on transverse slides 210mm
- - Longitudinal slide travel 500mm
- - Positioning repeat accuracy x axis +-0, 003 z axis +-0, 007
- - Motor drive torque longitudinal spindle 10nm
- - Plate 254mm
- - Pitch bar 64mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
