Krauss Maffei 650-1900-520 CZ Injection Moulding Machine

Show in original language

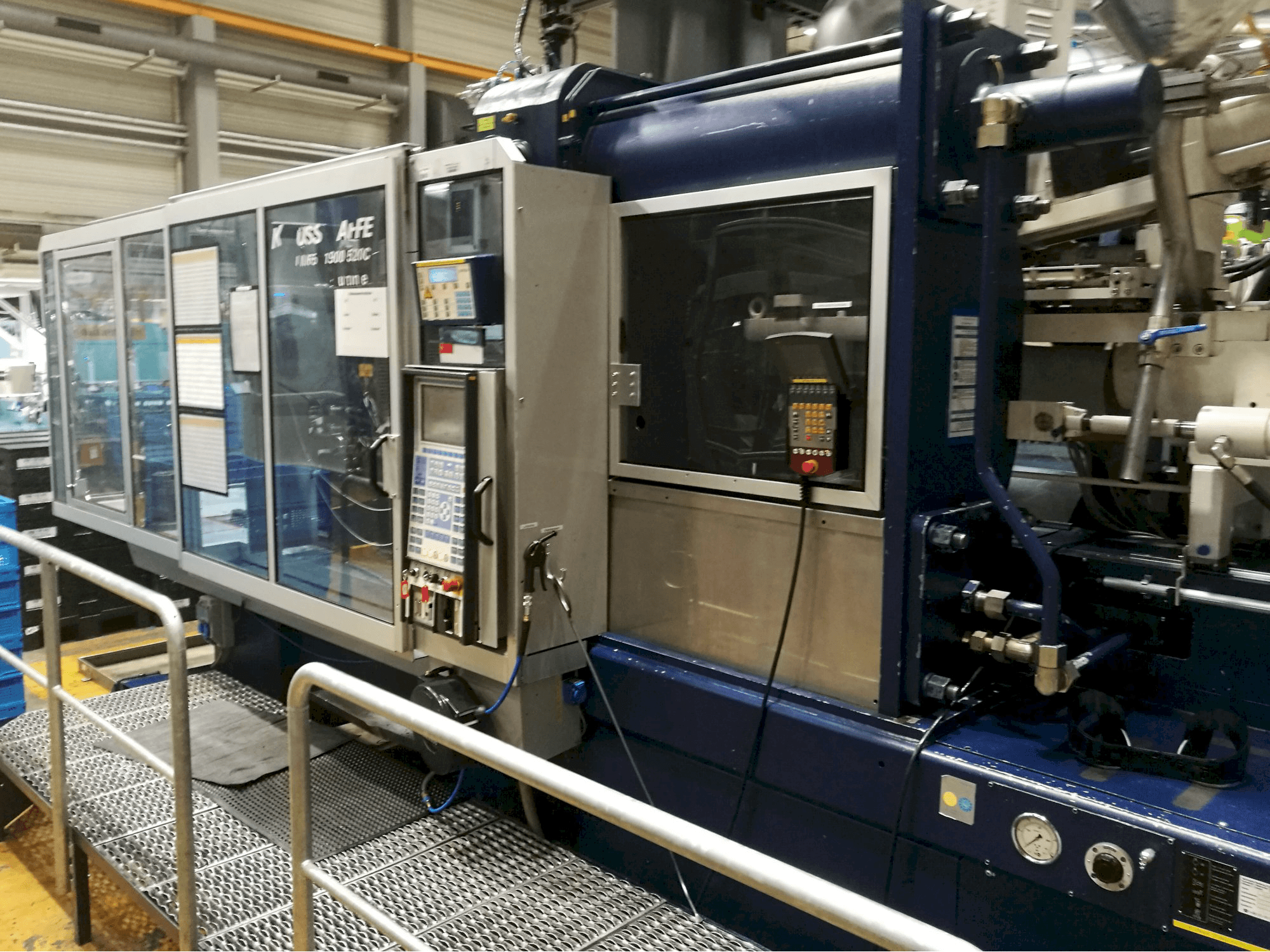

This Krauss Maffei 650-1900-520 CZ Injection Moulding Machine from 2003 was manufactured in Germany and is operated through a Krauss Maffei MC4 Control unit. This machine incorporates a Wittmann handling and has mainly produced plastic parts for the automotive industry.

Overview

brand: Krauss Maffei
year: 2003
MODEL: 650-1900-520 CZ
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 650-1900-520 CZ

General Data

Measurements width: 9830 mm
Measurements depth: 2760 mm
Measurements height: 2460 mm
Machine weight: 40170 kg

Control Unit

Model: MC4
CNC main language: German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Main drive

Distance between bars: 1000x 930 mm

Injection Unit

Screw diameter: 60 mm
Shot weight: 500g/ABS
Stroke volume: 1097 cm³
Injection pressure: 2389 bar
Plasticizing rate max.: 83 g/s PS
Screw speed: 218 1/min
Heating capacity: 36 kW
Adjustable heating zones: 7

Clamping unit

Clamping force: 6500 kN
Opening stroke: 1750 mm
Distance between bars: 1000x930 mm
Mould height min: 600 mm
Size of mold platens: 1490x1440 mm
Ejector stroke: 1150 mm
Ejector force for / back: 144 kN

Media

Internal cooling: Yes

Additional Equipment

- Handling Wittmann W632-0203 YOM 2003

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
