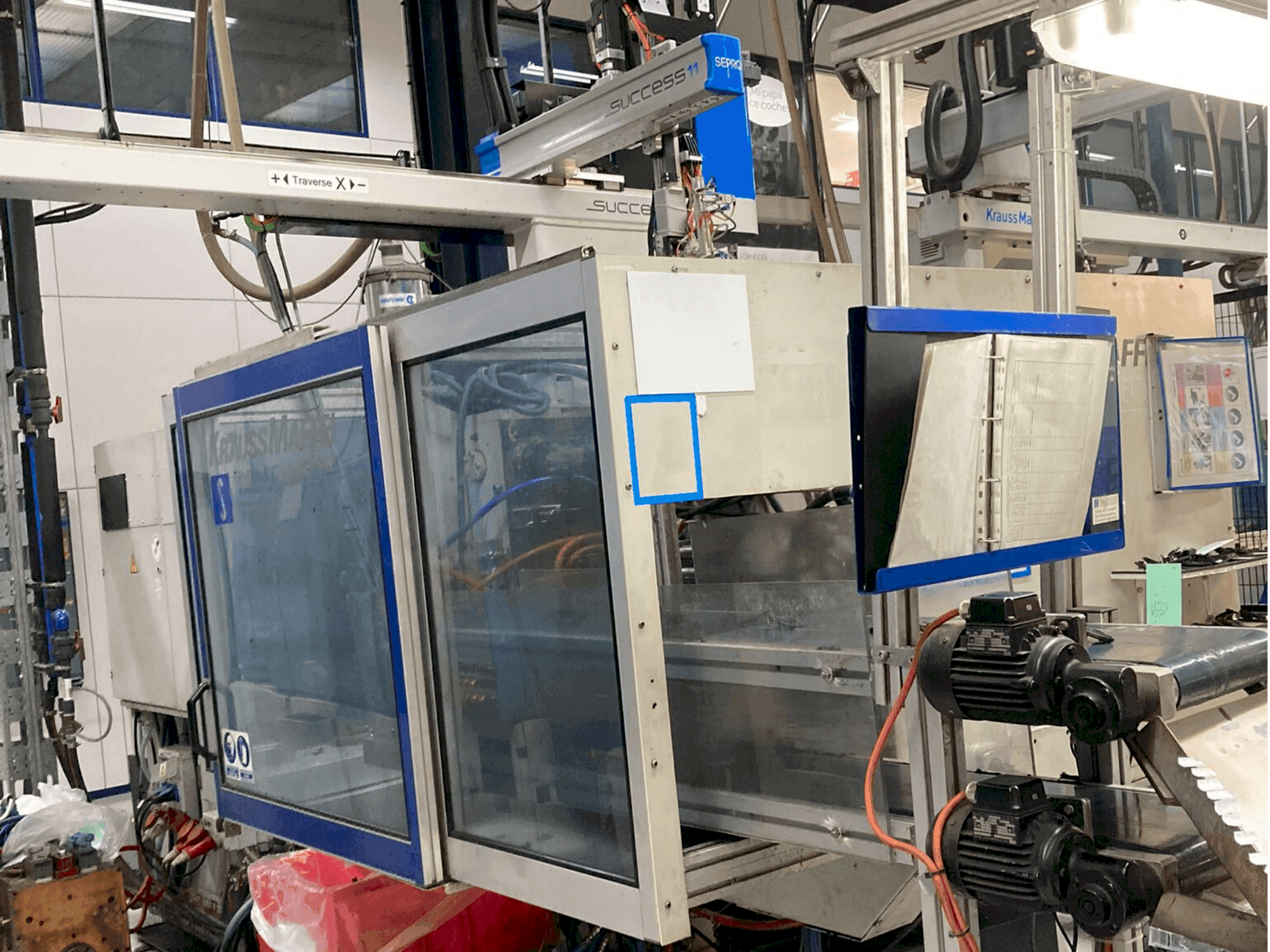

Front view of Krauss Maffei 150-700 C2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 150-700 C2

Photo Gallery

Krauss Maffei - 150-700 C2ES-INJ-KRA-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss-Maffei 150-700 C2 Injection moulding machine

Show in original language

This Krauss-Maffei 150-700 C2 Injection moulding machine was manufactured in the year 2003 in Germany. It is equipped with a clamping force of 1500 kN, a SP 700 injection unit with a screw diameter of 50 mm. Shot weight for PS is at 343g. See video gallery for more impressions. The injection moulding machine has 76901 cycle hours and 90924 machine on hours.

Overview

brand: Krauss Maffei
year: 2003
MODEL: 150-700 C2
production hours: 76901
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - Krauss Maffei 150-700 C2

General Data

Measurements width: 4660 MM
Measurements depth: 1510 MM
Measurements height: 2190 MM
Machine weight: 7690 kg

Injection Unit

Screw diameter: 50 mm
Shot weight: 343 (PS)
Stroke volume: 377 cm3 CM³
Injection pressure: 1892 bar

Clamping unit

Clamping force: 1500 kN
Opening stroke: 600
Distance between bars: 900
Mould height min: 300 mm

Additional Information

Extra information

- L/D ratio 20

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Krauss Maffei 150-700 C2 (2003) - Tech Specs.pdf
