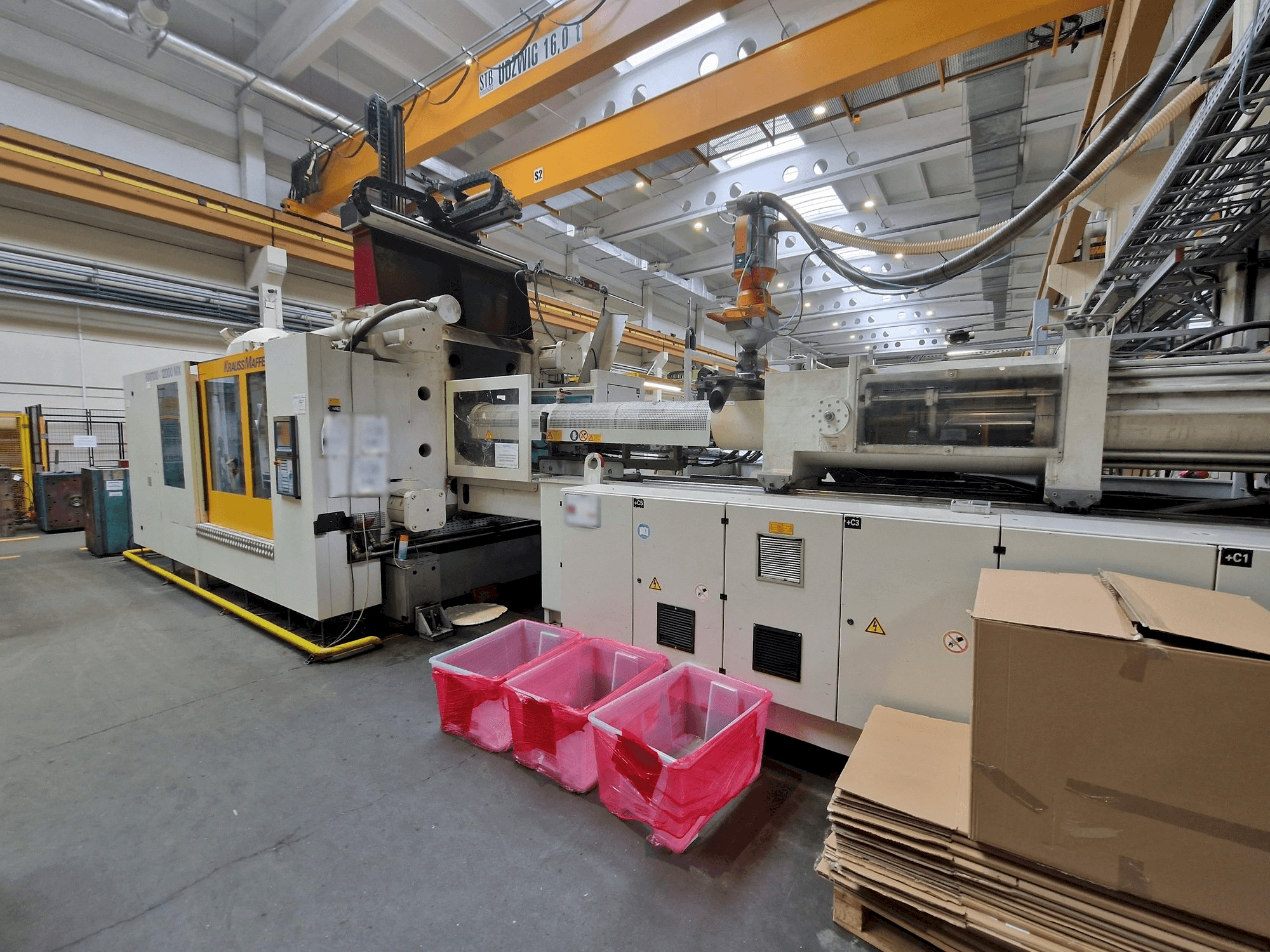

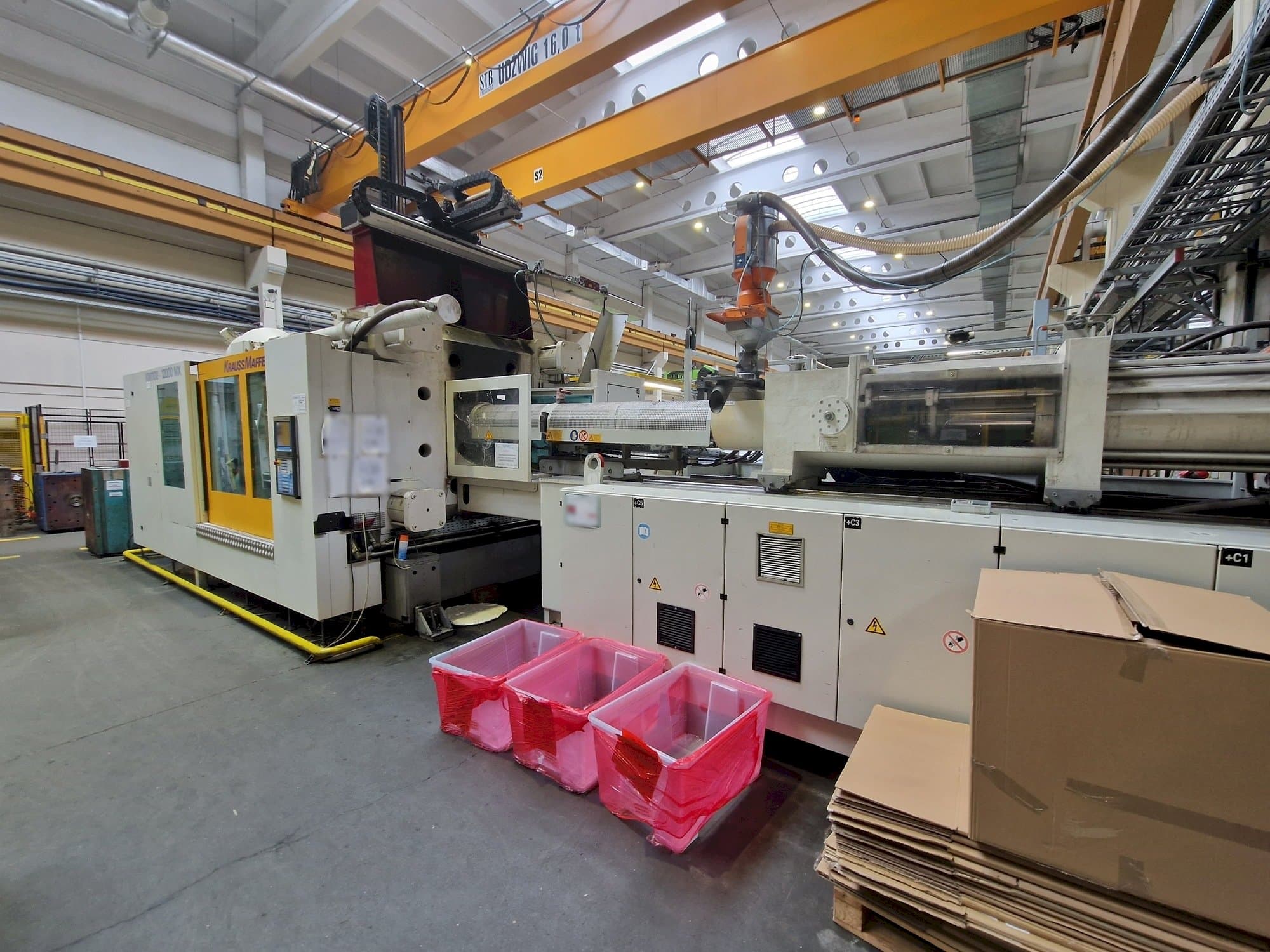

Front view of Krauss Maffei 1100-12000 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 1100-12000 MX

Photo Gallery

Krauss Maffei - 1100-12000 MXPL-INJ-KRA-2008-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Kraus Maffei 1100-12000 MX Injection moulding machine

Show in original language

This Kraus Maffei 1100-12000 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 95845 production hours. It is equipped with a Krauss Maffei MC5 control unit. The machine has a clamping force of 11000 kN, is in good condition and well maintained.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 1100-12000 MX
production hours: 95845
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 1100-12000 MX

General Data

Measurements width: 12470 mm
Measurements depth: 3650 mm
Measurements height: 2820 mm
Machine weight: 73000 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 120 mm
Shot weight: 6175 g
Stroke volume: 6786 CM³
Injection pressure: 1758 bar

Clamping unit

Clamping force: 11000 kN
Opening stroke: 2000 mm
Distance between bars: 1550 / 1250mm
Mould height min: 600 mm
Mould height max: 1200 mm
Ejector stroke: 0 – 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clearance between the tables 2600 mm, capacity injection: 6786 cm3
- - Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
- - Table whole tread: m24, quantity core pulling: 2 pcs
- - Quantity of hydraulic oil: 2440 liters
- - Motor: 132 / 147 kw, heating power: 85 kw
- - Safeguard the door: pneumatic, air valves: 5 valves
- - Valve terminal: 4 nozzles
Qualitative Machine Benefits:
- - The machine is in very good condition, full documentation, and service history available, ready for tests.
