KOVOSVIT MAS MCV 1016 Quick Vertical Machine Center

Show in original language

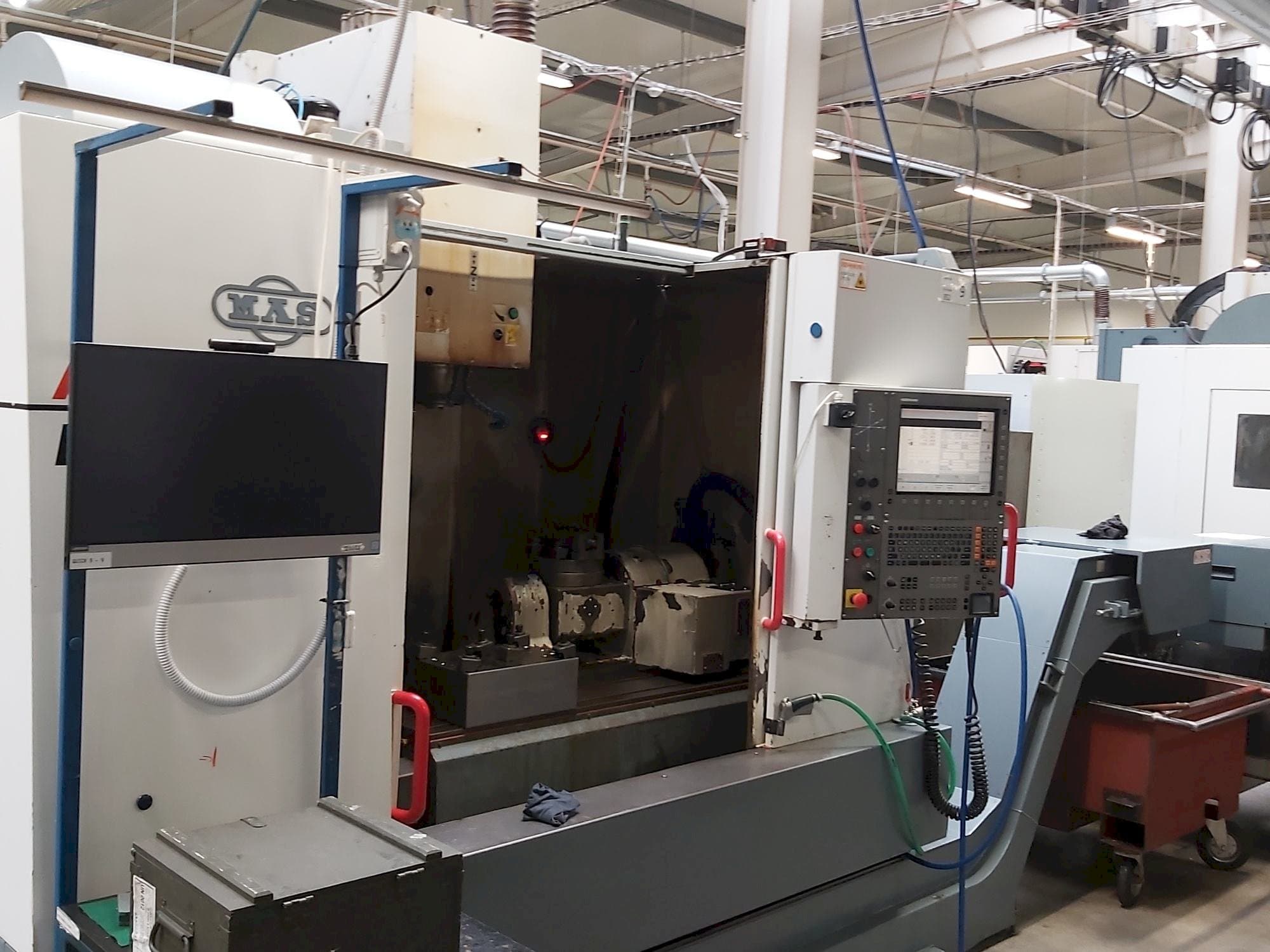

This KOVOSVIT MAS MCV 1016 Quick Vertical Machine Center was manufactured in the year 2007 in the Czech Republic and has 82289 hours, of which 42945 are program hours. It is equipped with a Heidenhain iTNC 530 HSCI control unit and has 3+2 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: KOVOSVIT MAS
year: 2007
MODEL: MCV 1016 Quick
production hours: 82289
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1016 Quick

General Data

Measurements width: 3080 mm
Measurements depth: 2700 mm
Measurements height: 2937 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: (S1/S6 - 40%) 17/25 kW
Number of axis: 3+2

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 710 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1300 mm
Outer width: 600 mm
TSlots size: 5
Distance between: 125 mm

Tools

Slots in storage: 24
Max weight: 6,5 kg
Max tool diameter: 75/120 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Power consumption: 40 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling through spindle
- - Tool holders, various options
- - Main motor torque (s1/s6 - 40%) 162/239 nm
- - Work feedrate (x/y/z) 1-30 000 mm/min
- - 4+5th-axis table
Qualitative Machine Benefits:
- - Very good condition
- - Regularly serviced
- - 2021 - new spindle
- - 2022 - new ballscrew on z axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
