KNUTH ECOMILL 450

Show in original language

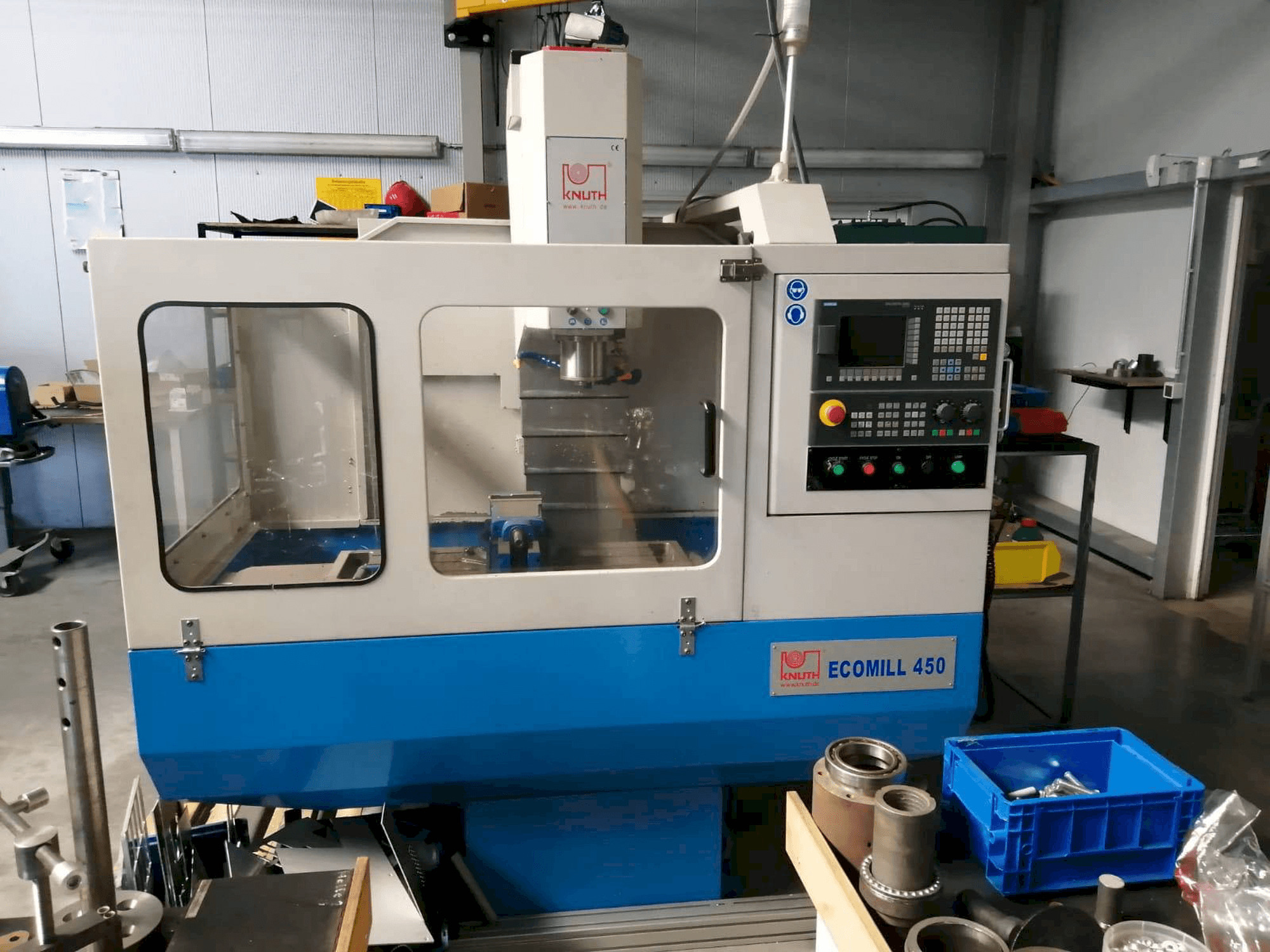

This KNUTH ECOMILL 450 Milling Machine was made in 2014 in Germany. It is operated through a SIEMENS 808D control unit. This 3 axis machine incorporates a spindle speed range 100 - 8000 rpm.

Overview

brand: KNUTH
year: 2014
MODEL: ECOMILL 450
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - KNUTH ECOMILL 450

General Data

Measurements width: 1920 MM
Measurements depth: 1690 MM
Measurements height: 2100 mm
Machine weight: 1900 KG

Control Unit

Brand: SIEMENS
Model: 808D

Main drive

Spindle speed range: 100 - 8000 1/MIN
Spindle motor power: 7 kw
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 450 mm
X-AXIS Working Feed: 5000 mm/min
Y-AXIS Movement: 300 mm
Y-AXIS Working Feed: 5000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 5000 mm/min

Table

Outer length: 920 MM
Outer width: 280 mm
TSlots size: 14
Table load: 250 kg

Media

Main electronic connection: 400 v 50/60 hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

T grooves in the table 3 pieces
T-groove distance 85 mm
Spindle front table plane distance 110 - 510 mm
X/y high speed 10000 mm/min; z high speed 8000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
