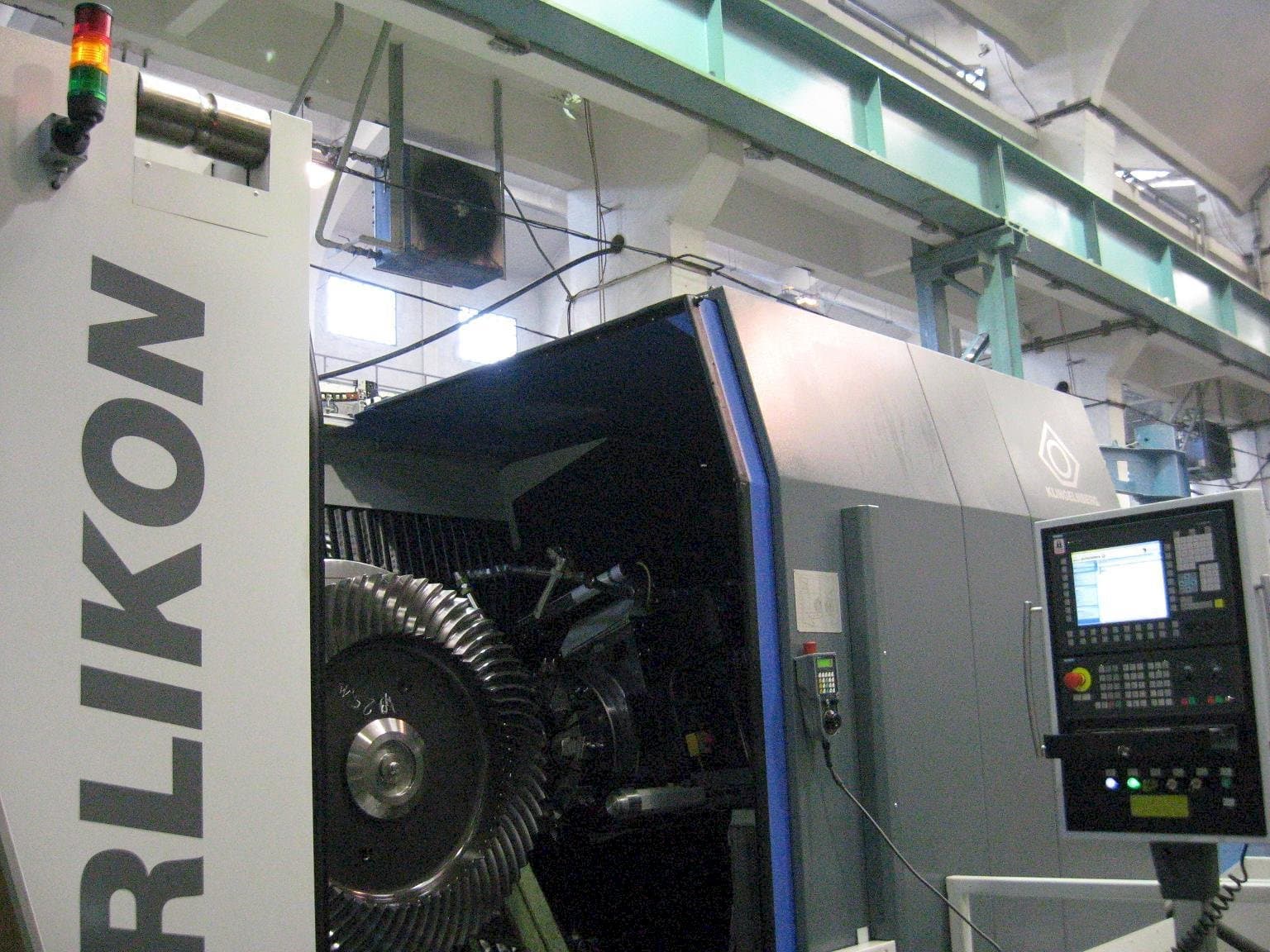

Front view of Klingelnberg C 100 U machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Klingelnberg C 100 U

Photo Gallery

Klingelnberg - C 100 UCZ-SHA-KLI-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Klingelnberg C 100 U Spiral Bevel Gear Cutting Machine

Show in original language

This Klingelnberg C 100 U Spiral Bevel Gear Cutting Machine was manufactured in Germany in the year 2008. It is equipped with a Siemens Sinumerik 840D control unit. The machine operates with a workpiece maximum diameter of 1000 mm and a normal module range between 2 - 13 mm.

Overview

brand: Klingelnberg
year: 2008
MODEL: C 100 U
application type: Grinding
Location: Czech Republic
machine type: Cylindrical Grinding Machine
control unit brand: SIEMENS

Technical Information - Klingelnberg C 100 U

General Data

Measurements width: 6156 mm
Measurements depth: 3600 mm
Measurements height: 3200 mm
Machine weight: 38000 KG

Control Unit

Model: Sinumerik 840D
Brand: SIEMENS

Media

Power consumption: 80 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spiral bevel gear cutting machine
- - Max. Workpiece diameter: 1000 mm
- - Normal module range (min. – max. ): 2-13 mm
- - Tooth width (max. ): 160 mm
- - Smallest/largest number of teeth 6-180
- - Cutter head spindle speed (max. ) 75-133 with adapter
- - Workpiece spindle max. Mounting diameter: 360 mm
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
