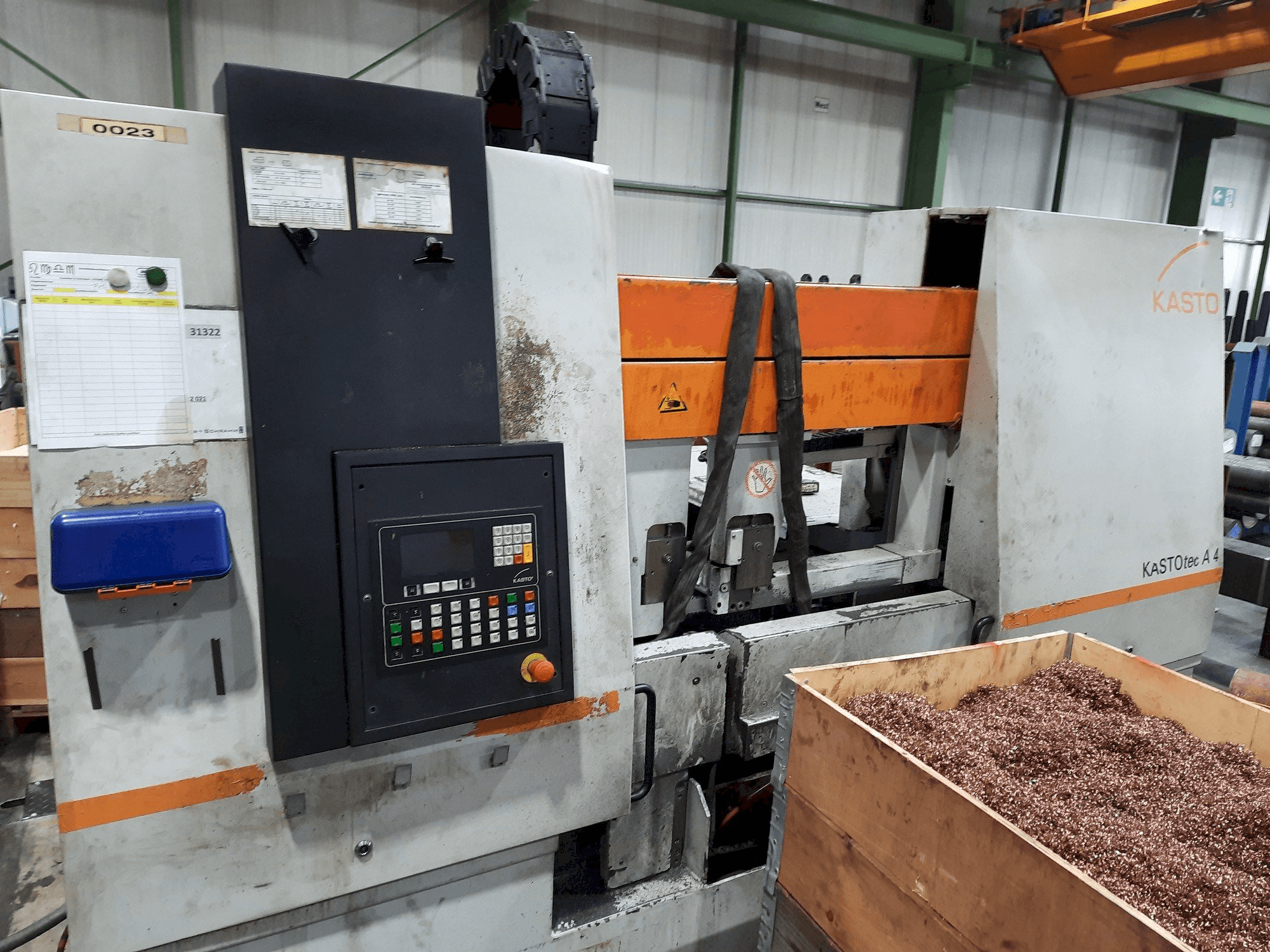

This KASTO tec A 4 Sawing Machine was manufactured in the year 2001. It is equipped with a control unit of the same brand. This machine can operate with a cutting range round 430 mm and a cutting speed infinitely variable 50-/60-Hz version up to 12 - 120 m/min.
Overview
- brand: KASTO
- year: 2001
- MODEL: tec A 4
- application type: Sawing
- Location: Germany
- machine type: Metal Band Saw
Technical Information - KASTO tec A 4
Dimensions
- Machine Depth: 2140 mm
- Machine Height: 2410 mm
- Machine Weight: 4300 kg
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Drive power saw motor 5. 5 kw; drive power at impeller 5. 23 kw
- Cutting speed infinitely variable 50-/60-hz version 12 - 120 m/min
- Automatic material feed length single 600 mm
- Automatic material feed length multiple 9999 mm
- Clamping force machine vice 2000 - 8000 n
- Clamping force feed vice 2000 - 15000 n
- Saw blade dimensions 6830 x 41 x 1. 3 mm
Technical Machine Benefits
- Cutting range round 430 mm
- Cutting area square h x w 430 x 430 mm
- Cutting area flat h x w 430 x 430 mm
- Bundle cutting range h x w (option) 430 x 430 mm
- Clamping range 0 - 430 mm
- Smallest dimension to be cut 10 x 10 mm
- Smallest cut-off length 6 mm
- Shortest remaining piece length in automatic mode (only possible with geometrically perfect surfaces) 35 mm
- Shortest remaining piece length in single cut 10 mm
- Material support height 700 mm; height (saw frame lowered) approx. 2195 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
