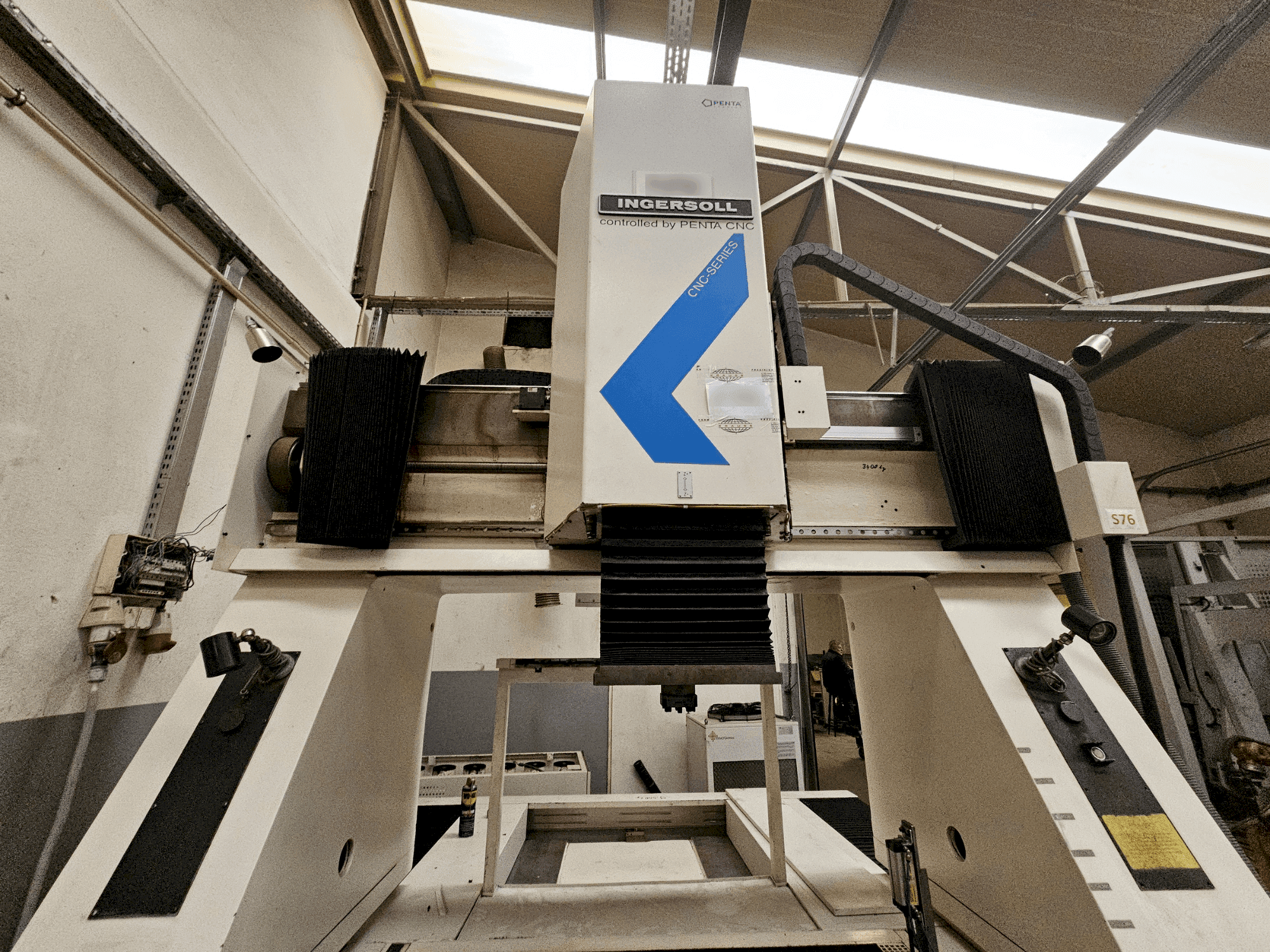

Front view of INGERSOLL IG1300 PENTA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

INGERSOLL IG1300 PENTA

INGERSOLL - IG1300 PENTAPL-EDM-ING-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
INGERSOLL IG1300 PENTA (2017) Erosion machine

Show in original language

This INGERSOLL IG1300 PENTA (2017) Erosion machine was refurbished by PENTA in 2017. Operated by a BECKHOFF PENTA CNC Control it has 4-axes (X = 900mm / Y = 690 mm / Z = 550 mm / C = 360 degress). With table dimensions of 1150 x 950 mm it can operate with a table load of max. 4000 kg. It is still under power, in very good condition and can be inspected at any time.

Overview

brand: INGERSOLL
year: 2017
MODEL: IG1300 PENTA
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: BECKHOFF

Technical Information - INGERSOLL IG1300 PENTA

General Data

Measurements width: 3030 mm
Measurements depth: 4900 mm
Measurements height: 3400 mm

Control Unit

Model: PENTA CNC
Brand: BECKHOFF

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 690 mm (to tool changer 1240 mm)
Z-AXIS Movement: 550 mm

Table

Outer length: 1150 mm
Outer width: 950 mm
Number of tslots: 12 x 12 H8
Dielectic level: 1700 l
Table load: 4000 kg

Additional Equipment

- Dielectric tank capacity: 1700 l
- 3R tool system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Z axis: 550 mm
- - C axis: 360 degrees
- - Generator power: 120a (penta)
Qualitative Machine Benefits:
- - Rebuilt by penta in 2017 and serviced on an ongoing basis

Extra information

- Full documentation available. Ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
