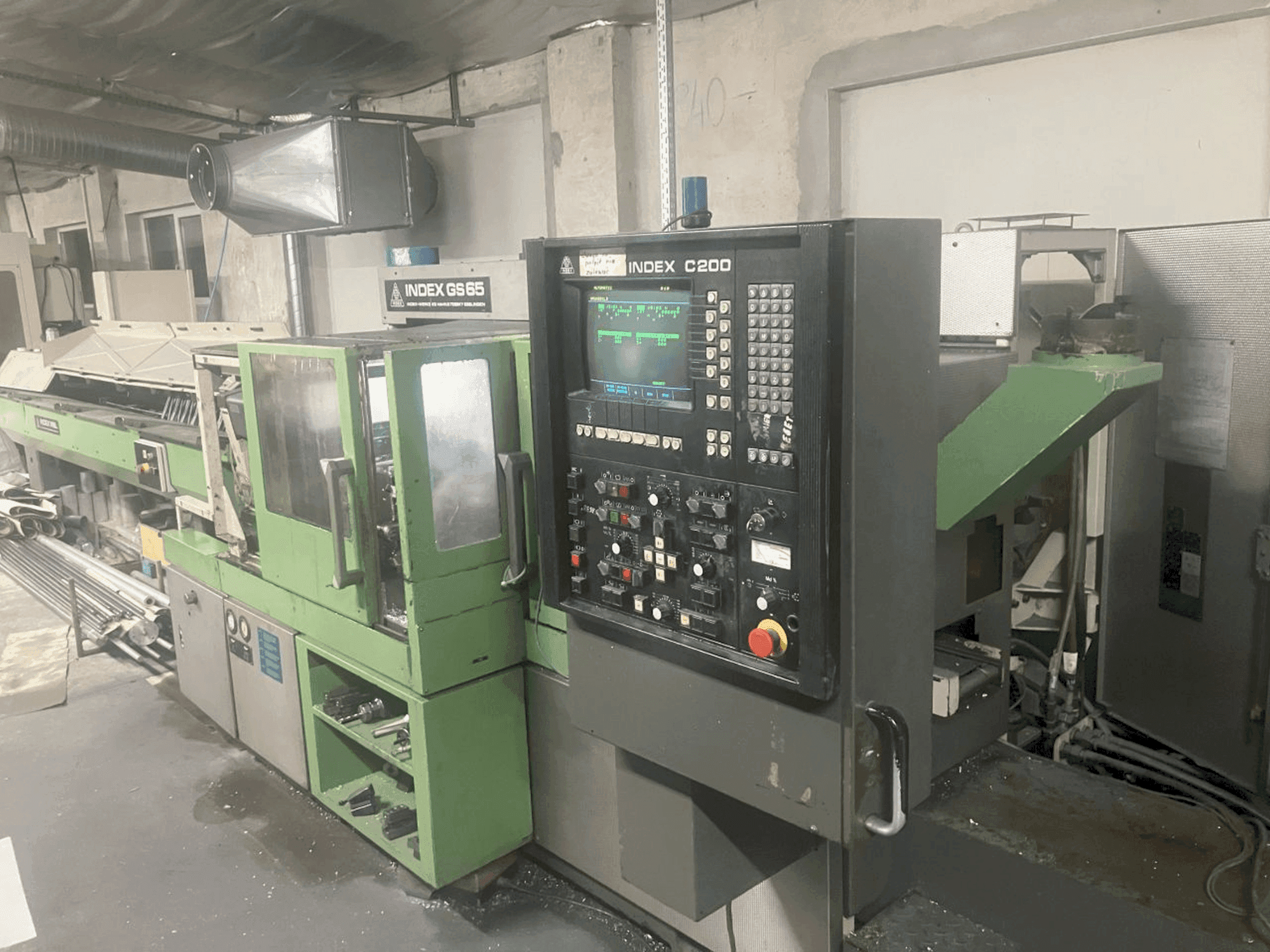

Index - GS65PL-TUR-IND-1992-00001

Additional Equipment

• - Bar feeder
• - Slide travel Z-axis (longitudinal): Revolver 1: 550 mm / Revolver 2: 250 mm
• - Slide travel X-axis (transverse): Revolver 1: 163 mm / Revolver 2: 140 mm
• - Turning diameter: Revolver 1: 200 mm / Revolver 2: 280 mm
• - Turning length: Revolver 1: 500 mm / Revolver 2: 250 mm
• - Spindle bore: 65 mm / Clamping diameter: 200 mm / Spindle front diameter: 110 mm / Spindle nose (according to DIN 6353): 140 mm
• - Power at 100% duty cycle (60% ED): 36 kW (43 kW) / Drive type: Direct drive / Speed range I: 25 to 2500 rpm / Torque at spindle (range I): 265 Nm (315 Nm) / Speed range II: 50 to 5000 rpm/ Torque at spindle (range II): 132 Nm (155 Nm)
• - options included: about 40 pcs spindle reduction sleeves, 6 live tool holders, and about 30 fixed tool holders.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Spindle bore diameter: 65 mm

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
