➤ Used IMA BIMA CUT 120/300 For Sale | gindumac.com

Show in original language

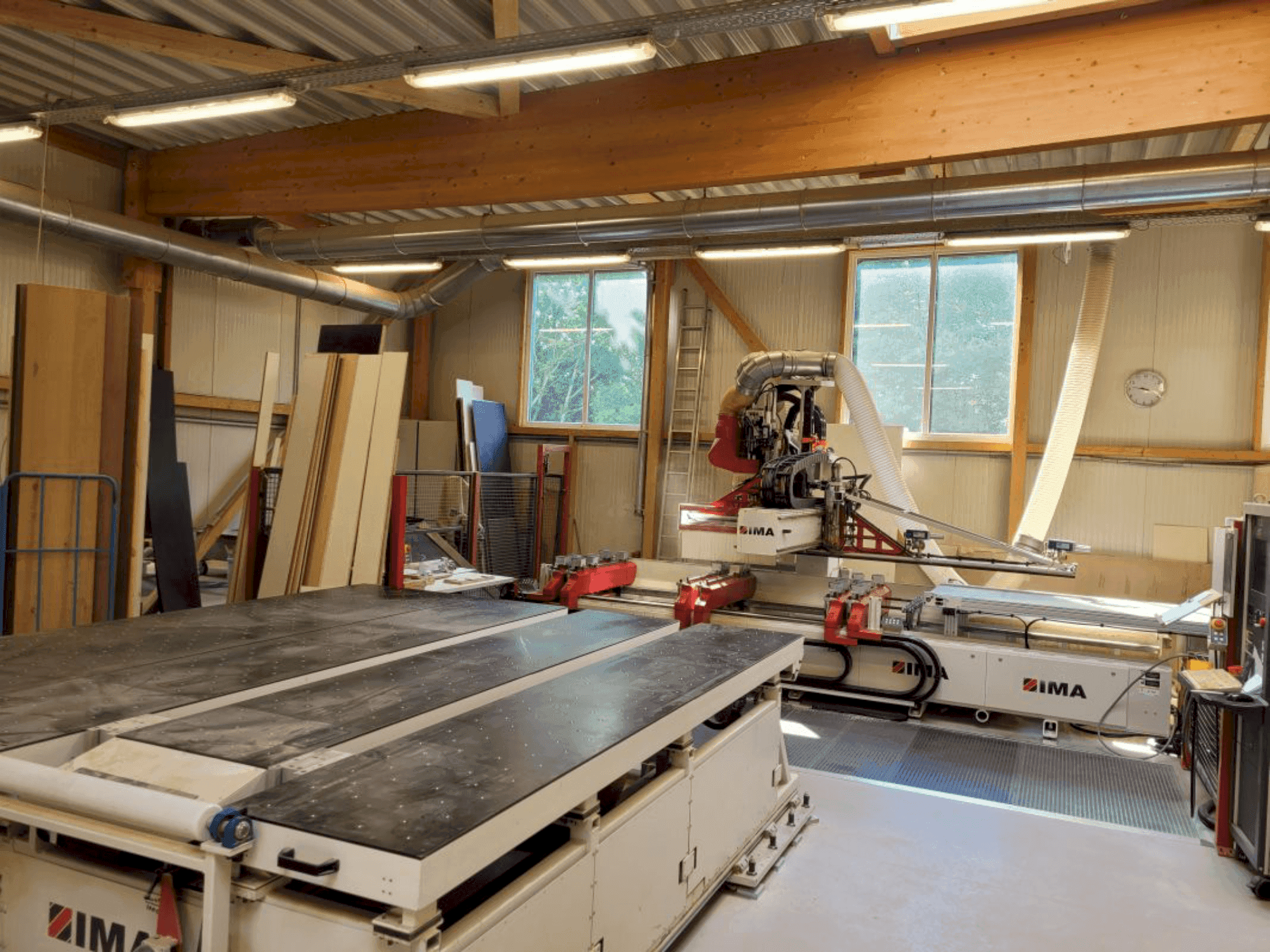

This IMA BIMA CUT 120/300 was manufactured in 2008. It features a 4-axis milling spindle with a power of 7.5 KW and speeds ranging from 8000 to 24000 rpm, complemented by an 18-fold automatic tool changer. The machine includes a vacuum pump of 100 m³/h and a driven conveyor belt for efficient discharge transport. Consider the opportunity to buy this IMA BIMA CUT 120/300 CNC processing center. Contact us for more information about this machine.

Overview

brand: IMA
year: 2008
MODEL: BIMA CUT 120/300
production hours: 0
application type: CNC Wood Machining
Location: Germany
machine type: CNC Processing Center

Technical Information - IMA BIMA CUT 120/300

General Data

Machine weight: 6200 kg

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1200 mm

Tools

Max weight: 6 kg
Max tool diameter: 100 mm

Additional Equipment

- Automatic central lubrication
- Volautomatic set-up table
- Safety tread mats
- IMAWOP 6.0
- Suction traverse at delivery for automatic discharge transport
- Driven conveyor belt for discharge transport

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 6 continuously adjustable support arms in x-direction with one front stop each
- - 18 vacuum cups: 100 mm x 100 mm x 50 mm
- - Automatic slide-in table dimensions: x = 2800 mm, y = 2800 mm, z = 34 mm
- - 4-axis milling spindle: 7. 5 kw, 8000-24000 rpm, automatic 18-fold rotation changer
- - 3-axis milling spindle: 4 kw, 7500-12000 rpm, manual tool changer
- - Drilling unit with 21 individually controllable vertical spindles
- - Adapter unit saw: 90 degrees fixed // adapter unit: horizontal drilling and milling head (cross head)
- - Vacuum pump: 100 m³/h
- - Extraction connection: d = 250 mm, single extractions with automatic slide controls
- - Compressed air: 7 bar constant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
