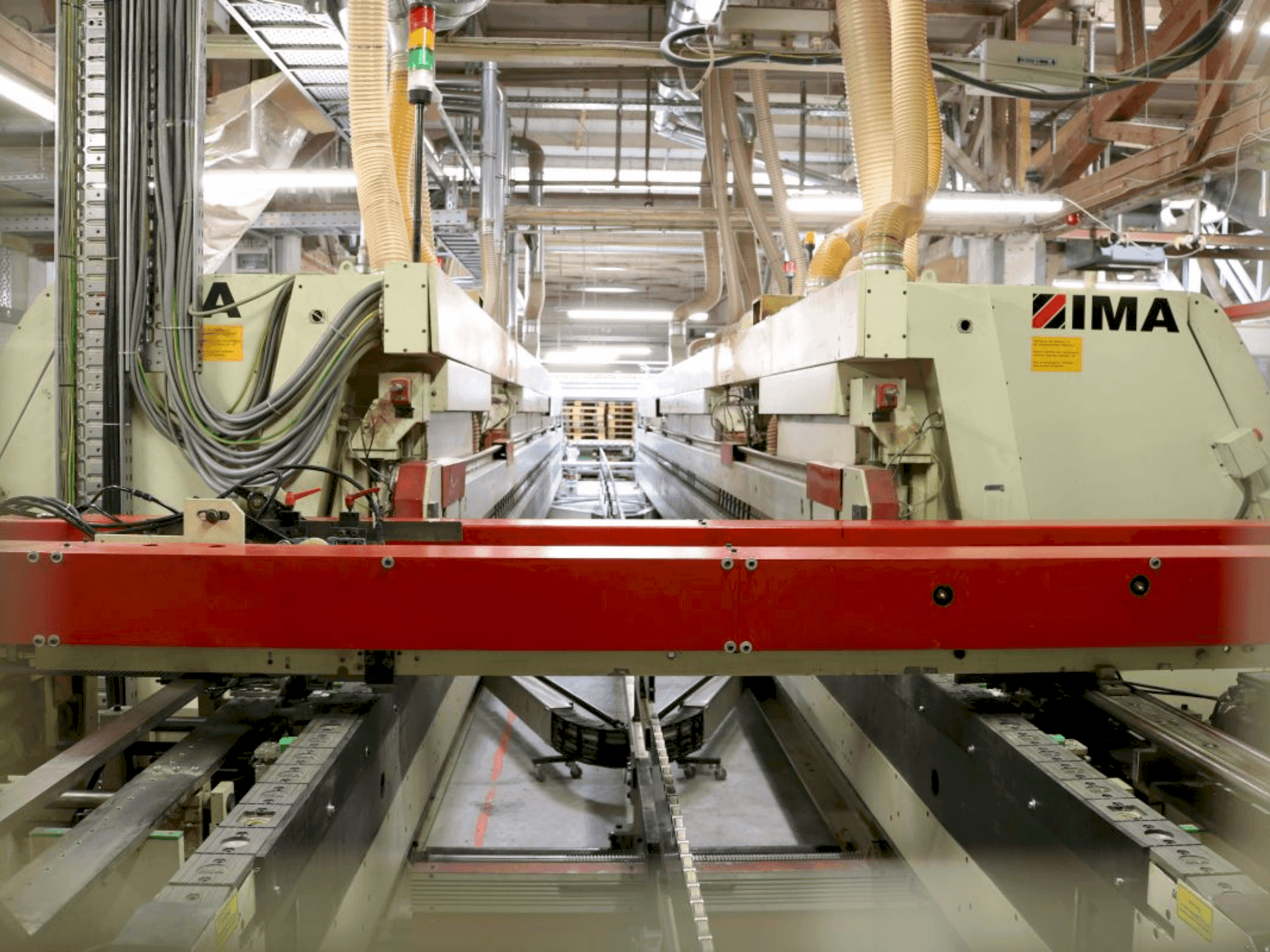

This woodworking machine was manufactured in 1995 by IMA. It features an angle transfer for connecting two machines at a 90-degree angle, enhancing production line efficiency. Equipped with its own drives for feed and width adjustment, it includes transport chains and electronically adjustable workpiece holding rails. Throughput speed ranges from 20-100 m/min with a maximum passage width of 1000 mm. A great opportunity to buy this IMA Angular transfer woodworking machine. For more information about this woodworking machine, please reach out to us.
Overview
- brand: IMA
- year: 1995
- MODEL: Angular transfer
- application type: Other Woodworking Machinery
- Location: Germany
- machine type: Other (Wood)
- availability: Immediately
Technical Information - IMA Angular transfer
Additional Information
- Technical Machine Benefits:
- - Efficient workpiece transfer between machines at different angles enhances production line integration.
- - Adjustable speeds and widths accommodate various sizes and types of wood pieces.
- - Electronic dimensional preselection and tolerance monitoring ensure precision in workpiece handling.
- - Drop height: 200 mm.
- - Outlet side working height: 1,215 mm.
- - Throughput speed: 20-100 m/min.
- - 1st machine - passage width min. 230 mm, max. 1,000 mm.
- - 2nd machine - max. Passage width 3,150 mm.
- - Inlet side working height: 1,215 mm.
- - Dimensional preselection and tolerance monitoring. Controllable workpiece holding rails on 1 floor.
- Qualitative Machine Benefits:
- - Enhanced precision and adaptability in handling different sizes of wood pieces.
- - Improved integration and efficiency in production lines.
- - Own drive for the feed.
- - Own drive for the width adjustment
- - Transport chains and controllable workpiece holding rails.
- - Electronic width adjustment via a pole-changing asynchronous three-phase motor with electronic
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
