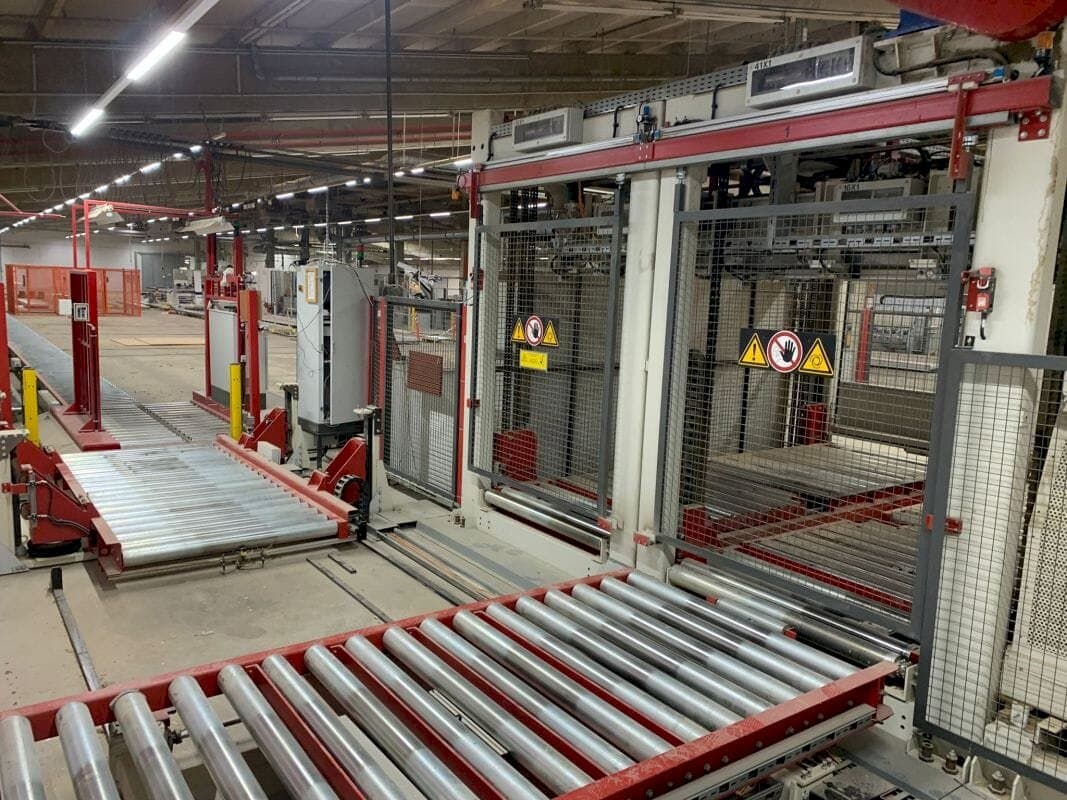

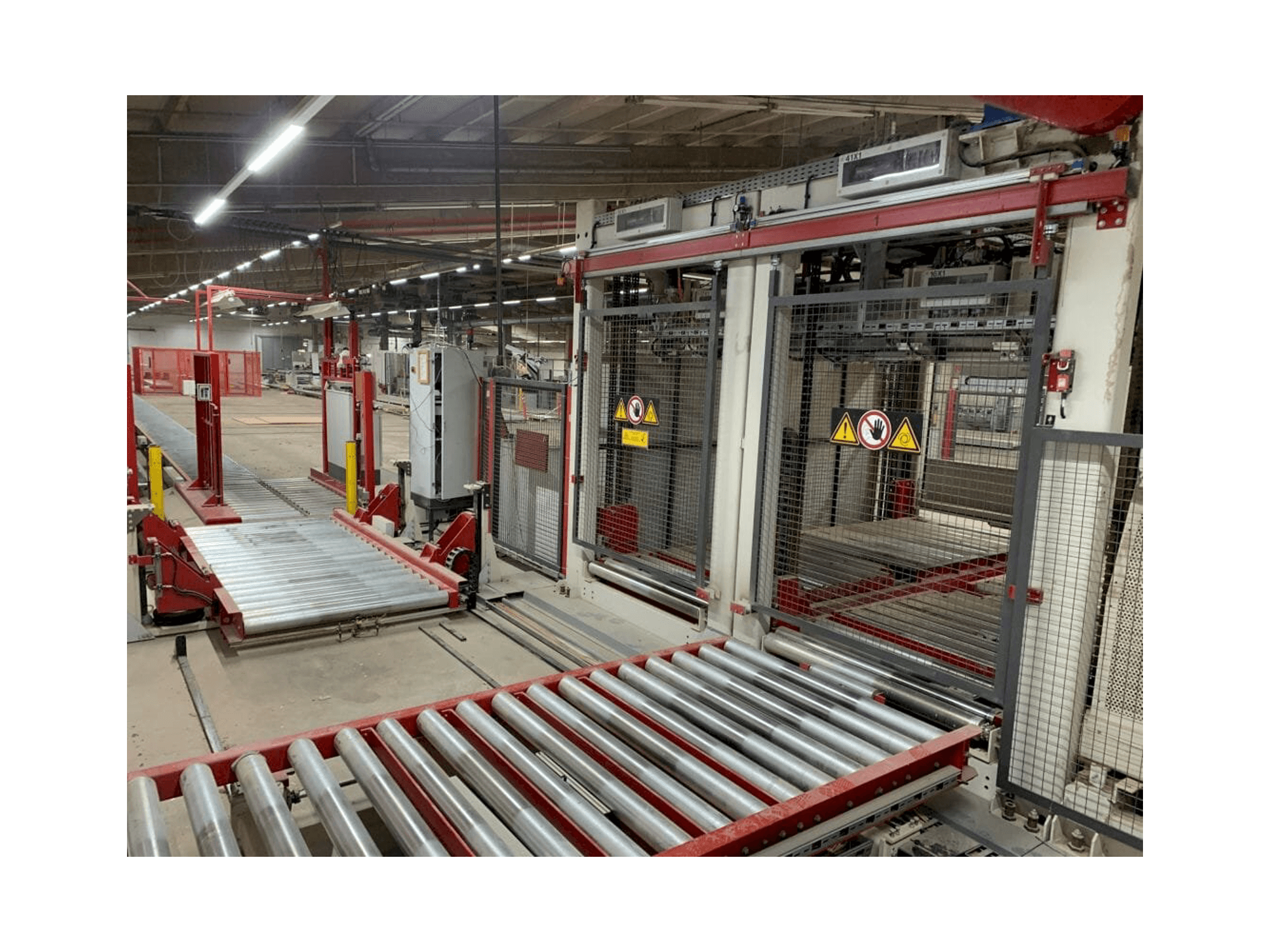

IMA - AM33 - 3000 /1300 SystemsDE-SAN-IMA-2005-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max. 28 cycles/min for single stacks
  • - Max. 50 panels/min when collecting multiple panels in the feed direction
  • - Max. 50 panels when collecting 2 panels on top of each other (special version of the infeed belt conveyor)
  • - Infeed belt conveyor before the system (special version: pneumatically liftable and lowerable for stacking 2 parts on top of each other)
  • - Infeed belt conveyor in the paternoster
  • - 2 paternoster walls – fixed side and motor-adjustable loose side
  • - Synchronized stop adjustment – infeed and stacking positions
  • - Am 33: 2 stacking positions on a lifting device with a powered roller conveyor
  • - Personnel safety system consisting of protective fences and automatic sliding doors
  • - Control cabinet according to vde regulations
• Qualitative Machine Benefits:
  • - Pc control system housed in a separate pc cabinet
