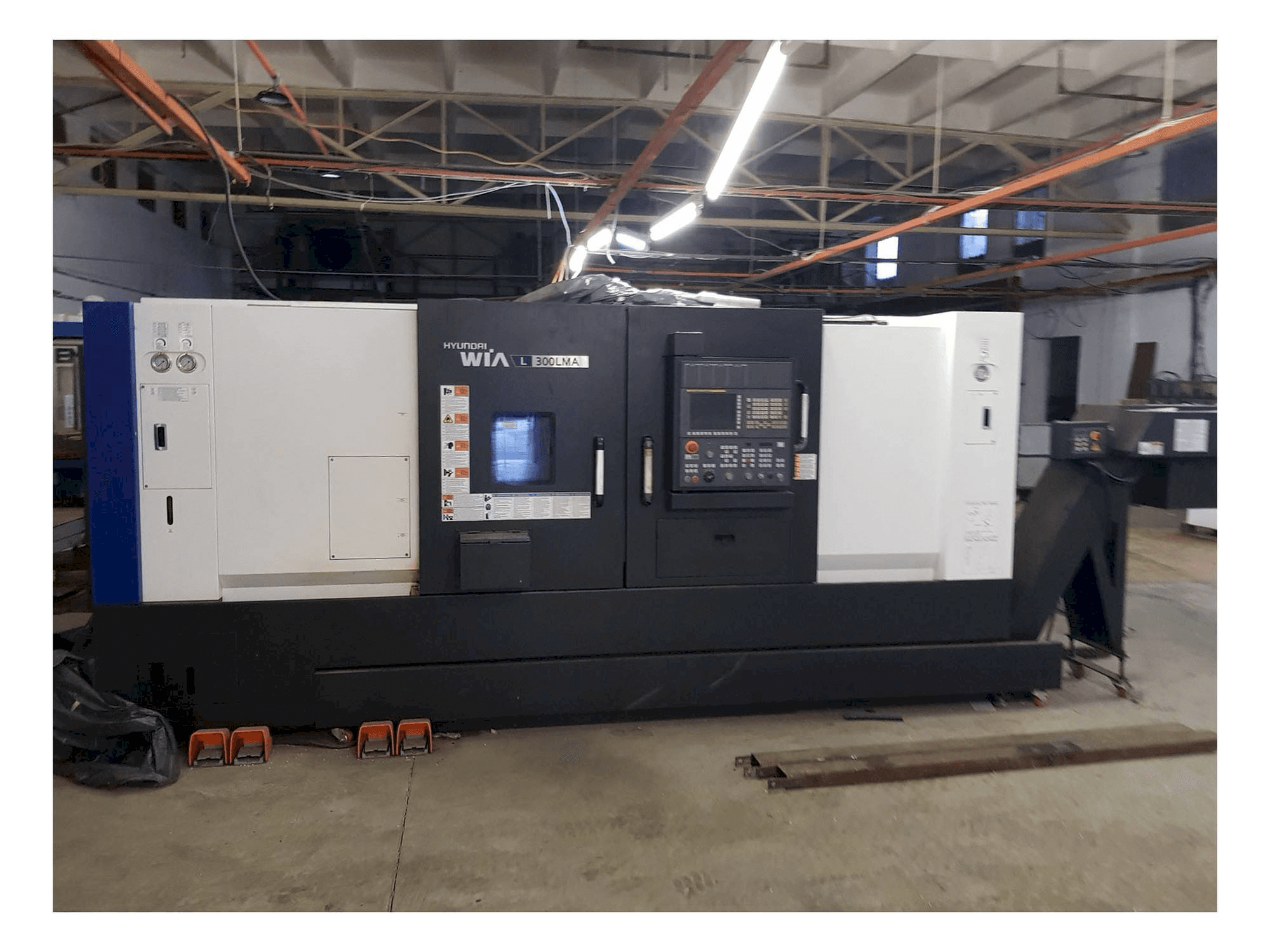

Front view of Hyundai Wia L300LMA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L300LMA

Photo Gallery

Hyundai Wia - L300LMAHU-TUR-HYU-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L300LMA Horizontal Lathe

Show in original language

This Hyundai Wia L300LMA Horizontal Lathe was made in 2017 in Korea and has only 421 production hours. It is equipped with a Fanuc Series 32i-B control unit. The machine has a spindle speed of 3500 rpm.

Overview

brand: Hyundai Wia
year: 2017
MODEL: L300LMA
production hours: 421
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Hyundai Wia L300LMA

General Data

Measurements width: 2002 mm
Measurements depth: 4171 mm
Measurements height: 1997 mm
Machine weight: 7700 kg

Control Unit

Model: Series 32i-B
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22/18.5 kW

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter over machine bed: 750 mm
- - Diameter over cross slide: 480 mm
- - Max. Machinable diameter: 410 mm
- - Max. Machinable length: 1280 mm
- - Chuck size main spindle: 10
- - Torque (max/running) {nm} 493,2/414,7
- - Max. Tool size (square tool clamp/circular tool clamp): 25/50 mm
- - Speed (x/z/b): 20/24 m/min
- - Range of motion (x/z/b) : 290/1350 mm
- - Range of movement of clamping of segment: 1350 mm
Qualitative Machine Benefits:
- - Lubricant tank volume: 1,8 l
- - Coolant tank volume: 270 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
