Hyundai Wia L210LA Lathe machine

Show in original language

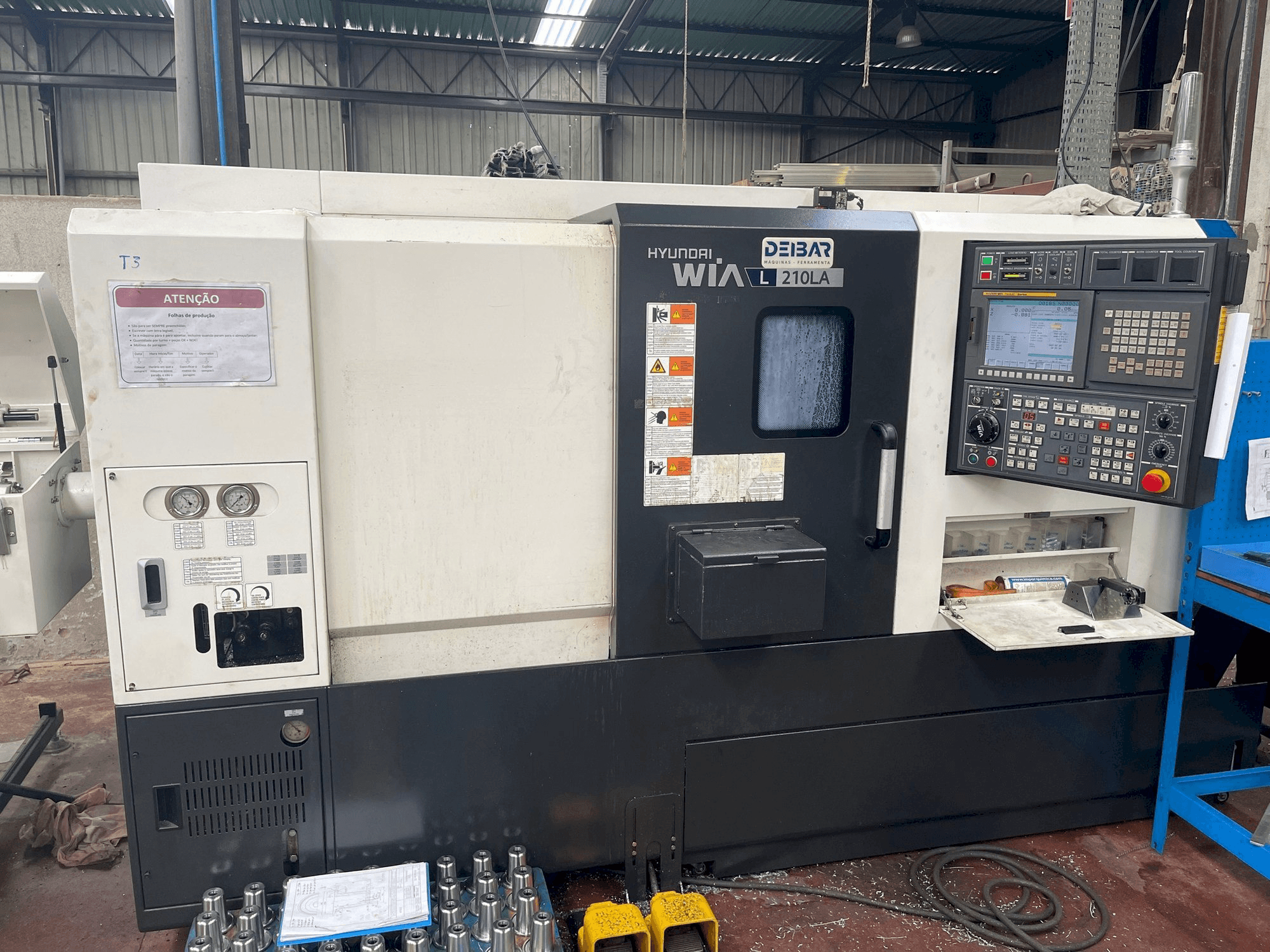

This Hyundai Wia L210LA Lathe machine was manufactured in Korea in 2016. This machine is operated by a FANUC control unit. It works with a spindle speed up to 4000 rpm and has 11408 working hours of which 2886 are cutting hours. A programmable tailstock MT4, and presetter are included.

Overview

brand: Hyundai Wia
year: 2016
MODEL: L210LA
production hours: 11408
application type: Turning
Location: Portugal
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - Hyundai Wia L210LA

General Data

Measurements width: 2900 mm
Measurements depth: 1650 mm
Measurements height: 1870 mm
Machine weight: 4200kg

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 210 mm
X-AXIS Rapid traverse: 36 M/MIN
Y-AXIS Movement: 430 mm
Y-AXIS Rapid traverse: 36 M/MIN

Turret

Number of turrets: 12

Additional Equipment

- Presetter is included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over the bed 550 (21. 7″) mm(in)
- - Swing over the carriage 350 (13. 8″) mm(in)
- - Max. Turning dia. 350 (13. 8″) mm(in)
- - Max. Turning length 530 (20. 9″ mm(in)
- - Bar capacity 65 mm
- - Chuck size 169 (6. 7″) mm(in)
- - Spindle bore 78 (3″) mm(in)
- - Spindle type - belt
- - Spindle nose - a2-6
- - Tailstock travel 520 mm
Qualitative Machine Benefits:
- - Programmable tailstock mt4
- - Motor (max/cont. ) kw(hp) 15/11(20/15) [22/18. 5 (29. 5/24. 8)]
- - Torque (max/cont. ) n. M(lbf. Ft) 286. 4/210(211. 2/154. 9) [252/211. 9(185. 9/156. 3)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
