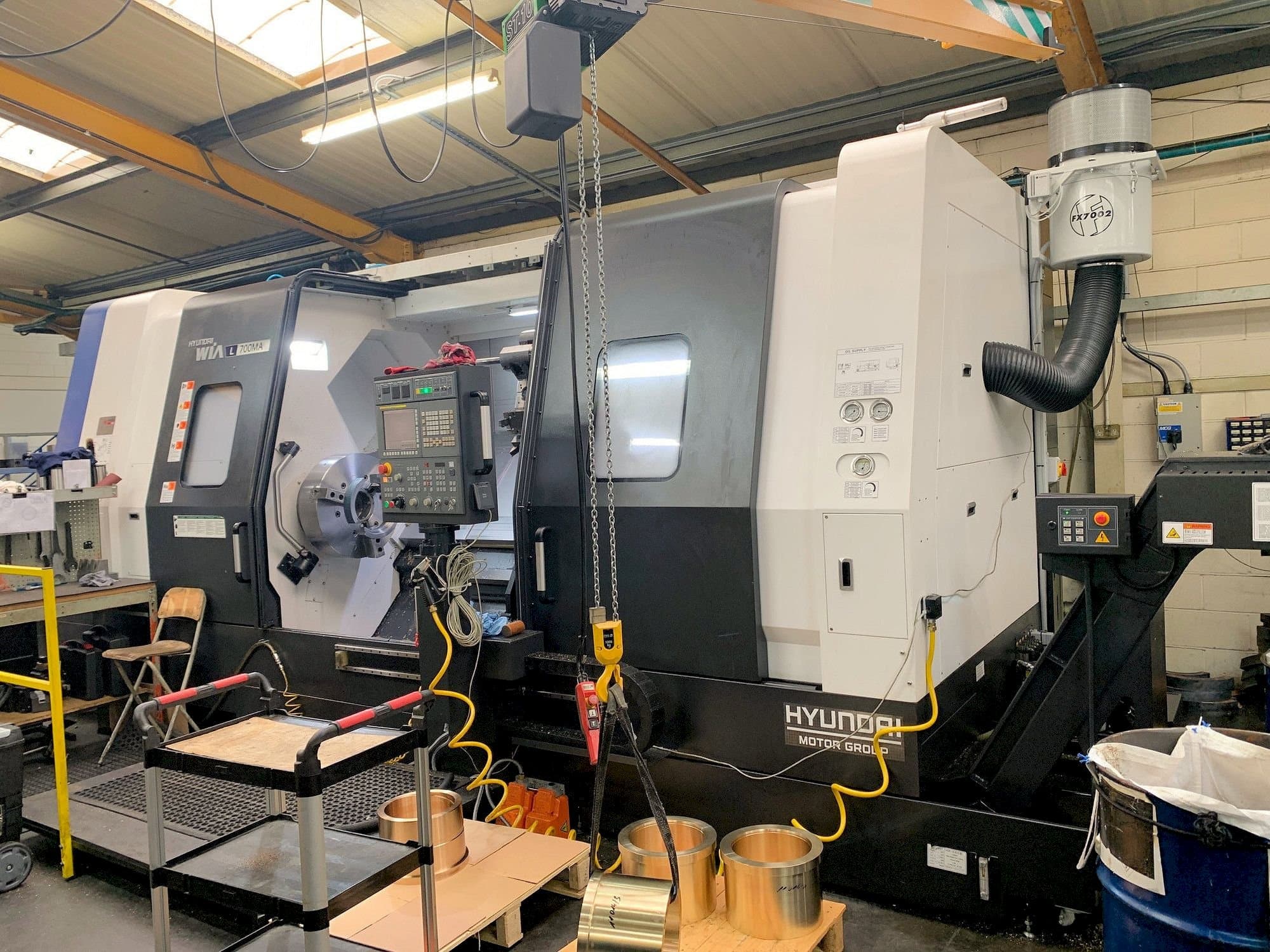

This Hyundai Wia L 700MA lathe was manufactured in 2019. This 3 axis machine has a spindle speed up to 1500 rpm and a bar capacity 165 mm. It is in very good condition.
Overview
- brand: Hyundai Wia
- year: 2019
- MODEL: L 700MA
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
Technical Information - Hyundai Wia L 700MA
Dimensions
- Machine Depth: 3075 mm
- Machine Height: 2700 mm
- Machine Weight: 18000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 500 mm
- Z-axis Travel: 1680 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 45 kW
- Spindle Speed: 1500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition of the machine
Technical Machine Benefits
- Swing over bed 1050 mm, over carriage 820 mm
- Maximum machining diameter 920 mm
- Maximum machining length 1650 mm
- Bar capacity 165 mm
- Milling power 11 kw; speed 3000 rpm
- 0. 001 degree c axis
- Chuck size 24''
- C axis & milling function
- Tool setter, coolant, tailstock, tooling
- 3 controlled axes (x, z, c)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
