➤ Used Hyundai HIT-18S - Lathe For sale | gindumac.com

Show in original language

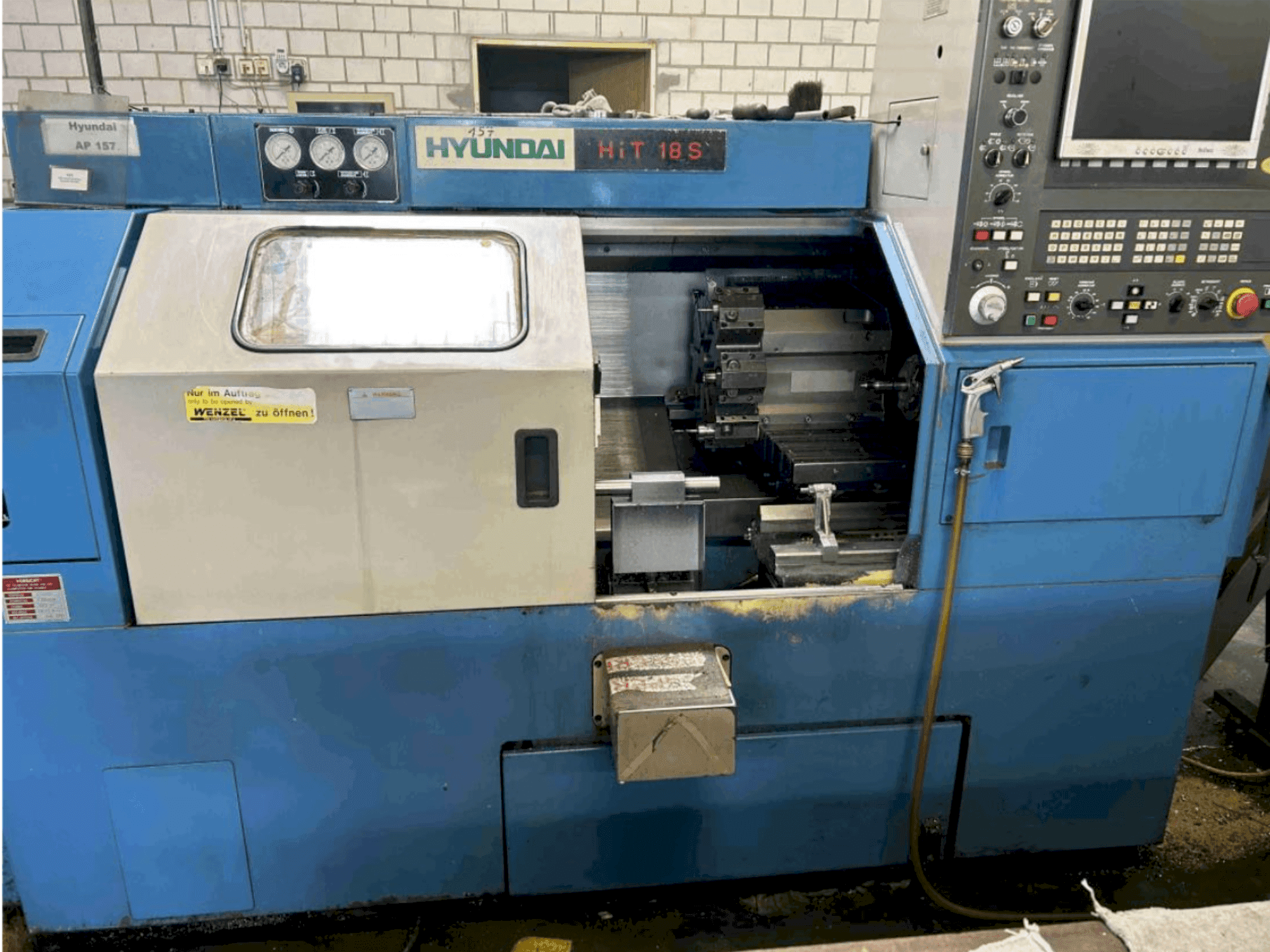

This Hyundai HIT-18S lathe was manufactured in 1998. It features a spindle speed of 3600 rpm, a spindle diameter of 70 mm, and a motor power of 15 kW. Equipped with a Siemens 840 C control, an 8-station turret, and a 3-jaw chuck, it is fully functional and ready for demonstration. Dimensions are 2600x1650x1830 mm, weighing 4300 kg. For more information about this lathe, please reach out to us.

Overview

brand: Hyundai
year: 1998
MODEL: HIT-18S
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - Hyundai HIT-18S

General Data

Measurements width: 2600 mm
Measurements depth: 1650 mm
Measurements height: 1830 mm
Machine weight: 4300 kg

Control Unit

Model: 840 C
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 3600 rpm 1/MIN
Spindle motor power: 15 kW
Number of axis: 2

Movement

X-AXIS Movement: 180 mm
Z-AXIS Movement: 510 mm

Tools

Number of stations: 8

Media

Chip conveyor: Yes

Additional Equipment

- 3-Jaw Chuck with Hollow Clamping Cylinder
- Fully Automatic Tool Presetter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece diameter: 254 mm
- - Maximum workpiece length: 500 mm
- - Fully functional and ready for immediate use.
Qualitative Machine Benefits:
- - Precision and reliability with siemens 840 c control.
- - Assurance of maintenance and operational history as it's 1st hand and from own use.

Extra information

- Machine under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
