Huron VX12

Photo Gallery

Huron - VX12PT-MIL-HUR-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

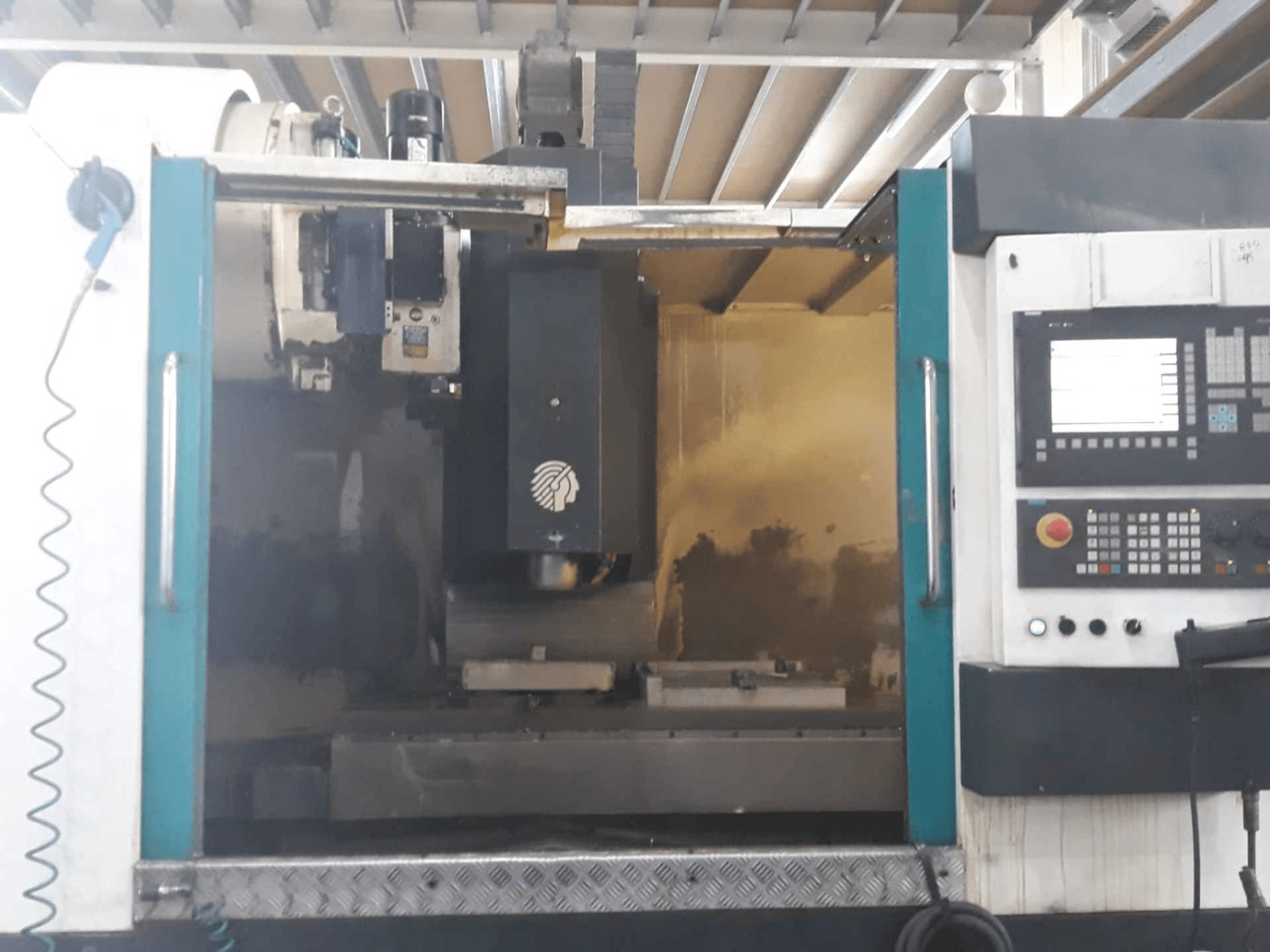

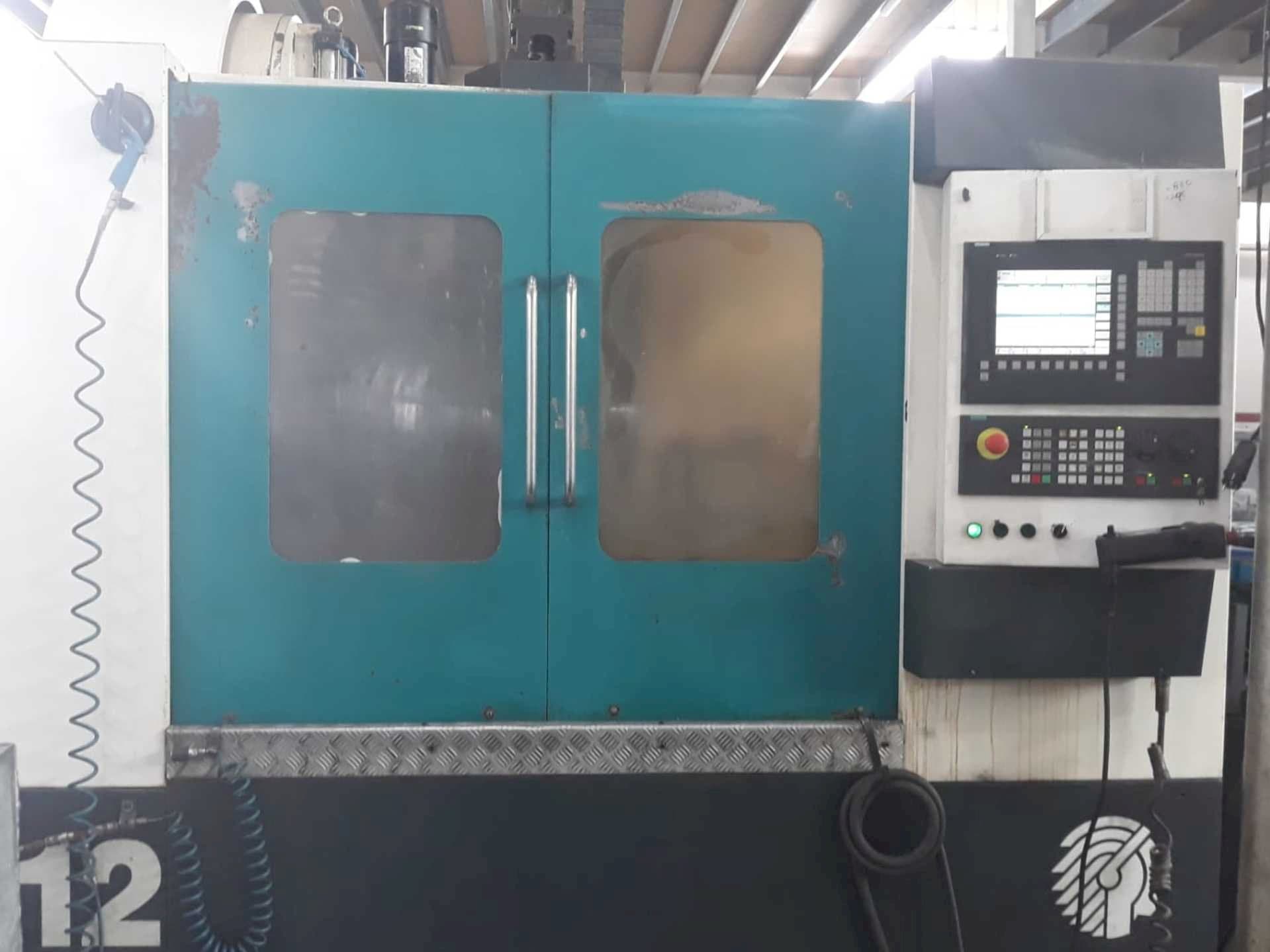

Huron VX12 Vertical Machine Center

Show in original language

This Huron VX12 Vertical Machine Center was built in the year 2008 in France. It is equipped with a Siemens 810D control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and is like new.

Overview

brand: Huron
year: 2008
MODEL: VX12
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Huron VX12

General Data

Measurements width: 2830 mm
Measurements depth: 3140 mm
Measurements height: 2990 mm
Machine weight: 8500 kg

Control Unit

Model: 810D
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 10.5 / 13 Kw
Number of axis: 3

Table

Outer length: 1400 mm
Outer width: 630 mm
Table load: 1200 kg

Tools

Type of tool holder: BT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Longitudinal travel x axis: 1220 mm
- - Cross travel y-axis: 600 mm
- - Vertical travel z-axis: 610 mm
- - Type: linear guide
- - Distance spindle nose / table area: 150 - 760 mm
- - Table height relative to the ground: 1075 mm
- - Grooves (width x spacing x no. ): 15 x 125 x 5 mm
- - Rapid traverse (x / y / z): 24/24/24 m / min
- - Working feeds (x / y / z): 10/10/10 m / min
- - Number of tolls: 30
Qualitative Machine Benefits:
- - Max tool diameter: 80 mm
- - Max tool length: 250 mm
- - Max tool weight: 7 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
