Huron kx10

Photo Gallery

Huron - kx10DE-MIL-HUR-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

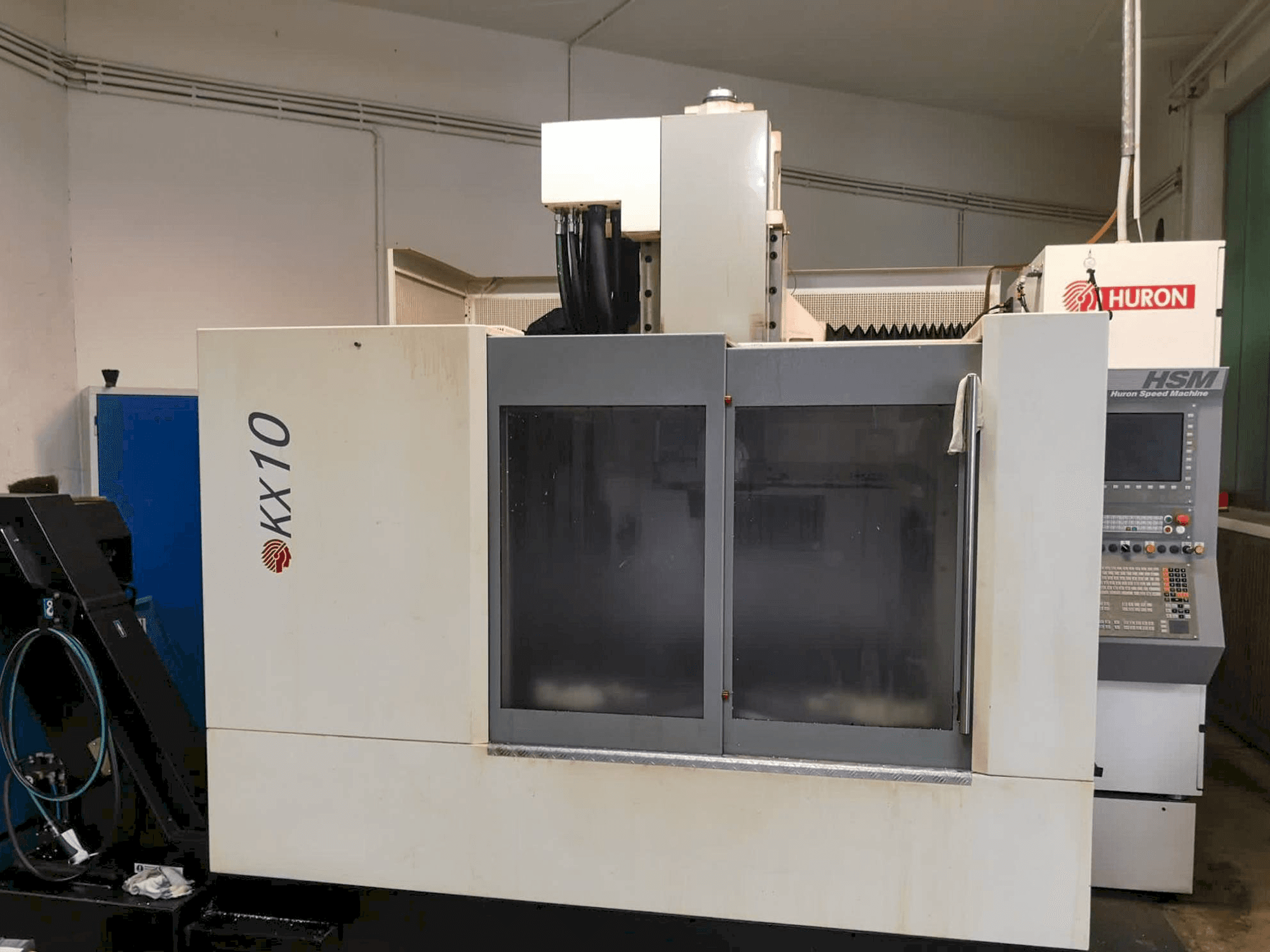

Huron kx10 Vertical Machining Center

Show in original language

This Huron kx10 Vertical Machining Center was manufactured in 2012. It shows a production record of 17907 hours. This 3 axis machine is operated through a HEIDENHAIN iTNC530 control unit. The machine works with a spindle speed range between 100 - 18000 rpm. The chip cover in the table front and rear was redone for around 8,500€ about 10 months ago.

Overview

brand: Huron
year: 2012
MODEL: kx10
production hours: 17907
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Huron kx10

Control Unit

Model: iTNC530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 100 - 18000 1/MIN
Spindle motor power: 25 kW
Tool taper: HSK 63 A
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 18000 mm/min

Table

Outer length: 1250 mm
Outer width: 700 mm

Media

Main electronic connection: 400 V / 50 Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

In 2020 the front and rear chip telescopic covers were renewed
The spindle has a stroke and has to be replaced over the long term
The machine runs perfectly

Technical Machine Benefits

Full fairing
Tool changer: 20 stations
Lp cooling through 3 nozzles: -30 l/mn
Flushing gun
Ethernet interface (cabling, installation and configuration of the network and the additional software)
Instruction manual in german on cd
Complete tool changer reworked by huron

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
