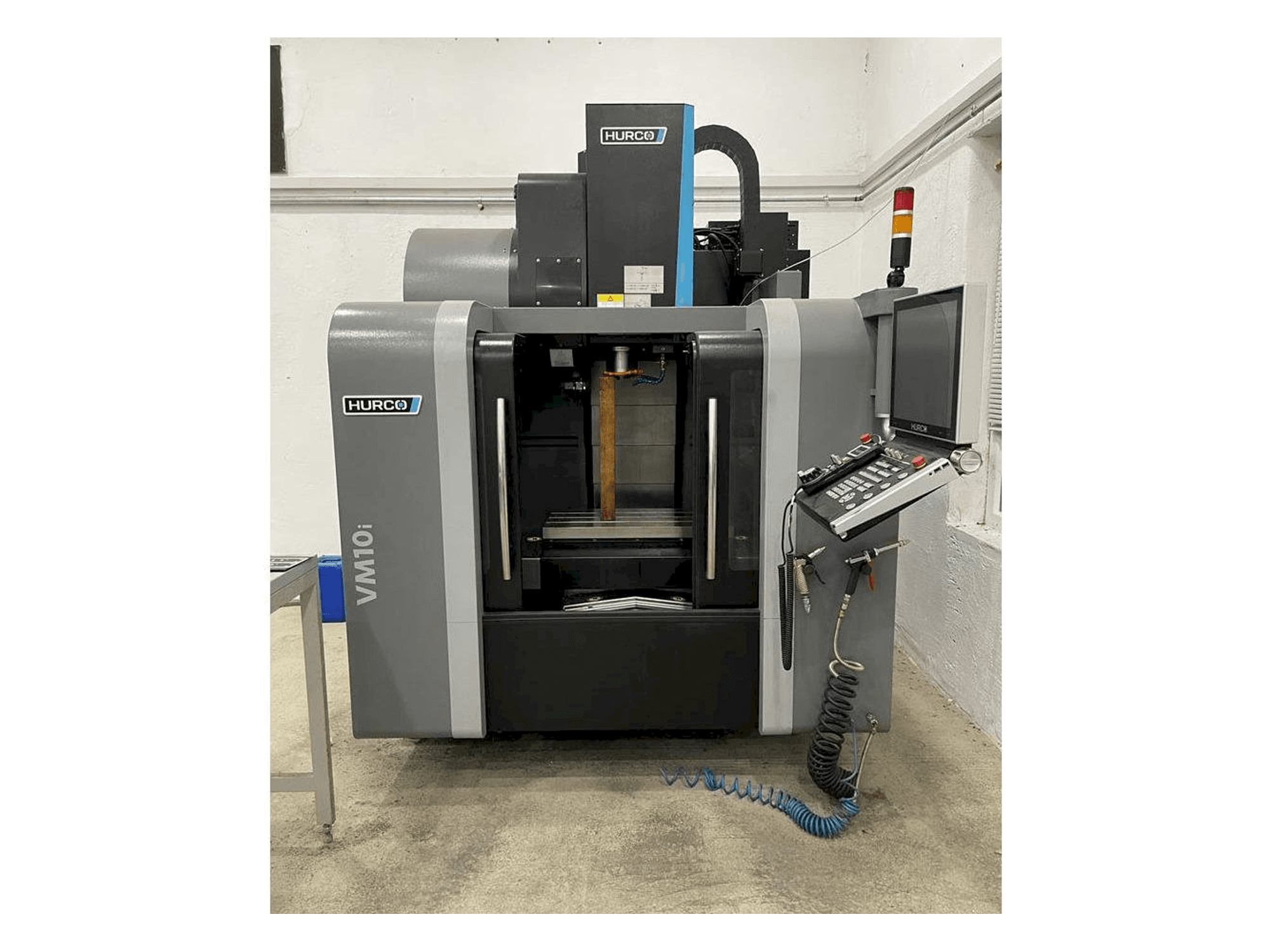

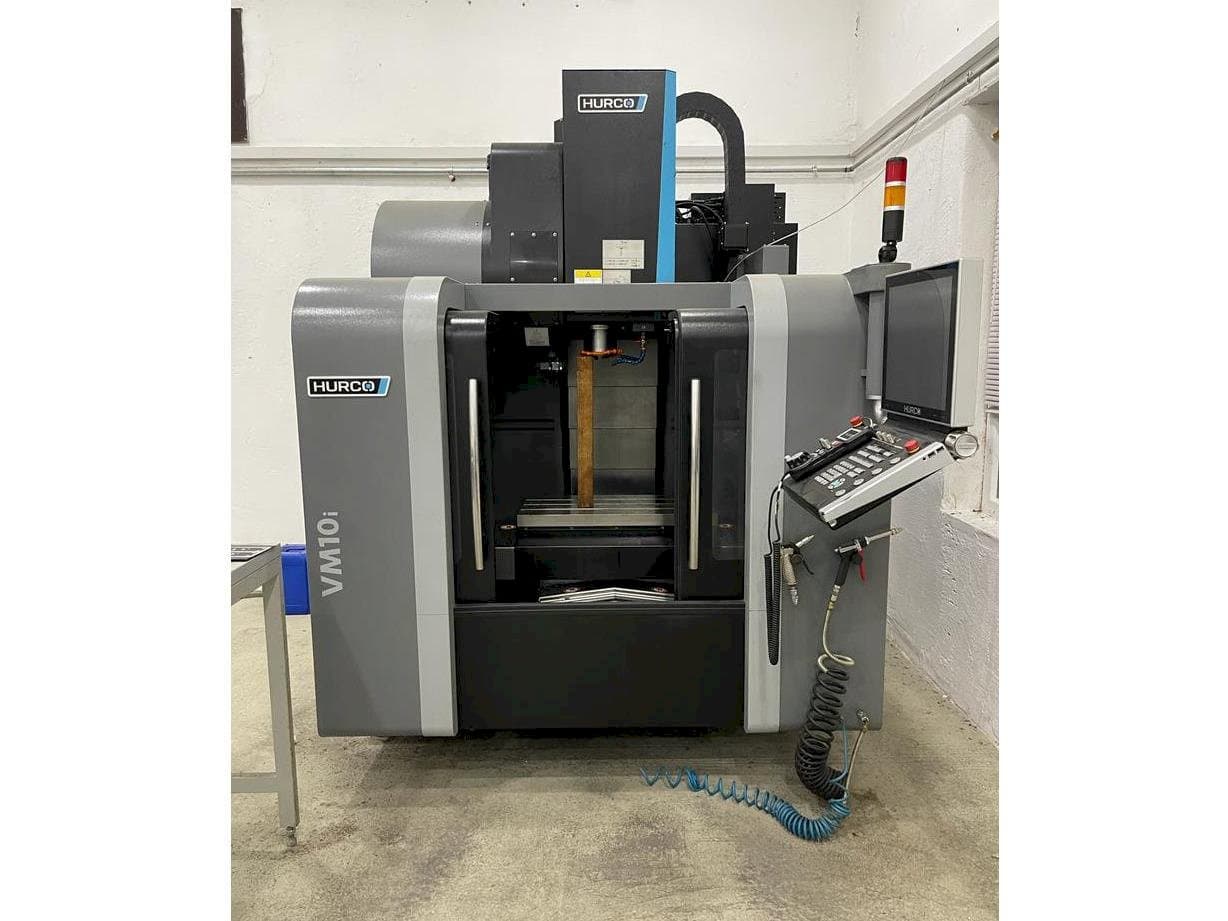

HURCO VM 10 i Vertical Machining center

Show in original language

This HURCO VM 10 i Vertical Machining center was manufactured in the year 2017 and has 500 production hours. It is equipped with a HURCO control unit. The machine has a spindle speed of 12000 rpm, is in perfect condition and well maintained.

Overview

brand: Hurco
year: 2017
MODEL: VM 10 i
production hours: 500
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco VM 10 i

General Data

Measurements width: 3204 mm
Measurements depth: 2931 mm
Measurements height: 2530 mm
Machine weight: 2818 kg

Control Unit

Brand: HURCO

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 11 kW

Movement

X-AXIS Movement: 660 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 08 mm

Table

Outer length: 762 mm
Outer width: 406 mm
Table load: 1500 kg

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 90 mm
Max tool length: 250 mm
Type of tool holder: CAT/BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque (peak - 1 min) 54. 3 ft. Lbs @ 1450 rpm (73. 6 nm @ 1450 rpm)
- - Spindle nose to table min. /max. 4 / 24 in (101. 6 / 609. 6 mm)
- - T-slot size 3 x 0. 71 in (3 x 18 mm)
- - Rapid traverse x,y,z axis 1100, 1100, 1100 in/min (28, 28, 28 m/min)
- - Max programmable feedrate 1102 inches/minute (28 m/minute)
- - Full load 15 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
