Hurco - VM 10 i PlusCZ-MIL-HUR-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Hurco VM 10 i Plus Vertical Machining Center

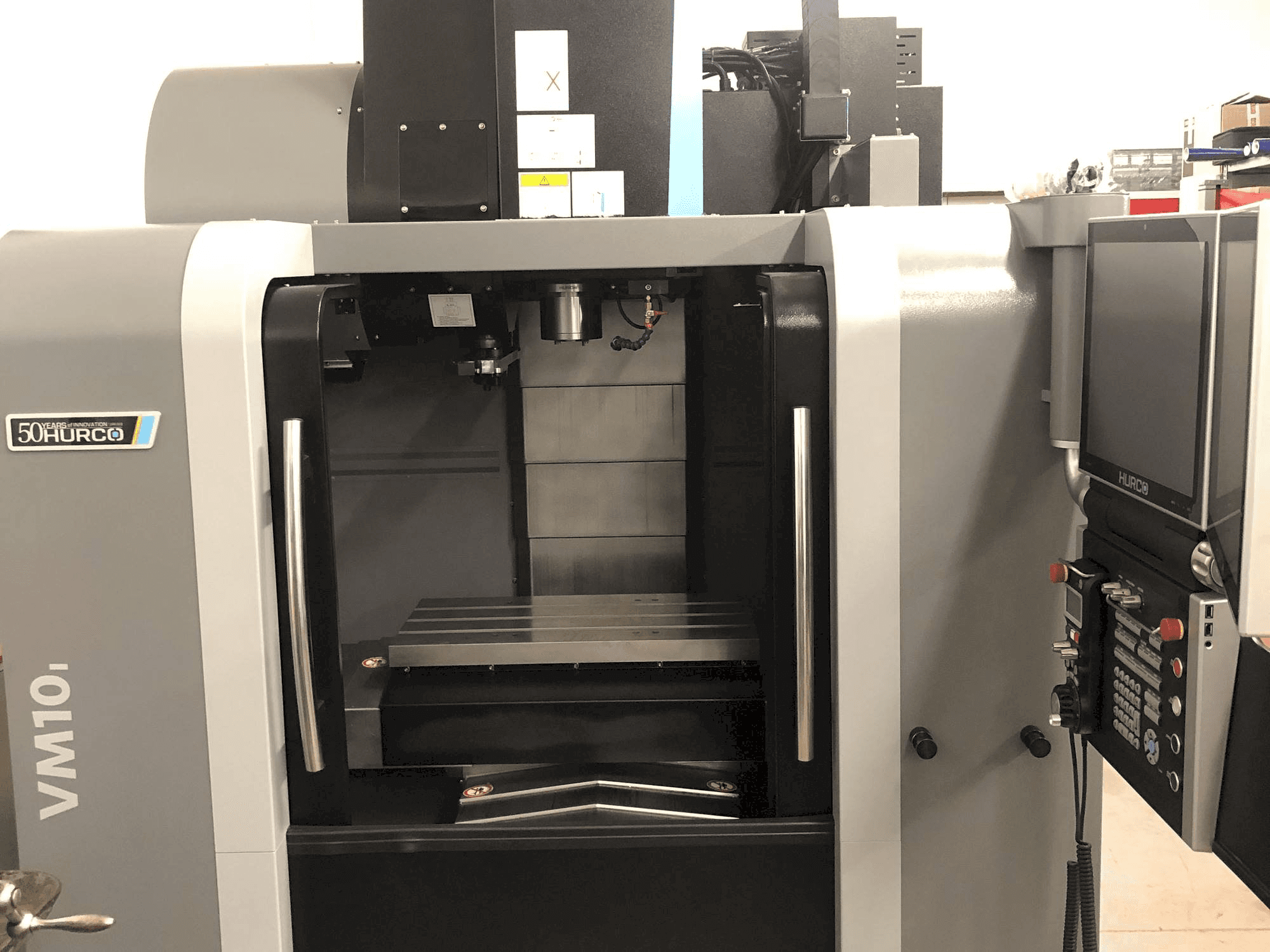

This Hurco VM 10 i Plus Vertical Machining Center was made in Germany in 2018. It has a production hours of only 486. It is operated with a WINMAX 5 GEN touch display control unit. This machine can work with a spindle speed range up to 12000 rpm. It is ready to work with 4th and 5th axis.
Overview
- brand: Hurco
- year: 2018
- MODEL: VM 10 i Plus
- production hours: 486
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
Technical Information - Hurco VM 10 i Plus
Dimensions
- Machine Depth: 3363 mm
- Machine Height: 2564 mm
- Machine Weight: 2850 kg
- Table Length: 762 mm
- Table Width: 406 mm
Movement
- X-axis Travel: 660 mm
- Y-axis Travel: 406 mm
- Z-axis Travel: 508 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Number of Tools: 20
- Spindle Power: 11 kW
- Spindle Speed: 12000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine like new
Technical Machine Benefits
- Spindle torque max. (nm) 61
- 4th and 5th axis ready
- 2x 19"lcd touch displays
- Hand-wheel premium with lcd display
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
