HTT KBR6-1008

Photo Gallery

HTT - KBR6-1008DE-MIL-HTT-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

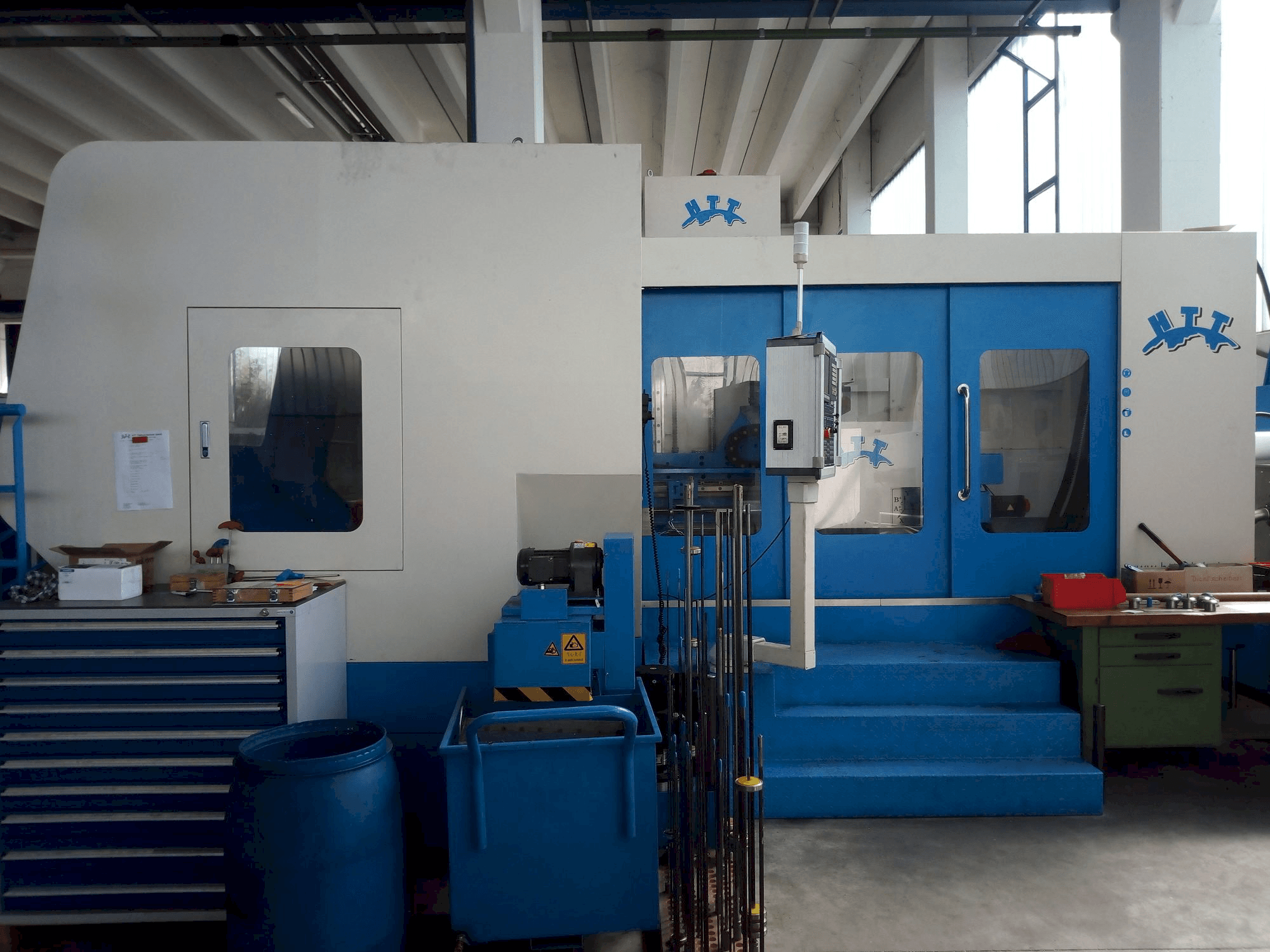

HTT KBR6-1008 Milling Machine

Show in original language

This HTT KBR6-1008 Milling Machine was built in 2017. It is equipped with a Fanuc Oi-MD control unit. This machine works with a spindle speed up to 6000 rpm, a drilling depth of 1000 mm in one stoke, and has a table dimension of 1000 x 1000 mm.

Overview

brand: HTT
year: 2017
MODEL: KBR6-1008
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold
control unit brand: FANUC

Technical Information - HTT KBR6-1008

General Data

Measurements width: 6800 mm
Measurements depth: 5500 mm
Measurements height: 3000 mm
Machine weight: 9000 kg

Control Unit

Model: Oi-MD
Brand: FANUC

Main drive

Spindle speed range: 100-6000 1/MIN
Spindle motor power: 7,5 kW
Drilling depth: 1000 mm

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 400 mm
W-Axis Movement: 1000 mm

Table

Outer length: 1000 mm
Outer width: 1000 mm
Table load: 5000 kg

Media

Main electronic connection: 380 V 50 Hz
Power consumption: 35 kW

Additional Equipment

- Additional coolant oil at external device for tools refrigeration

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Complete protection safeguard
- - Cooling capacity: oil tank 800l, max pressure 100 bar, max flow 85l/min
- - Chip conveyor: split the coolant oil of the metal chips, chip trolley
- - Tilting column and rotating work table (5 axis)
- - 4 liner axis x,y,z,w
- - Telescopic covers
- - Table controlled with servo system
- - External device for tools refrigeration
- - 1 piece adapter for gun drilling
- - 2 pieces travelling whip guides
Qualitative Machine Benefits:
- - Completely closed safeguard with sliding doors and removable back cover, easy for machine maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
