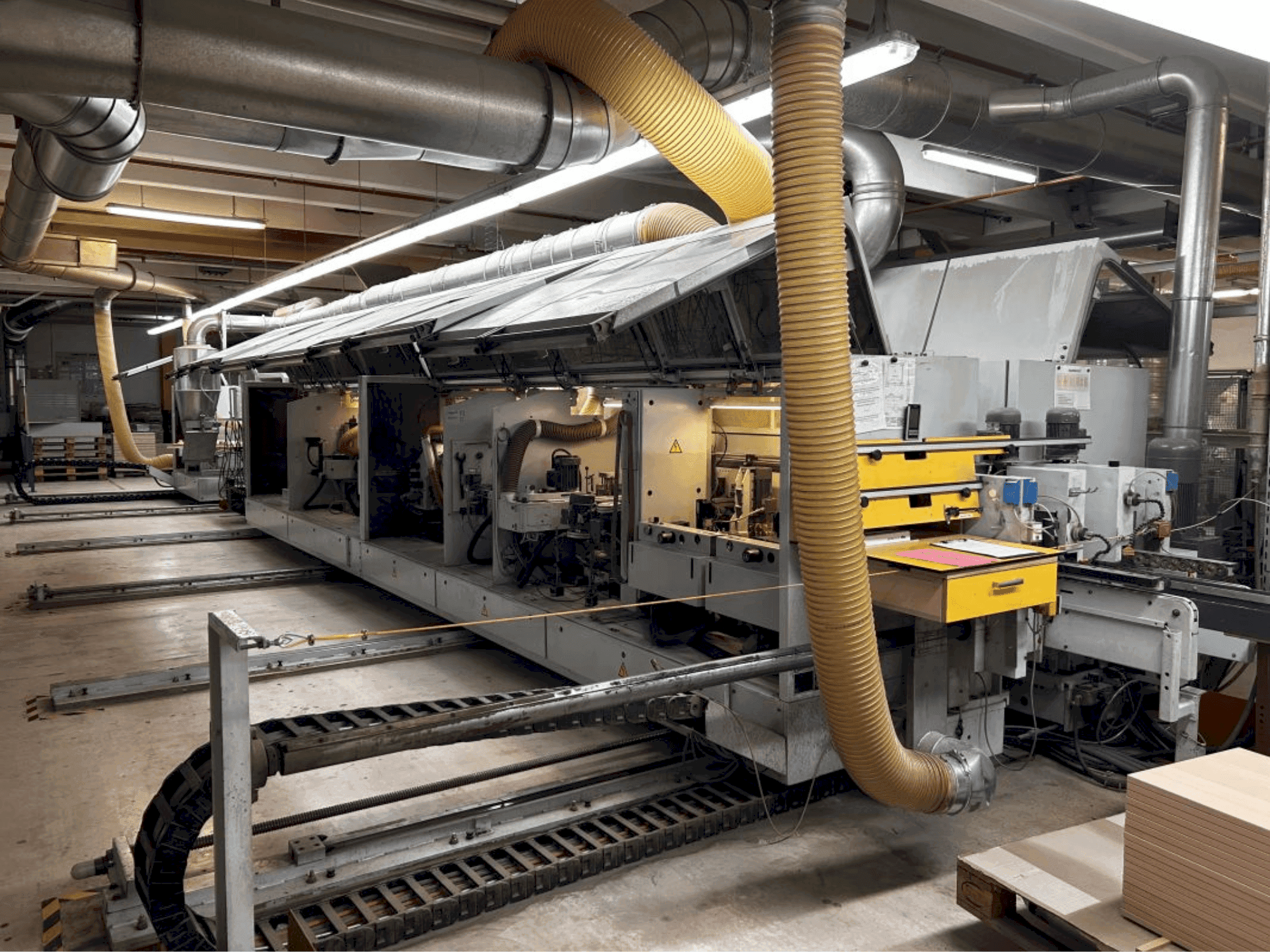

HOMAG - PROFI KFL20/29/QA/25DE-EDG-HOM-2003-00001

Additional Equipment

• - Glue Part A20 Strip: Max processing strip goods 20 mm, roll goods 3 mm / Trimming Unit HL 05 Bevel/Straight: Motors 0.4 kW each, 12000 rpm / Buffing Unit Top and Bottom: Motors 0.25 kW each
• - Stepless Vertical and Horizontal Axes / Belt Grinding Unit KS 10: For grinding straight edges / Chamfer/Radius Grinding Unit Top PS 42 & Bottom PS 41: Motor 0.55 kW
• - This configuration ensures efficient processing of various materials with versatile trimming, milling, and grinding options.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Working height to top edge: 950 mm / working width double-sided min: 240 - 270 mm / working width double-sided max: 2500 mm
  • - Feed continuously adjustable: 10 - 40 m/min / feed device: 10 rollers fold up
  • - Infeed ruler: stepless axis / compact double clamping device lengthwise/crosswise: 6. 6 kw
  • - Projection: 40 mm / thickness: 8 - 60 mm
  • - Pre-milling unit top and bottom: 1. 5 kw each, 12000 rpm / standard milling unit: 4. 0 kw, 6000 rpm / form milling unit ff32r/60: retrofit in 2019
