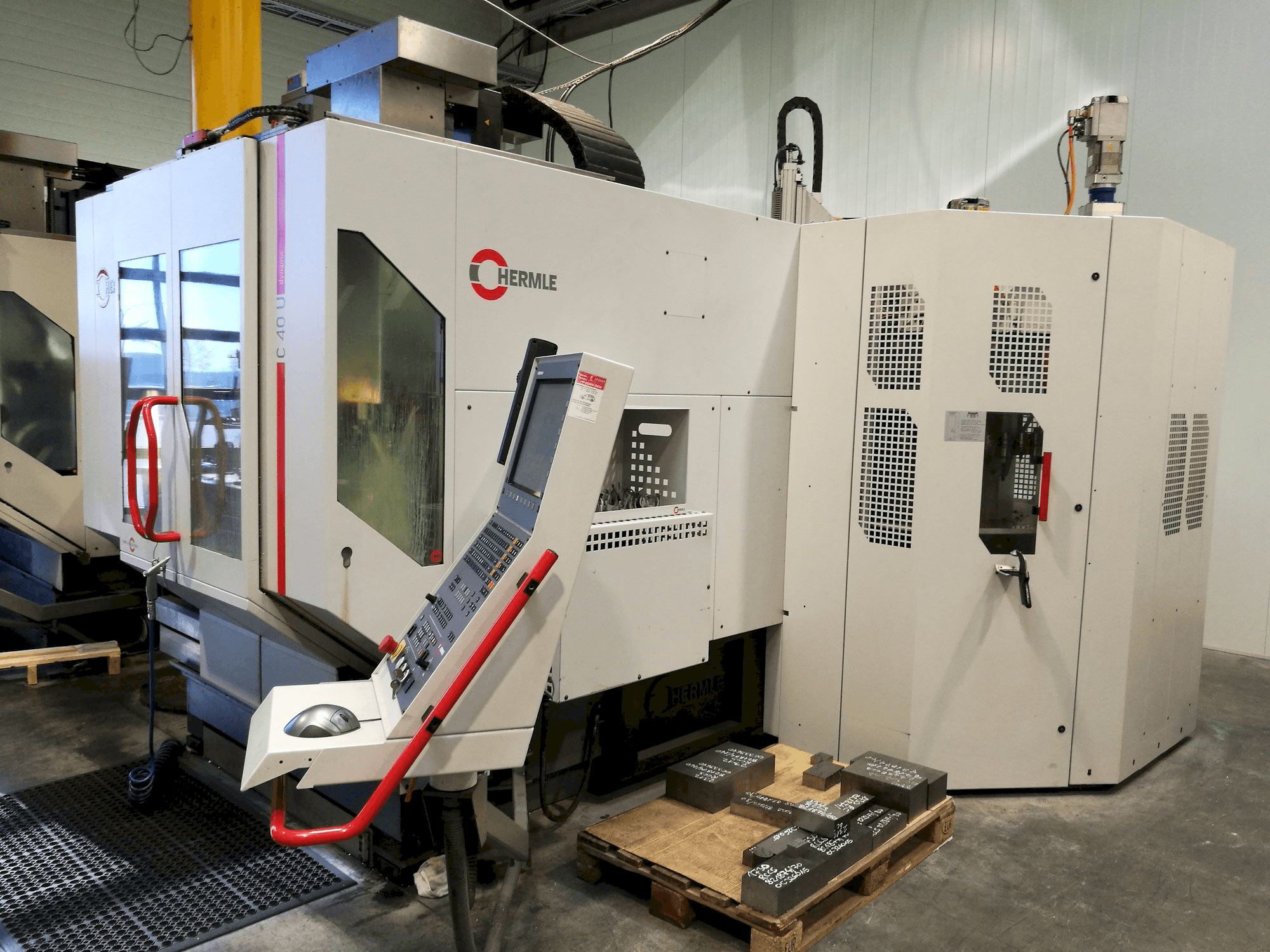

Front view of HERMLE C40U dynamic machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HERMLE C40U dynamic

Photo Gallery

HERMLE - C40U dynamicAT-MIL-HER-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HERMLE C40U dynamic Vertical Machining Center

Show in original language

This HERMLE C40U dynamic Vertical Machining Center was made in Germany in 2010. It has a total of approximately 24000 production hours. It is equipped with a HEIDENHAIN iTNC 530 control unit. This 5 axis machine can work with a spindle speed up to 18000 rpm.

Overview

brand: HERMLE
year: 2010
MODEL: C40U dynamic
production hours: 24000
application type: Milling
Location: Austria
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C40U dynamic

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Tools

Slots in storage: 38
Type of tool holder: HSK-A 63

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Additional magazine 87 places

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A- axis position off-centre y = 275
- - 6-way rotary union srt ø 420
- - Lum tool breakage/ measurement a2
- - Nc swivel rotary table ø420
- - Measuring probe m&h25
- - Special table top 5x erowa mts+
- - Special secondary clamping plates 2x mts+ each
- - Blumlaser a3 - measurement & breakage monitoring
Qualitative Machine Benefits:
- - Elek. Itnc heat compensation
- - Manual car door
- - Scraper belt conveyor
- - Laminated glass safety pane
- - Oil mist extraction
- - Blow-off device
- - New sealing erowa system
- - New spindle cooling unit
- - New ball screw drive z-axis
- - New spindle head & rotary union

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
