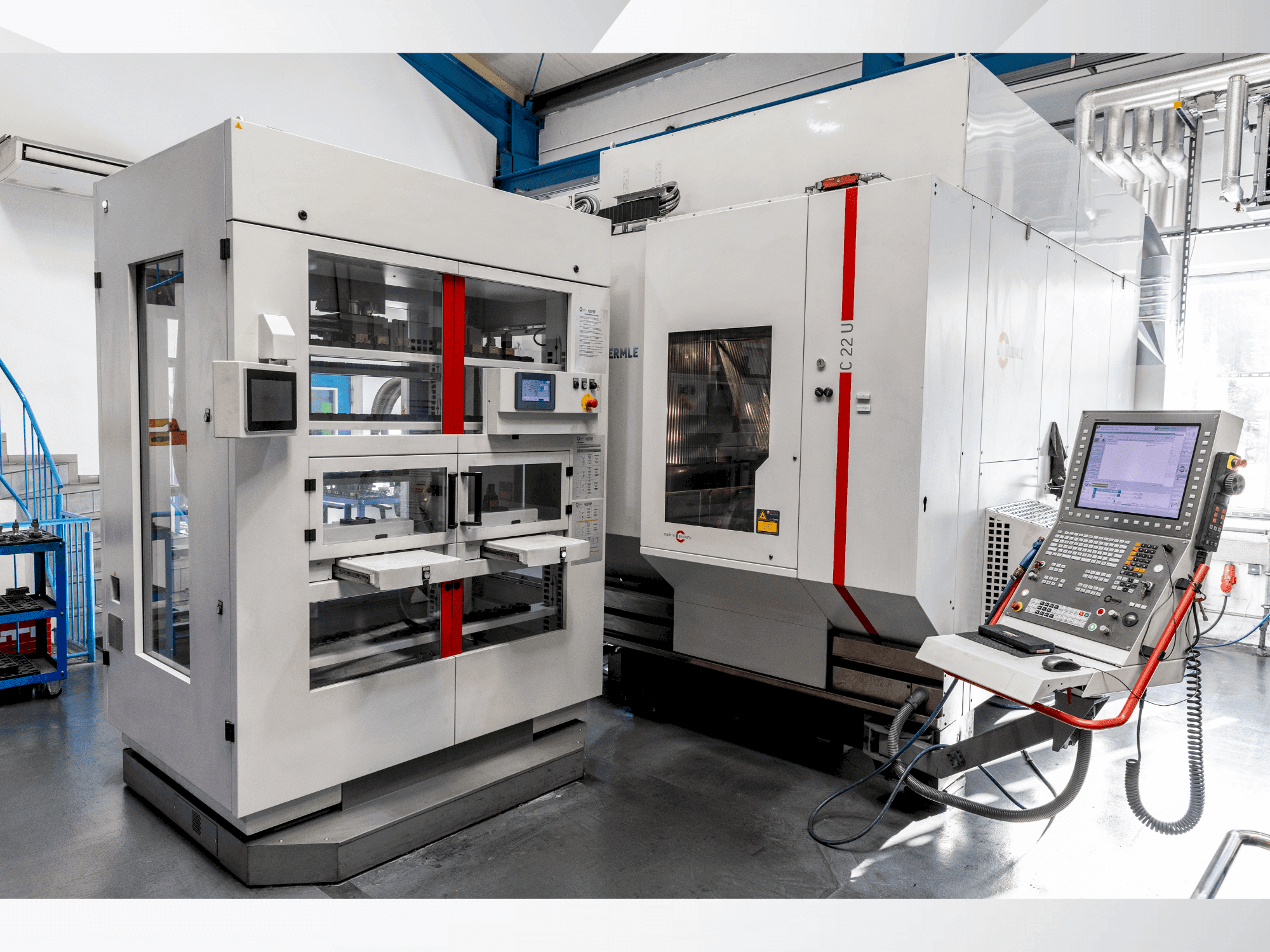

HERMLE - C22U with handling system IH30DE-MIL-HER-2015-00001

Additional Equipment

• - It comes with Handling system IH30
• - Rigid clamping table
• - Coolant unit standard
• - Chip chute left
• - Polycarb safety disks
• - 6-fold rotary feed-through
• - Outer MMS
• - BLUM tool breakage/measurement A1
• - Chuck 3-R PowerGrip on system table
• - Incl. adapter plate for system table

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 55 tool positions sk40
  • - Swivel rotary table stp diameter 320mm //one-sided drive of the a-axis diameter 320
  • - Table top diameter 320mm
  • - Blow air through the center of the spindle
  • - Sealing air for scales
  • - Emulsion mist extraction incl. Secondary filter
  • - Automatic cabin door // automatic cabin roof
  • - Electric heat compensation heidenhain // electric manual control module heidenhain
  • - Ih30 shelf its50 pallets and its78
  • - Dynamic efficiency and dynamic precision for enhanced performance, high spindle speed for precision machining, comprehensive handling and tooling options integrated into the system.
• Qualitative Machine Benefits:
  • - Standard cabin
  • - Kinematicopt hardware
  • - Blow-off device
  • - Pneumatic extension 1:2
  • - External suction unit
  • - Control panel for hacs on the ih30
  • - Parallel gripper incl. Specific gripper finger set
  • - Exchangeable gripper 3r gripper finger set
  • - High-quality components such as heidenhain control and blum tool systems ensure reliability and precision, advanced safety features like polycarb safety disks and automatic cabin doors enhance operational safety.
  • - Clamping system included and keller graphite extraction system included

Payment Terms

• Payment in advance

• Asset Financing
