➤ Used HERMLE C 30 U For Sale | gindumac.com

Show in original language

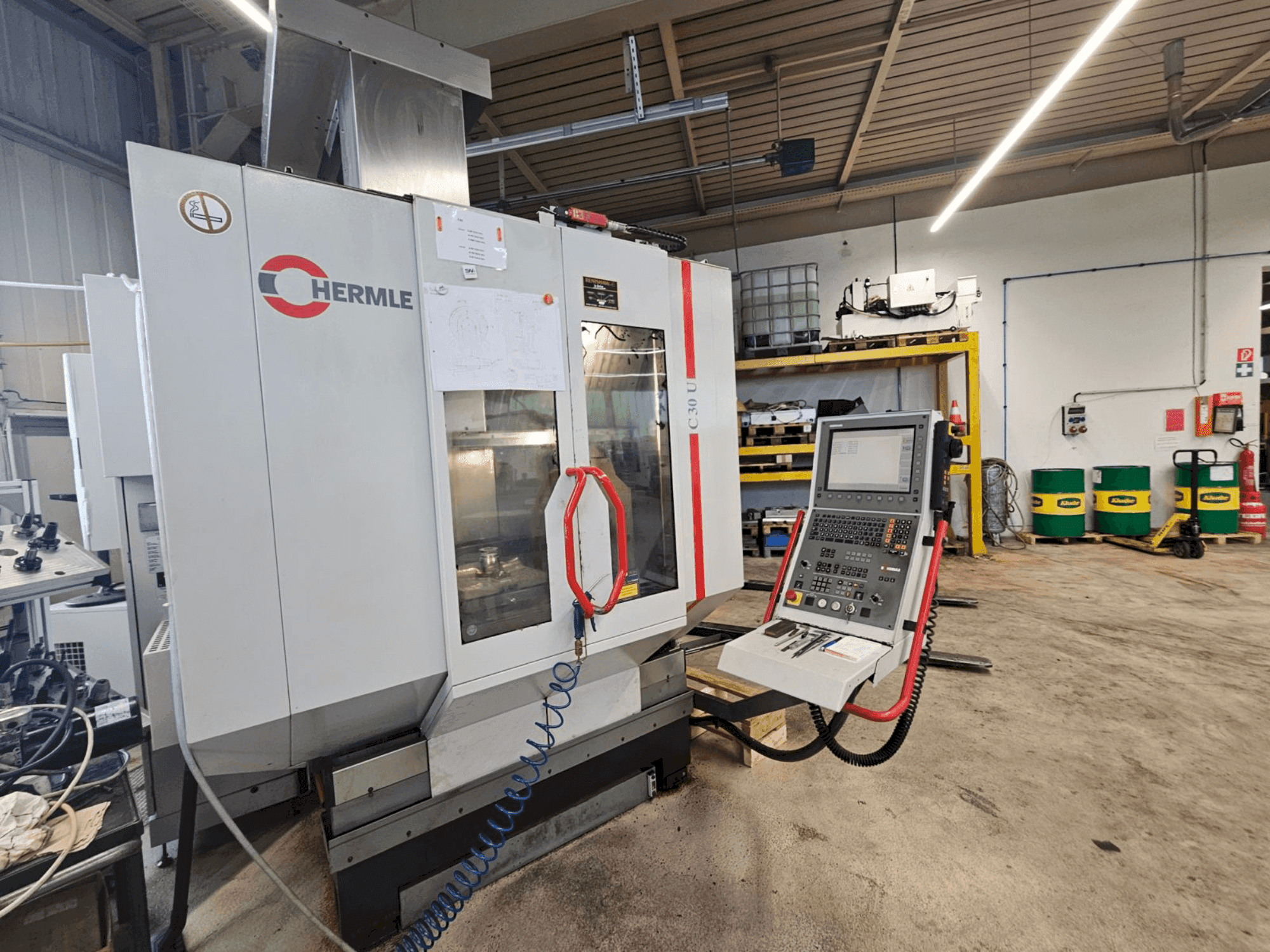

This 5-axis HERMLE C 30 U was manufactured in 2003, featuring a Heidenhain iTNC 530 control, 650 mm X-travel, 600 mm Y-travel, and 500 mm Z-travel. It includes a rotary table diameter of 630 mm and a high-speed spindle up to 18,000 rpm. Ideal for complex, multi-dimensional machining. If you are looking to get high-quality milling capabilities consider the HERMLE C 30 U machine we have for sale. Contact us for more information.

Overview

brand: HERMLE
year: 2003
MODEL: C 30 U
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 30 U

General Data

Measurements width: 7500 mm
Measurements depth: 1500 mm
Measurements height: 3500 mm
Machine weight: 9500 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 10/15 kW
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Rapid traverse: 60 m/min

Table

Table load: 1000 kg

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: HSK A 63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Acceleration: 10 m/s²
- - Feed force: 8500 n
- - Rotary table diameter: 630 mm
- - Centering bore: 32 h7
- - Rotatable c: 360°
- - Number of tool positions: 32 positions
- - Max. Tool diameter with free adjacent tool box: 125 mm
- - Total power requirement: 43 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
