HELLER MCi 25 Horizontal Machining Center

Show in original language

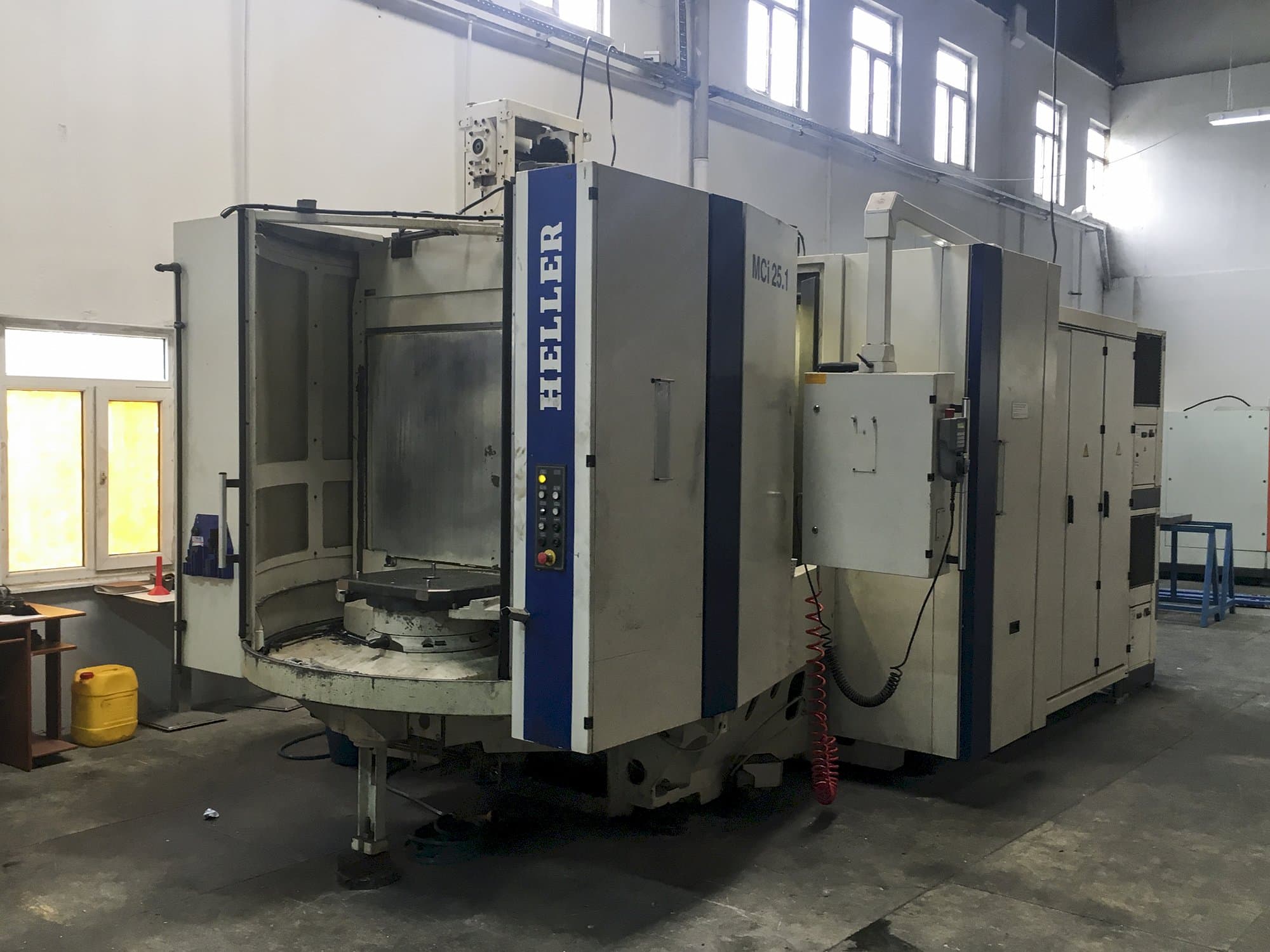

This HELLER MCi 25 Horizontal Machining Center from 2005 was made in Germany and has been operative for approximately 78000 production hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this machine has mainly been producing tool and machine components for the automotive industry. With 2 Control units and 2 pallets which are exchanged in ~14 seconds, this machine is suitable for serial production.

Overview

brand: HELLER
year: 2005
MODEL: MCi 25
production hours: 78000
application type: Milling
Location: Turkey
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - HELLER MCi 25

General Data

Measurements width: 6500 mm
Measurements depth: 3500 mm
Measurements height: 3600 mm
Machine weight: 19000 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 16000 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 800 mm
B-AXIS Movement: 360 / 0.001° MM

Workpiece

Workpiece drm: 900 mm
Workpiece weight: 800 kg

Table

Outer length: 500 mm
Outer width: 630 mm

Tools

Slots in storage: 80
Max weight: 12 kg
Max tool diameter: 150 mm
Max tool length: 400 mm
Type of tool holder: HSK 63

Media

Main electronic connection: 400 V
Power consumption: 70 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Cooling System
- Chip Conveyer KNOLL
- Infrared Measuring Probe RENISHAW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
