HELLER - MC 12DE-MIL-HEL-2004-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools

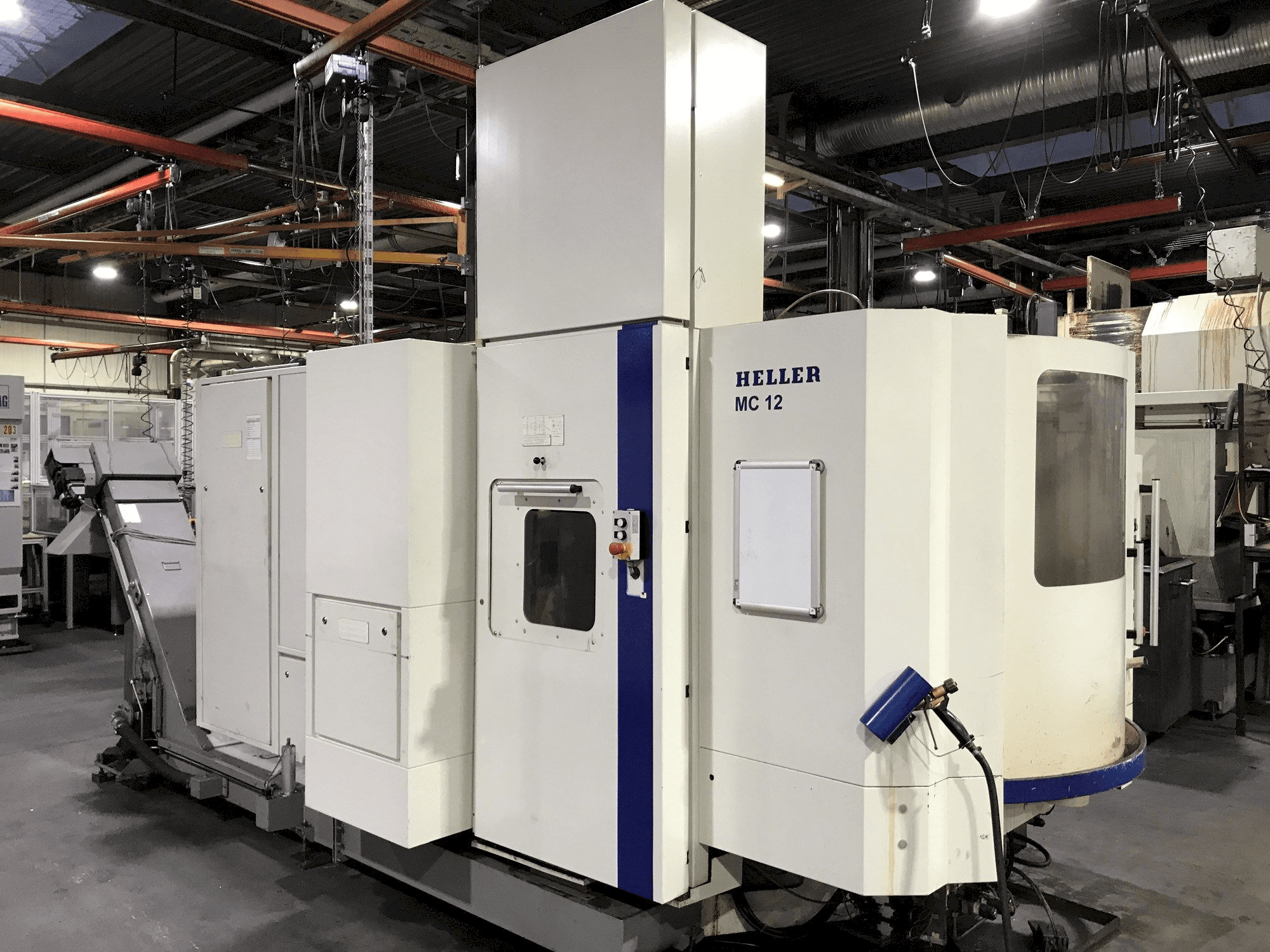

- HELLER MC 12 Horizontal Machining Center
Show in original language
This HELLER MC 12 Horizontal Machining Center was made in 2004 in Germany. Equipped with a Siemens Sinumeric 840 D control unit. This machine works with a spindle speed between 45 - 12000 rpm and a tool taper HSK 63.
Overview
- brand: HELLER
- year: 2004
- MODEL: MC 12
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER MC 12
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumeric 840 D
Dimensions
- Machine Depth: 2600 mm
- Machine Height: 3100 mm
- Machine Weight: 8000 kg
- Table Length: 400 mm
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 42
- Spindle Speed: 12000 RPM
- Taper Size: HSK 63
Additional Information
Additional equipment
- All linear axes with direct measuring system
Machine Benefits
Technical Machine Benefits
- Rapid feed b 50 m/min
- Coolant reservoir content 1100 l
- Chip conveyor discharge height 1200 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
