- HELLER H 2000 Horizontal machining center

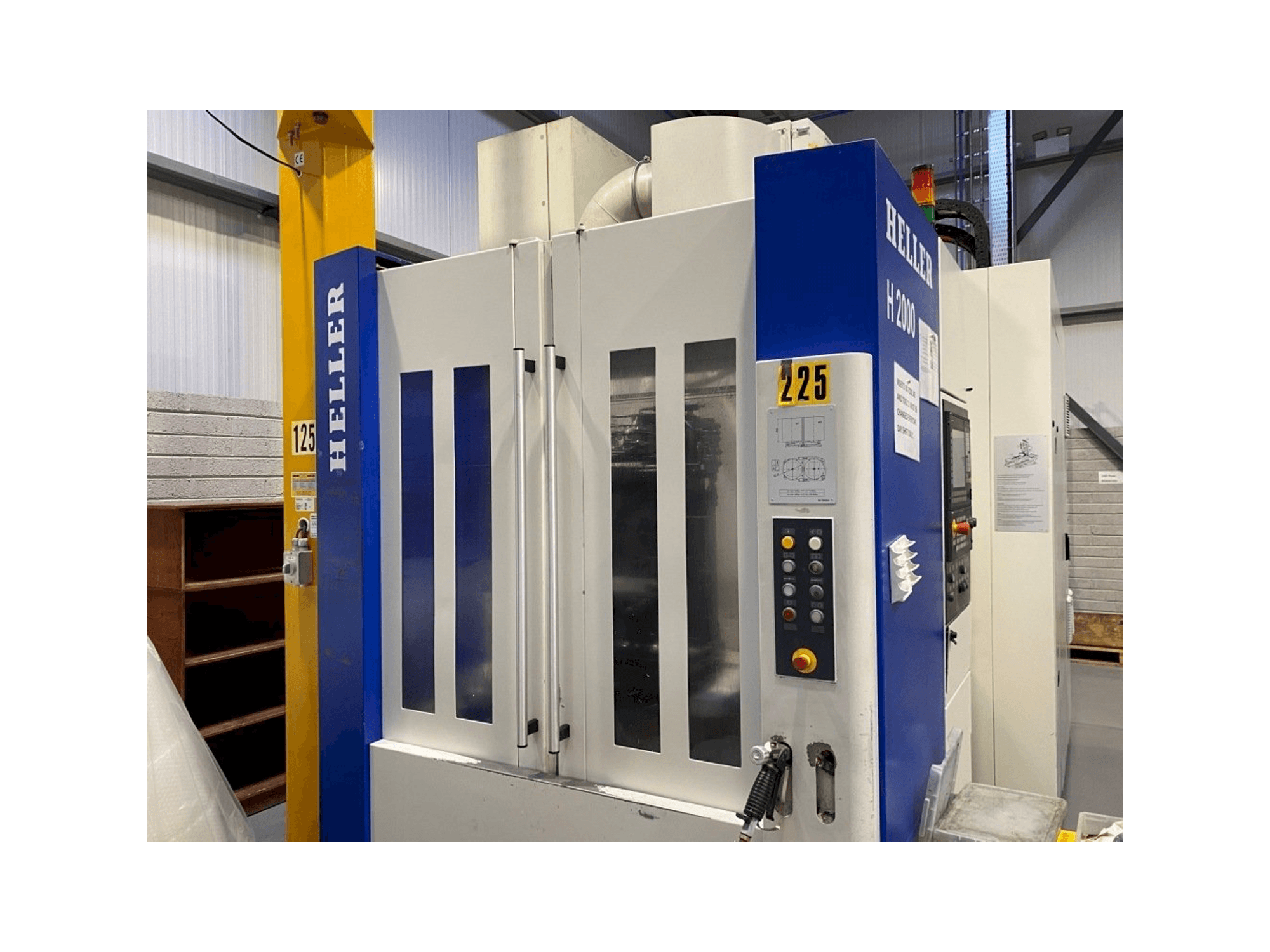

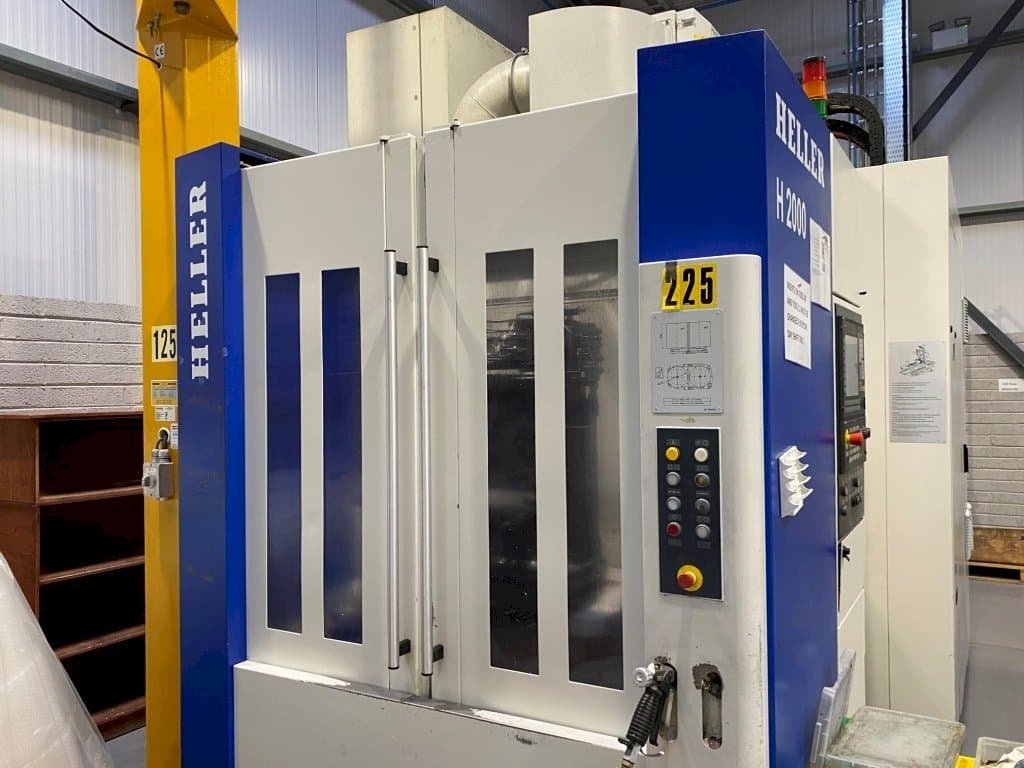

This HELLER H 2000 Horizontal machining center was made in Germany in 2008. It has been on for 60851 hours. It is equipped with a Siemens 840D Solution Line control unit. This 4 axis machine operates with a spindle speed up to 16000 rpm. It comes with 4 pallets, a selection of tool holders and 5 point hydraulic work piece clamping. Very good condition machine.
Overview
- brand: HELLER
- year: 2008
- MODEL: H 2000
- production hours: 60851
- application type: Milling
- Location: Ireland
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER H 2000
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D Solution Line
Dimensions
- Machine Depth: 2500 mm
- Machine Height: 3100 mm
- Machine Weight: 10000 kg
- Table Length: 400 mm
- Table Width: 500 mm
Movement
- B-axis Max: 360°
- B-axis Min: 0.001°
- Number of Axes: 4
- X-axis Travel: 630 mm
- Y-axis Travel: 630 mm
- Z-axis Travel: 630 mm
Technical Specification
- Max. Tool Weight: 12 kg
- Number of Tools: 80
- Spindle Speed: 16000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Selection of Tool Holders
- 4 Pallets
- Mist Extraction Unit
- High prerssure coolant unit
- Coolant Filtration System
- 5 Point Hydraulic Work Piece Clamping
Machine Benefits
Qualitative Machine Benefits
- Machine manual
Technical Machine Benefits
- Hp coolant
- Hydraulic workpiece clamping
Machine History
Industries
Medical device industry
End product
Medical device parts
Material type
Steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
