HARTFORD HSA 320

Photo Gallery

HARTFORD - HSA 320DE-MIL-HAR-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HARTFORD HSA 320 For sale | gindumac.com

Show in original language

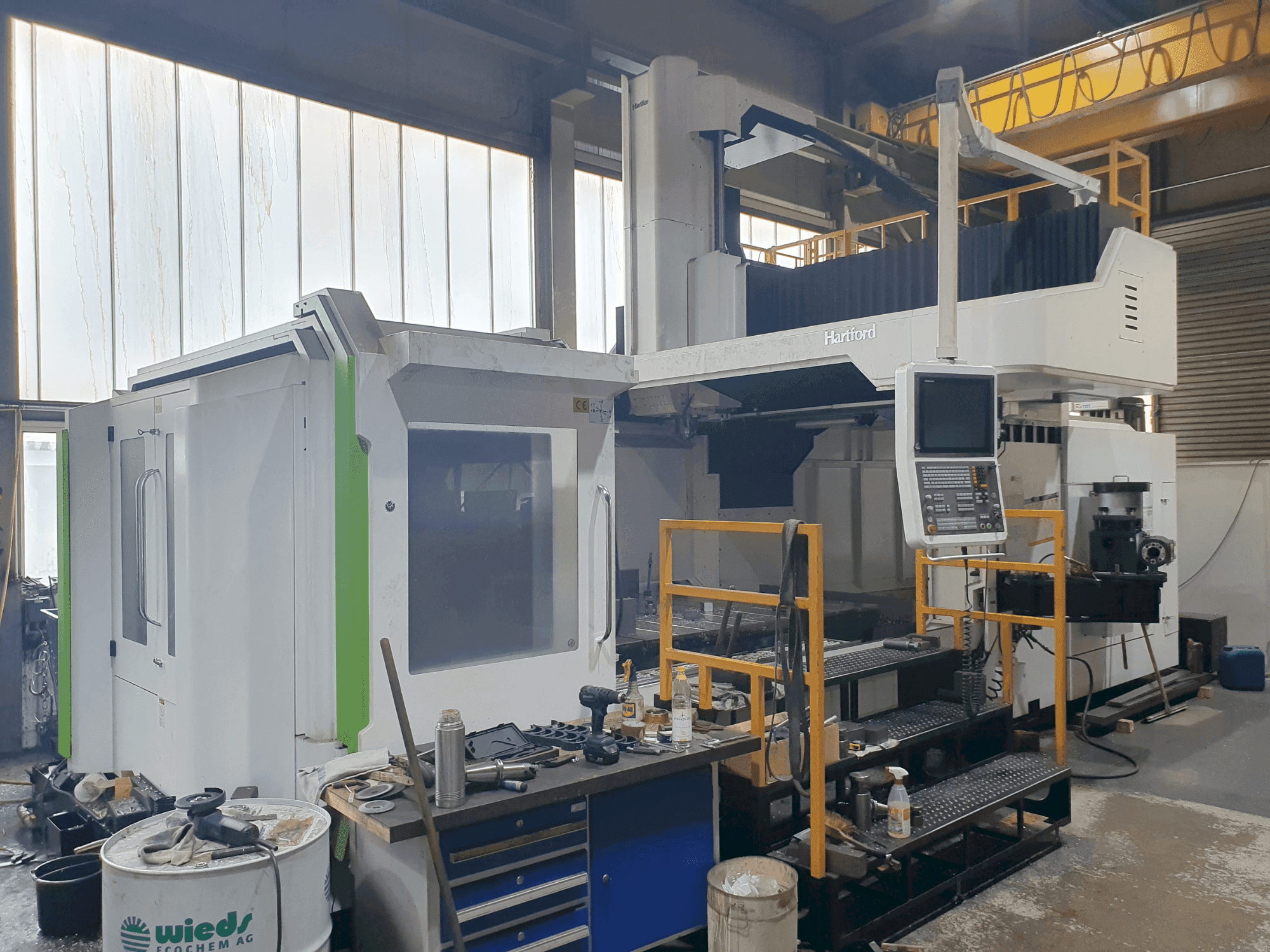

This 3-axis Hartford HSA 320 machining center was manufactured in 2021. It features a robust clamping table of 3000 x 1800mm, supporting up to 10,000 kg, and a thermally stable main spindle with a SK50 tool holder. The machine includes a closed cooling circuit and an automatic two-stage gearbox, enhancing its performance with a spindle speed of up to 6,000 rpm. Ideal for heavy and precise machining tasks, the Hartford HSA 320 machine we have for sale. Contact us for further details.

Overview

brand: HARTFORD
year: 2021
MODEL: HSA 320
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - HARTFORD HSA 320

General Data

Measurements width: 5400 mm
Measurements depth: 9100 mm
Measurements height: 5300 mm
Machine weight: 28500 kg

Main drive

Spindle speed range: 10-6000 rpm 1/MIN
Spindle motor power: 30 kW (S6-40%), 25 kW (S6-60%), 20 kW (S1-100%)
Tool taper: SK50
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 2000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 10000 kg

Table

Outer length: 3000 mm
Outer width: 1800 mm
TSlots size: 22 mm
Number of tslots: 11
Distance between: 250 mm

Media

Main electronic connection: 400 V, 50 Hz, 3 Ph
Power consumption: 55 kVA
Air pressure: 6.5 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle power and speed, large working range, high table load capacity.
Qualitative Machine Benefits:
- - High positioning and repeat accuracy, thermally stable main spindle, closed cooling circuit.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
