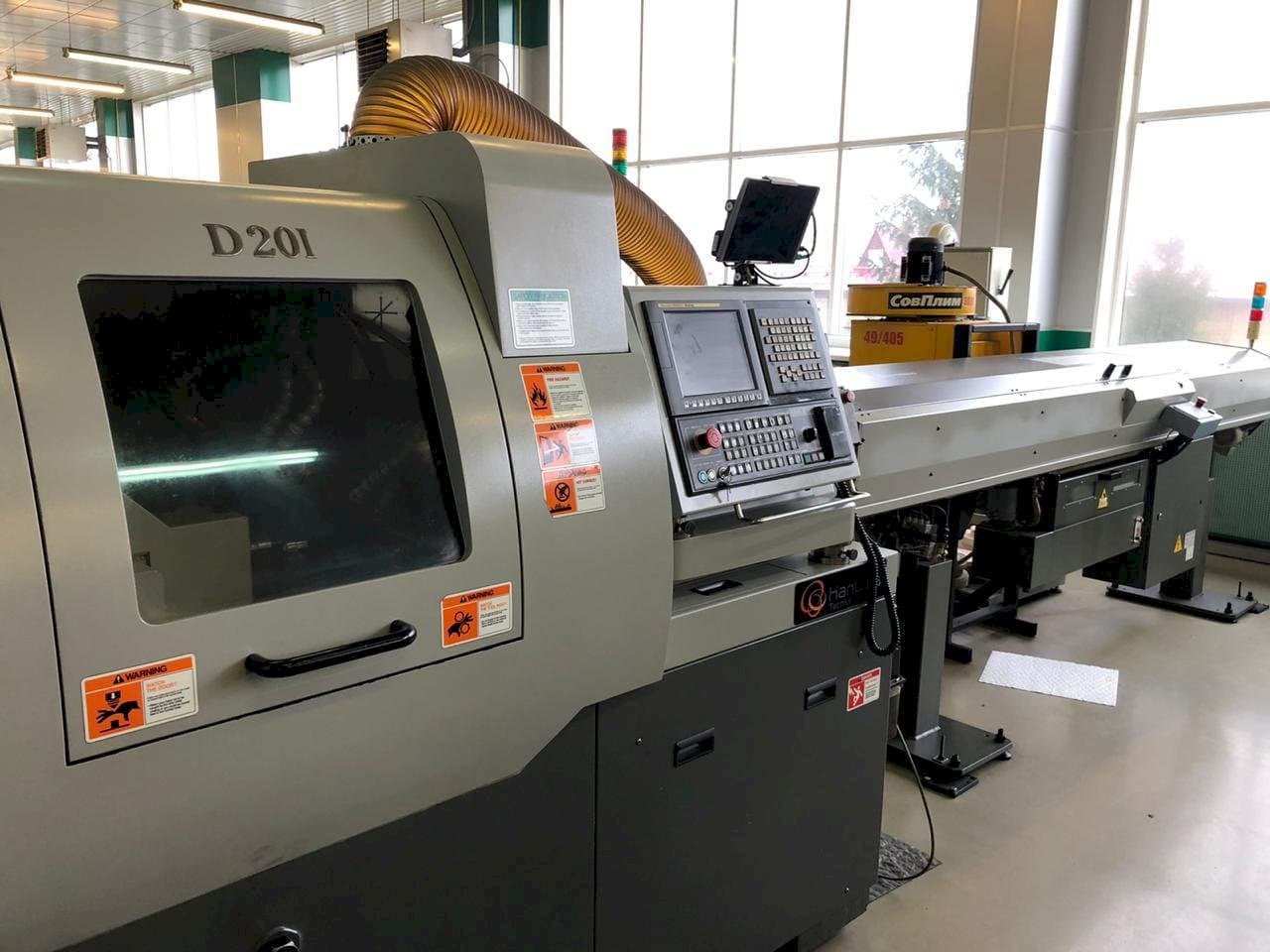

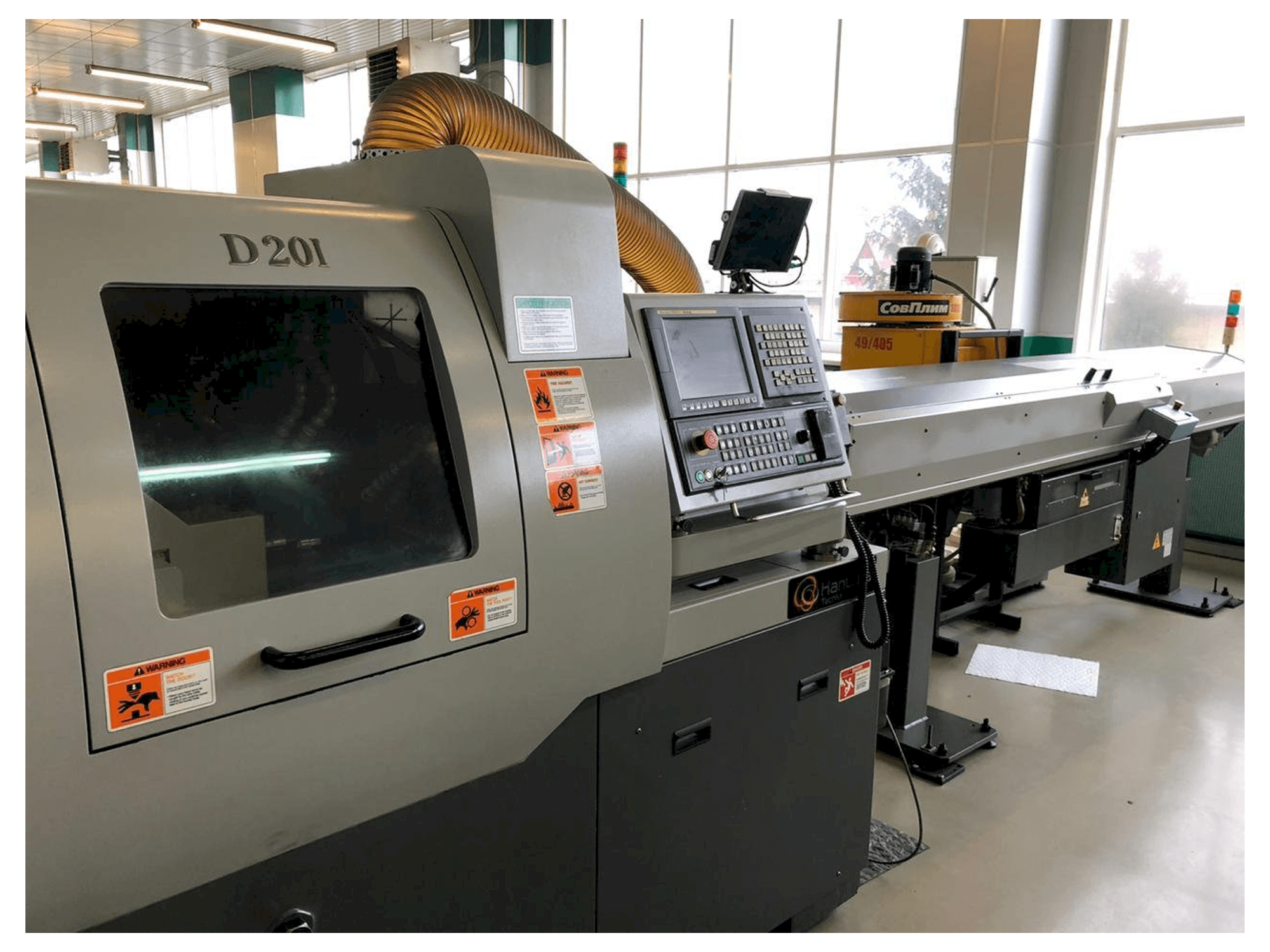

Hanwha XD20M Lathe

Show in original language

This Hanwha XD20M Lathe was made in the year 2011. It is controlled through a CNC system FANUC i Series. It is equipped with a main spindle which can work with a spindle speed up to 10000 rpm, and a counter spindle which can work with a spindle speed up to 8000 rpm. Both spindles can work with a Max. processed diameter Ø20 mm.

Overview

brand: Hanwha
year: 2011
MODEL: XD20M
application type: Turning
Location: Russia
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Hanwha XD20M

General Data

Measurements width: 2360 mm
Measurements depth: 1250 mm
Measurements height: 1740 mm
Machine weight: 2700 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 2.2/3.7 kW

Media

Main electronic connection: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle: max. Processed diameter (mm) Ø20
- - Counter spindle: max. Rotation speed (rpm) 8000, max. Processed diameter (mm) Ø20
- - Coolant tank (l) 170
- - Lubrication tank (l) 1. 8
- - Air consumption (nl/min) 120~150
- - Color screen 10. 4"
- - Max. Diameter of axial drilling on the main spindle/counterspindle (mm) 10 / non-drive: 10; drive: 8
- - Max. Diameter of the thread to be cut by the tap on the main spindle/ counterspindle m8 / not drive. : m8; drive: m6
- - Max. Diameter of the thread to be cut by the tap on the cross drilling / milling caliper m6(er16)
- - Max. Drilling diameter on the cross drilling / milling support (mm) 10 (er16)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
