Handtmann - UBZ NT 300/200 T2HU-MIL-HAN-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Handtmann UBZ NT 300/200 T2 Vertical Machining Center

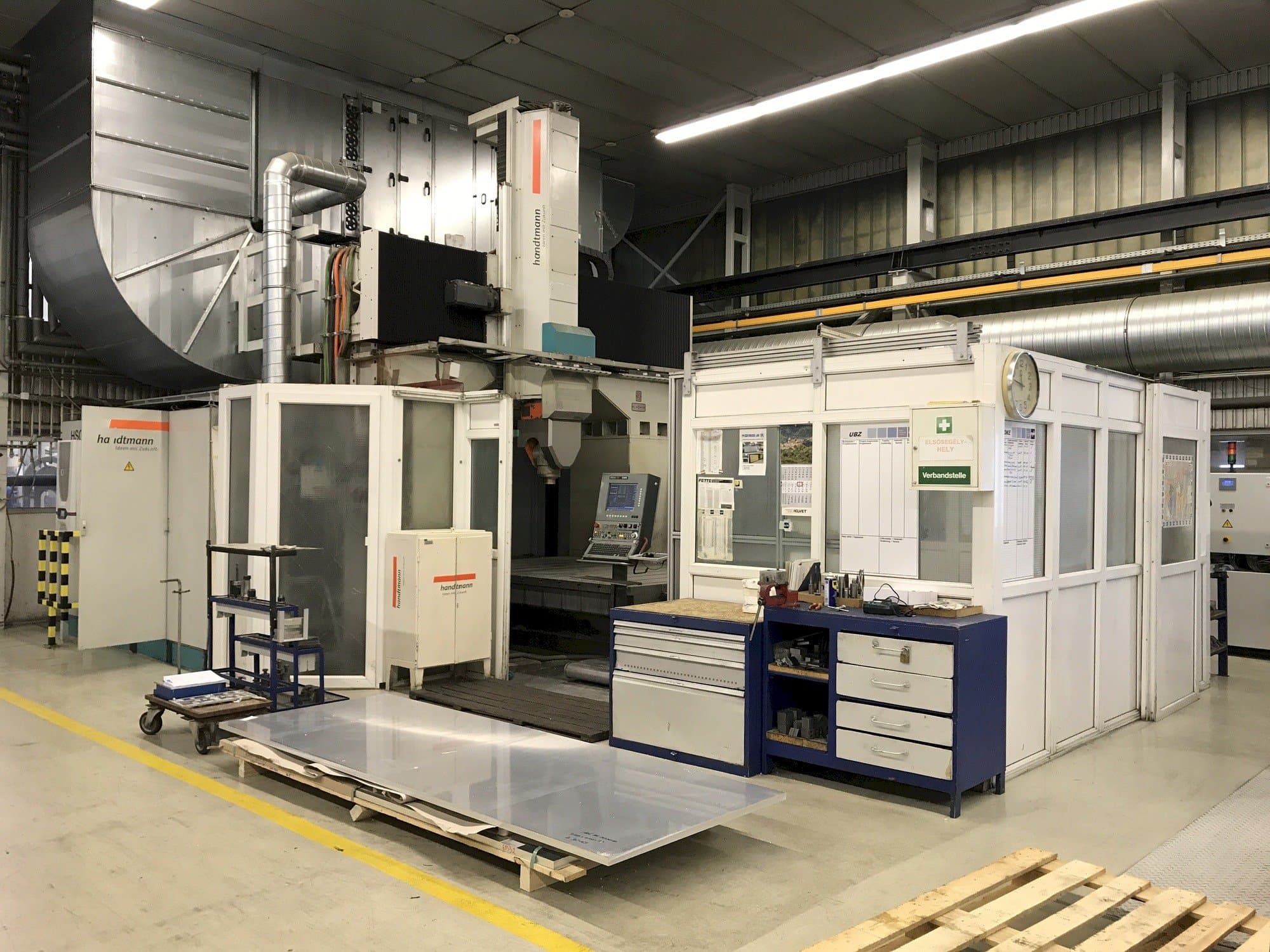

This Handtmann UBZ NT 300/200 T2 Vertical Machining Center was made in Germany in 2003. It has a production history of 6605 working hours. It is equipped with a Fidia C20 control unit. This machine can work with a spindle speed up to 20000 rpm. It has a new spindle that was replaced in 2017.
Overview
- brand: Handtmann
- year: 2003
- MODEL: UBZ NT 300/200 T2
- production hours: 6605
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- control unit brand: FIDIA
Technical Information - Handtmann UBZ NT 300/200 T2
Control Unit
- Control Brand: FIDIA
- Control Model: C20
Dimensions
- Machine Depth: 7200 mm
- Machine Height: 5900 mm
- Machine Weight: 40000 kg
- Table Length: 3000 mm
- Table Width: 2000 mm
Movement
- A-axis Max: 125°
- A-axis Min: 95°
- C-axis: 275°
- X-axis Travel: 4200 mm
- Y-axis Travel: 2750 mm
- Z-axis Travel: 1350 mm
Technical Specification
- Max. Tool Weight: 4 kg
- Number of Tools: 20
- Spindle Speed: 20000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Large table size
- Wide range of movement
- New spindle, only 6605 hrs in this new spindle, it was replaced in february 2017
Machine History
Industries
Automotive
End product
Large aluminum tools for automotive industry (for foam and injection moulding)
Material type
Aluminium
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
