HAITIAN - SA 1600-600EG-INJ-HAI-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

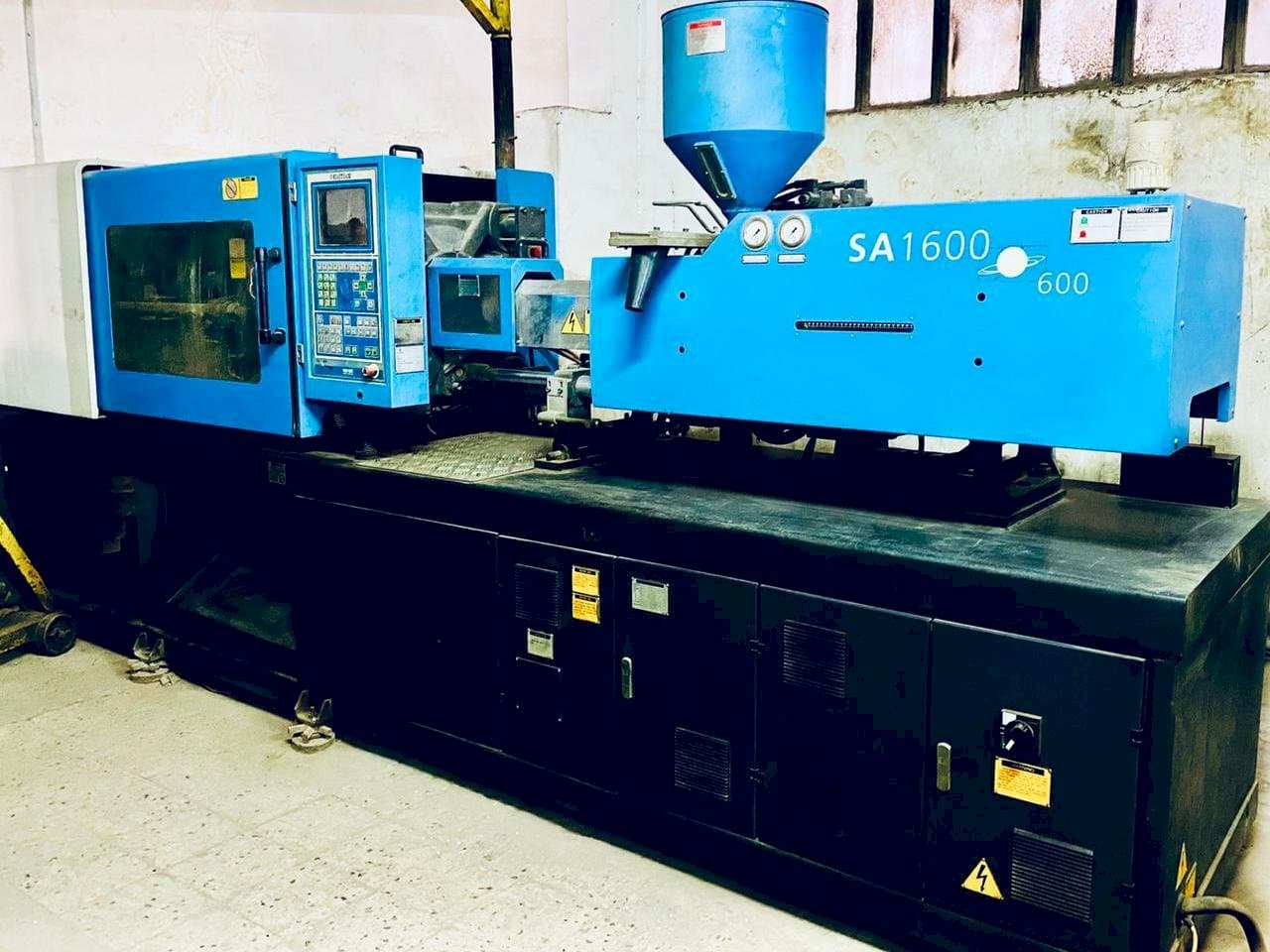

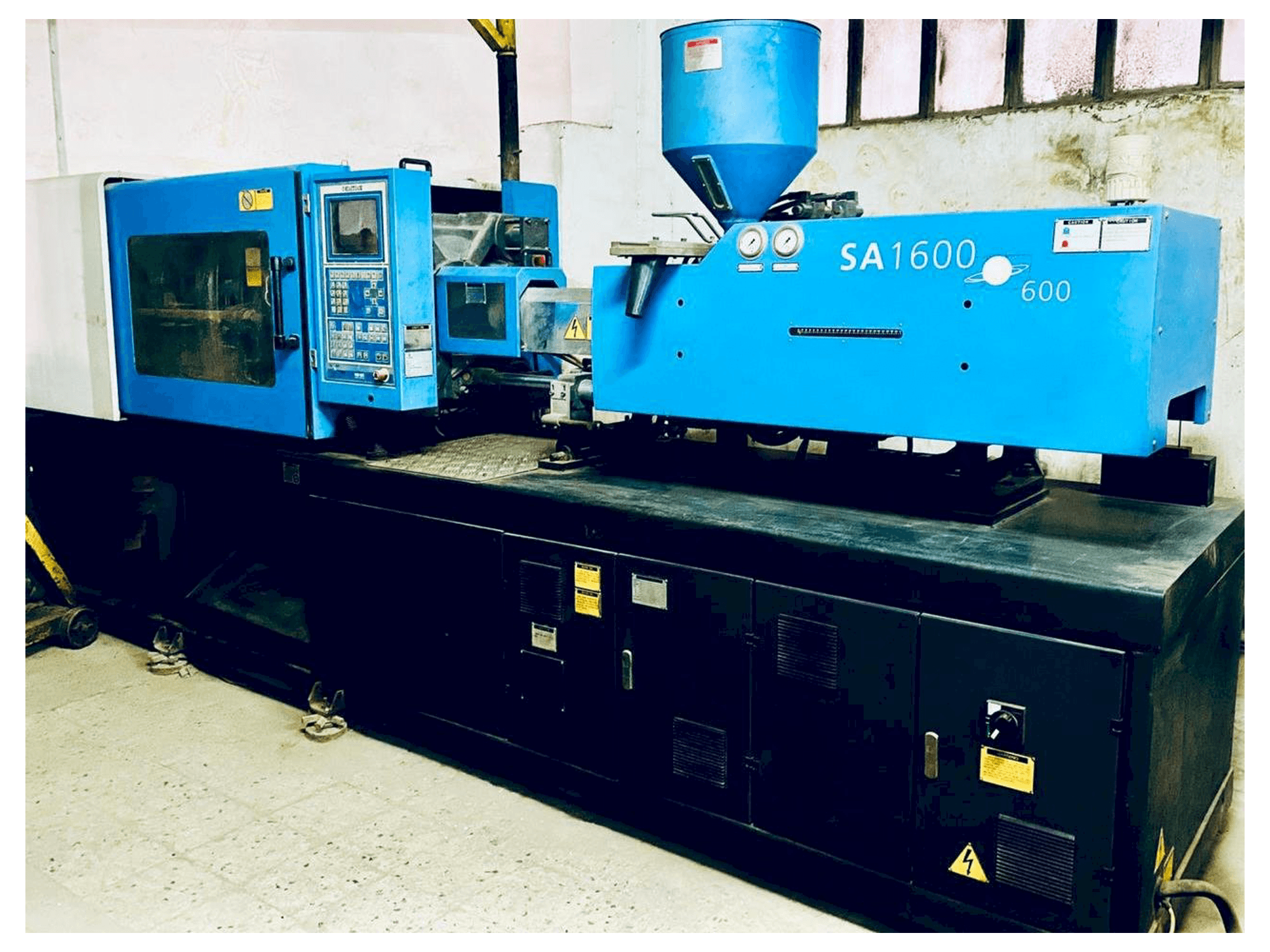

This HAITIAN SA 1600-600 Injection Moulding Machine was manufactured in China in the year 2011. This machine works with a clamping force 1600 kN and a screw speed 0-257 rpm.

Overview

brand: HAITIAN
year: 2011
MODEL: SA 1600-600
production hours: 300
application type: Injection Moulding
Location: Egypt
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: HAITIAN

Technical Information - HAITIAN SA 1600-600

General Data

Measurements width: 1350 mm
Measurements depth: 5150 mm
Measurements height: 1960 mm
Machine weight: 5500 kg

Control Unit

Brand: HAITIAN

Injection Unit

Screw diameter: 45 MM
Injection pressure: 188 MPA BAR
Screw speed: 0-257 R/MIN

Clamping unit

Clamping force: 1600 KN
Opening stroke: 430 MM
Max open daylight: 950 MM
Distance between bars: 470 X 470 MM
Mould height min: 180 MM
Mould height max: 520 MM
Size of mold platens: 330 X 330 MM
Ejector stroke: 140 MM
Ejector force for / back: 33 KN

Media

Pump drive power: 22 KW
Oil tank: 350 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Calculated injection volume: 320 cm3
- - Injection capacity: 291 g
- - Injection velocity: 171 g/s
- - Plasticizing capacity: 20 g/s
- - Injection stroke: 201 mm
- - Heating input power: 9. 75 kw
- - Ejector number: 5 pc

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
