HAAS VF-6/40 Milling

Show in original language

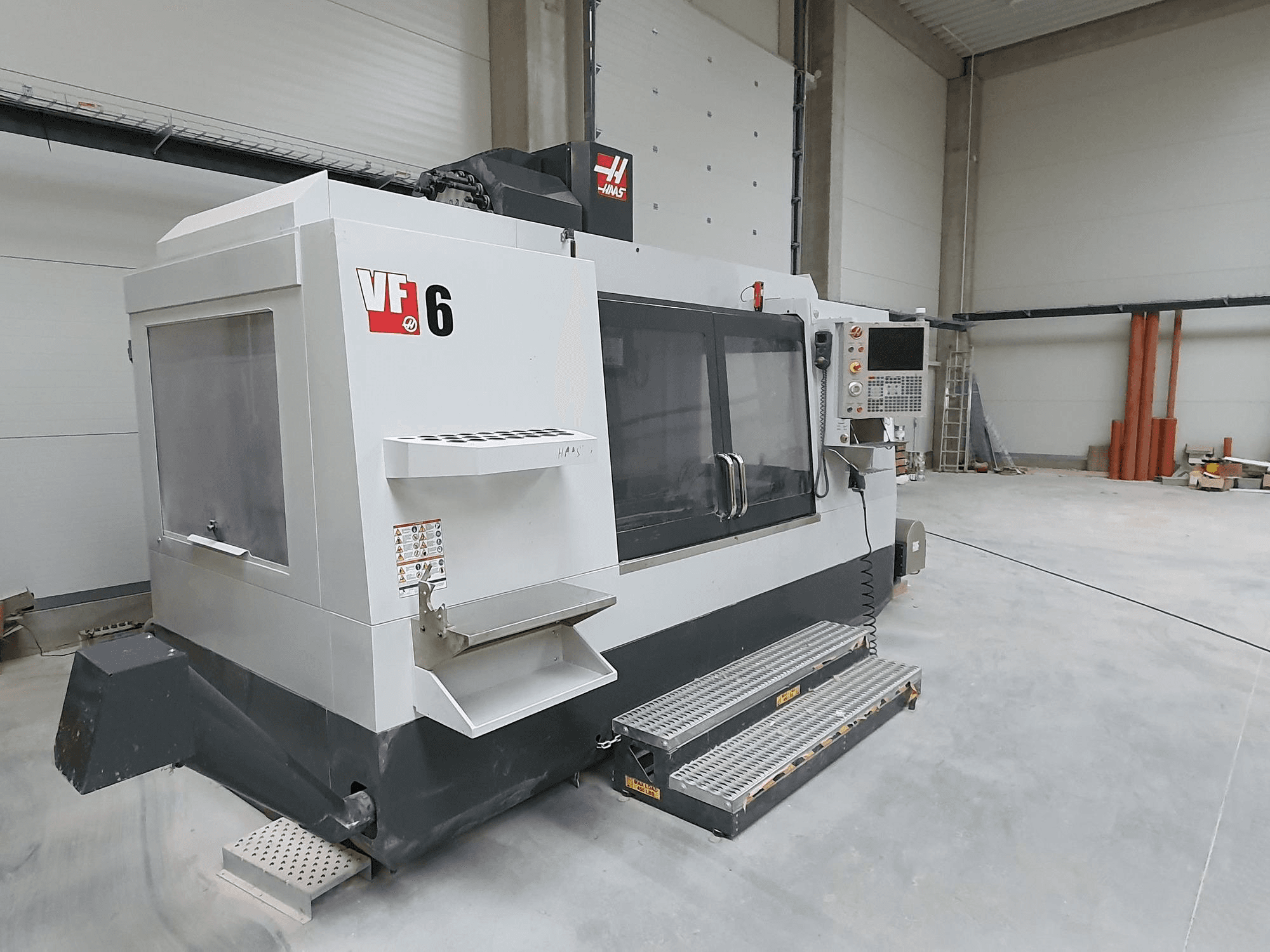

This HAAS VF-6/40 Vertical Machining Center was built in the year 2013 in the United States. It has 8545 working hours. It is equipped with a HAAS control unit. This 5 axis machine can work with a spindle speed up to 15000 rpm. It presents very good working conditions, and has only worked with soft materials.

Overview

brand: HAAS
year: 2013
MODEL: VF-6/40
production hours: 8545
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-6/40

General Data

Measurements width: 4960 mm
Measurements depth: 2600 mm
Measurements height: 3260 mm
Machine weight: 12000 KG

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 5

Movement

X-AXIS Movement: 1626 mm
Y-AXIS Movement: 813 mm
Z-AXIS Movement: 762 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1626 mm
Outer width: 711 mm
TSlots size: 5

Tools

Slots in storage: 24
Type of tool holder: ISO 40

Additional Information

Machine history

Material type: Plastics 70, 30% aluminium

Machine Benefits

Technical Machine Benefits:
- - 5 axis (3+2) machine with a tr310 dual-axis trunnion rotary table
- - A axis tilt +/- 120 degree, b axis rotation 360 degree
- - Spindle nose to table 102-864 mm, to platter 279-483 mm
- - 3d renishaw probe, 3d ots tool probe
- - Max. Workpiece weight on the trunnion table 227 kg
- - Trunnion table diameter 310 mm
- - Memory 750 mb
Qualitative Machine Benefits:
- - Very good condition, worked only with soft materials.
- - Trunnion rotary table tr 310 is new, never used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
