- HAAS VF-3YT/50 Vertical machining center

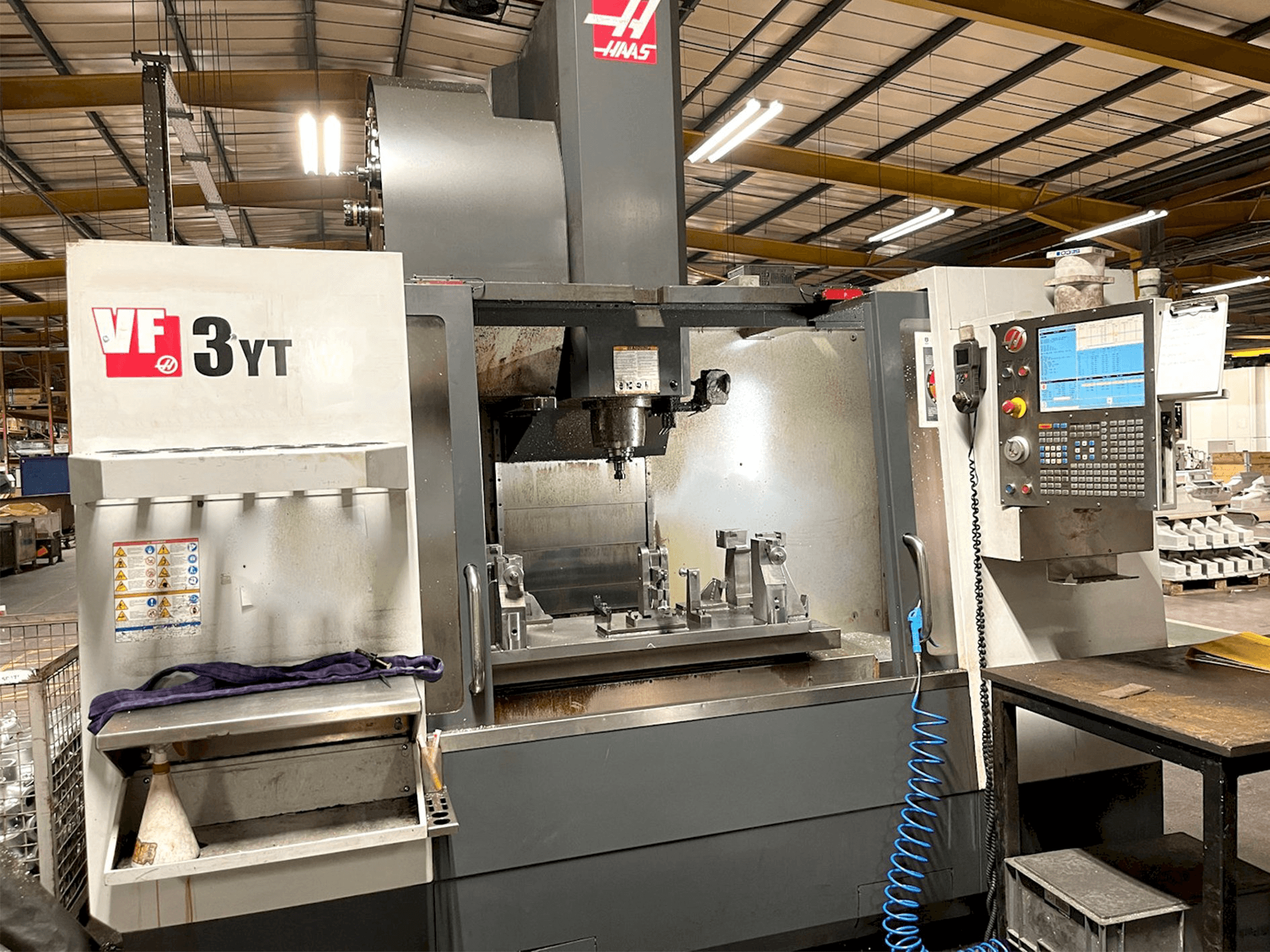

This HAAS VF-3YT/50 Vertical machining center was manufactured in the United States in the year 2012 and has 6355 spindle hours. It is operated through a control unit of the same brand and has 3 axis. The machine has a spindle speed up to 7500 rpm, is in very good condition.
Overview
- brand: HAAS
- year: 2012
- MODEL: VF-3YT/50
- production hours: 6355
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS VF-3YT/50
Control Unit
- Control Brand: HAAS
Dimensions
- Machine Depth: 2896 mm
- Machine Height: 3200 mm
- Machine Weight: 7212 kg
- Table Length: 1321 mm
- Table Width: 584 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 635 mm
Technical Specification
- Max. Tool Weight: 5.4 kg
- Number of Tools: 30
- Spindle Speed: 7500 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine manual
- Very good condition
Technical Machine Benefits
- Min - max height under spindle 178 - 813 mm
- Rapid feedrates 18 m/min
- Spindle motor power 22 kw
- Tool change time (chip to chip) 6. 3 seconds
- Through spindle coolant, coolant, interlocked guards, low volt light,
- Programmable coolant nozzle, remote hand wheel, usb port, swarf auger
- Gearbox with 2 speeds
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
