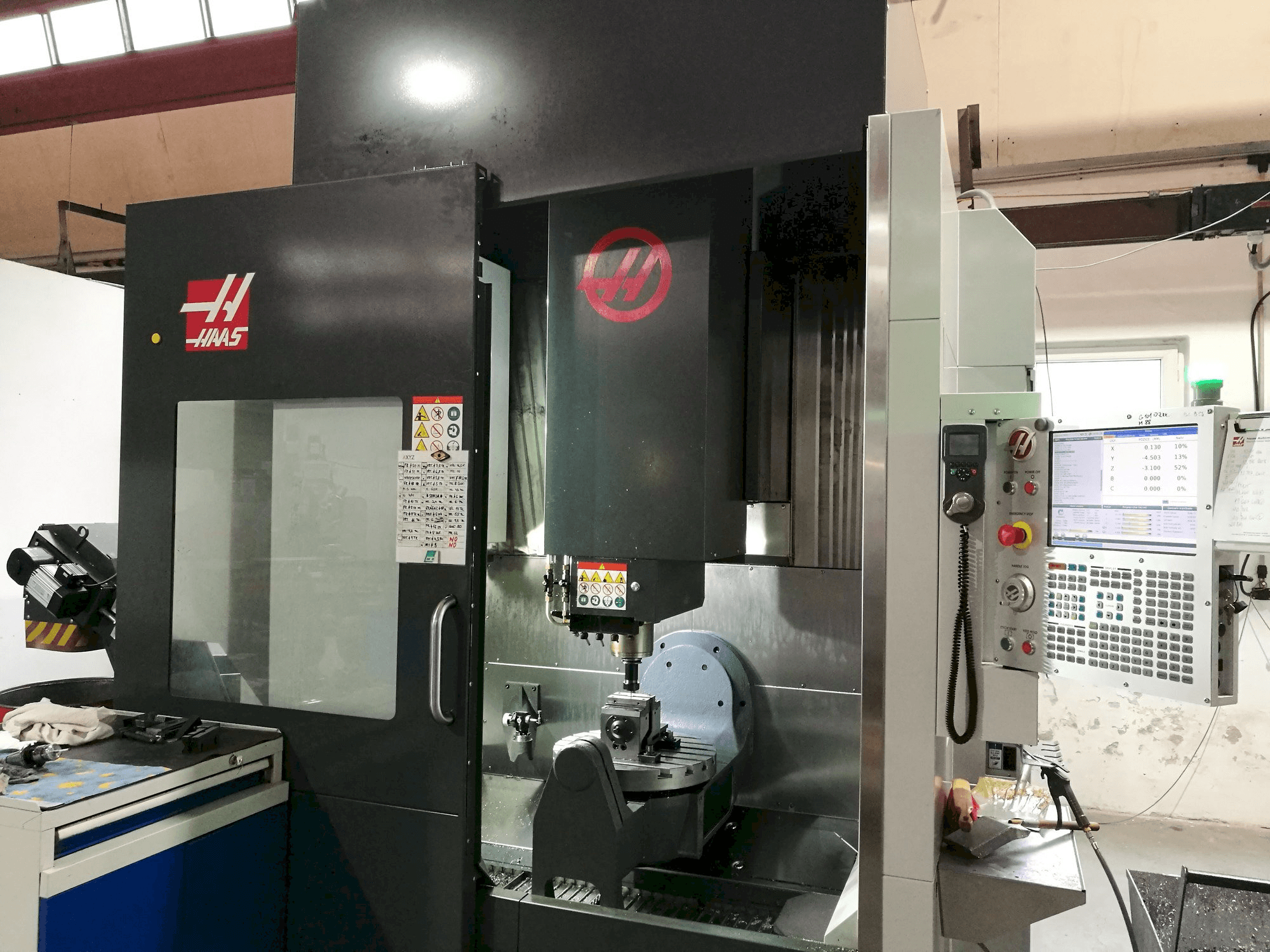

➤ HAAS UMC - 750 Vertical Machining Center - Used

Show in original language

This HAAS UMC - 750 Vertical Machining Center was built in the year 2018 in the United States. It has been working for 3690 (1379 cutting time) hours since then. It is equipped with a HAAS control unit. This machine can work with a spindle speed up to 12000 rpm. It includes an Hard Disk of 1GB, and an USB Port. It presents very good conditions.

Overview

brand: HAAS
year: 2018
MODEL: UMC - 750
production hours: 3690
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC - 750

General Data

Measurements width: 3978 mm
Measurements depth: 2387 mm
Measurements height: 2565 mm
Machine weight: 8700 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 degrees
- - B axis +110 degrees/-35 degrees
- - Min. -max. Height under spindle 102-610 mm
- - Feedrate 16. 5 m/min.
- - Rapid feedrate 30. 5 m/min.
- - Probing system
- - Programmable coolant nozzle
- - Internal cooling 21 bar
- - High-speed machining
- - Belt-type chip conveyor
Qualitative Machine Benefits:
- - Very good conditions
- - Hard disk 1gb, usb port

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
